Mazda RX-7 FD 1992-01 Mazda Cooling System 01/02 02/02

Mazda parts catalog

Parts > Mazda RX-7 > 1992-01 > Rotary-engine Supplement > Cooling System

Search by part number:

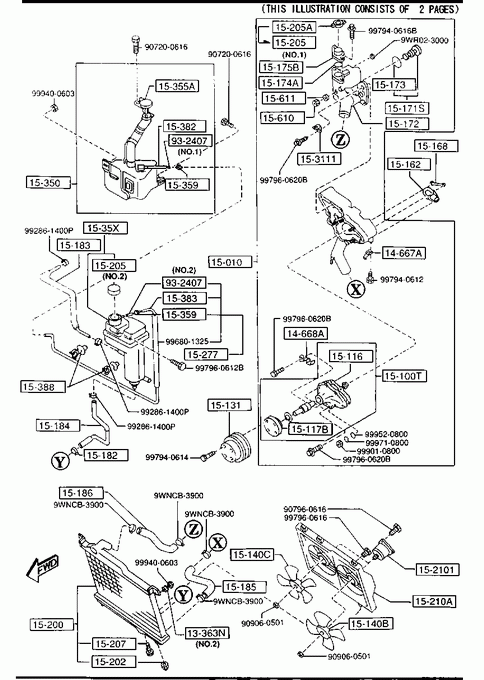

Cooling System
01/02
02/02

» 13363N RUBBER,MOUNTING

Part Number Qty. Specifications Price
022213363 2 AN (B092-61-481)
ILLUST. NO.2
€ 4,21
NF0113363 6 ILLUST. NO.1
€ 4,23

» 14667A CLIP,OIL TUBE

Part Number Qty. Specifications Price
N3A114667 1 A (N3A1-14-667A)
€ 5,35

» 14668A CLIP,M.OIL TUBE

Part Number Qty. Specifications Price
N3A114668 1 A (N3A1-14-668A)
€ 8,95

» 15010 PUMP,WATER

Part Number Qty. Specifications Price
N3A115010C 1 - 920401
FD13B2 -100162 € 325,80
N3A115010D 1 920401 -
FD13B2100162- € 237,58

» 15100T HOUSING SET,BRG WATER PUMP

Part Number Qty. Specifications Price
8AF415100 1 A (8AF4-15-100A)
€ 115,42

» 15116 GASKET,WATER PUMP

Part Number Qty. Specifications Price
N3A115116 1
€ 5,78

» 15117B HUB,W.PUMP PULLEY

Part Number Qty. Specifications Price
KL0115117 1
€ 14,54

» 15131 PULLEY,WATER PUMP

Part Number Qty. Specifications Price
N3A115131 1
€ 24,51

» 15140B FAN(R),COOLING

Part Number Qty. Specifications Price
N3A115140 1
€ 52,18

» 15140C FAN(L),COOLING

Part Number Qty. Specifications Price
N3A215140 1
€ 52,18

» 15162 GASKET

Part Number Qty. Specifications Price
N38615162 1 NON ASBESTOS
€ 3,59

» 15168 SHIM,WATER PIPE BRACKET

Part Number Qty. Specifications Price
N3A115168 1
€ 3,96

» 15171S THERMOSTAT SET

Part Number Qty. Specifications Price
8AF515171 1 AN (8AF6-15-171)
€ 20,96

» 15172 COVER,THERMOSTAT

Part Number Qty. Specifications Price
N3A115172 1 A (N3A1-15-170)
€ 49,32

» 15173 GASKET,THERMOSTAT COVER

Part Number Qty. Specifications Price
N35015173 1 NON ASBESTOS
€ 2,70

» 15174A RING

Part Number Qty. Specifications Price
N32615174 1
€ 3,18

» 15175B BODY,FILLER CAP

Part Number Qty. Specifications Price
N32315175 1 A (N3C1-15-175)
€ 31,61

» 15182 CLAMP,WATER HOSE

Part Number Qty. Specifications Price
N3A115182 1 A (N3A1-15-182A)
- 930201
FD13B2 -100807
N3A115182A 1 930201 -
FD13B2100807-

» 15183 HOSE,WATER

Part Number Qty. Specifications Price
N3A115183 1 A (N3A1-15-183A)
€ 23,07

» 15184 HOSE,WATER

Part Number Qty. Specifications Price
N3A115184A 1
€ 36,90

» 15185 HOSE,WATER

Part Number Qty. Specifications Price
N3A115185A 1 A (N3A1-15-185B)
€ 24,11

» 15186 HOSE,WATER

Part Number Qty. Specifications Price
N3A115186 1 A (N3A1-15-186A)
€ 31,35

» 15200 RADIATOR

Part Number Qty. Specifications Price
N3A115200A 1
€ 453,95

» 15202 RUBBER,MOUNT

Part Number Qty. Specifications Price
JE4815202 2
€ 4,36

» 15205 CAP,RADIATOR

Part Number Qty. Specifications Price
KF0115205 1 ILLUST. NO.1
930510 -
FD13B2100828- € 17,21
N3A115205 1 A (N3A1-15-205A)
ILLUST. NO.2
€ 18,24

» 15205A CAP,WATER INLET-THERMO C.

Part Number Qty. Specifications Price
N32315205 1 CALSONIC
- 930510
FD13B2 -100828 € 16,38

» 15207 COCK,DRAIN

Part Number Qty. Specifications Price
NF0115203 1 CALSONIC
€ 8,27

» 152101 FAN DRIVE

Part Number Qty. Specifications Price
N3A115150 2
€ 245,74

» 15210A COWLING,RADIATOR

Part Number Qty. Specifications Price
N3A215211B 1 A (N3A2-15-211C)
€ 92,30

» 15277 HOSE,WATER SUB TANK

Part Number Qty. Specifications Price
N3A115380C 1
€ 22,94

» 153111 BRACKET

Part Number Qty. Specifications Price
N3A115109 1

» 15350 TANK,SUB-RADIATOR

Part Number Qty. Specifications Price
N3A115350A 1 AN (N3A1-15-350B)
- 920904
FD13B2 -100615 € 109,88
N3A115350B 1 920904 -
FD13B2100615- € 114,32

» 15355A CAP,SUB TANK

Part Number Qty. Specifications Price
N3A115355 1
€ 19,59

» 15359 PIPE,JOINT

Part Number Qty. Specifications Price
N3A115359 2
€ 5,30

» 1535X TANK,AIR SEPARATE

Part Number Qty. Specifications Price
N3A11535XA 1 A (N3A1-15-35XB)
€ 100,61

» 15382 PROTECTOR,HOSE-SUB TANK

Part Number Qty. Specifications Price
F20115382 1
€ 2,16

» 15383 HOSE,SUB TANK

Part Number Qty. Specifications Price
N3A115383 1
€ 7,26

» 15388 CLIP,HOSE

Part Number Qty. Specifications Price
F20115388A 2
€ 1,86

» 15610 SENSOR,WATER LEVEL

Part Number Qty. Specifications Price
N3A115610 1 A (N3A1-15-610A)
€ 60,71

» 15611 GASKET

Part Number Qty. Specifications Price
855315611 1
€ 1,74

» 90730 SCREW & WASHER

Part Number Qty. Specifications Price
907200616 1
€ 1,13

» 90794 BOLT & WASHER,FLANGE

Part Number Qty. Specifications Price
907960616 1
€ 2,37

» 90901 NUT

Part Number Qty. Specifications Price
999010800 1
€ 2,31

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
909060501 1
€ 0,51

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400603 1
€ 2,05

» 932407 HOSE,WATER

Part Number Qty. Specifications Price
9932407200 1 ILLUST. NO.1
€ 2,07
9932407400 1 ILLUST. NO.2

» 99203 WASHER,PLAIN

Part Number Qty. Specifications Price
999520800 1
€ 0,49

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992861400P 1
€ 2,44

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
9WNCB3900 1
€ 3,12

» 99503 PLUG,HEXAGON SOCKET

Part Number Qty. Specifications Price
9WR023000 1
€ 1,64

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940612 1
€ 0,87

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940614 1
€ 1,13

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940616B 1
€ 1,15

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612B 1
€ 0,37

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960620B 1
€ 0,75

» 99971 WASHER,SPRING

Part Number Qty. Specifications Price
999710800 1
€ 1,18

Part Number	Qty.	Specifications	Price
022213363	2	AN (B092-61-481) ILLUST. NO.2	€ 4,21
NF0113363	6	ILLUST. NO.1	€ 4,23

Part Number	Qty.	Specifications	Price
N3A115010C	1	- 920401 FD13B2 -100162	€ 325,80
N3A115010D	1	920401 - FD13B2100162-	€ 237,58

Part Number	Qty.	Specifications	Price
N3A115182	1	A (N3A1-15-182A) - 930201 FD13B2 -100807
N3A115182A	1	930201 - FD13B2100807-
