Cooling System 01/02 02/02

Cooling System |

Mazda parts catalog

Parts > Mazda RX-7 > 1992-01 > Rotary-engine Supplement > Cooling System

Search by part number:

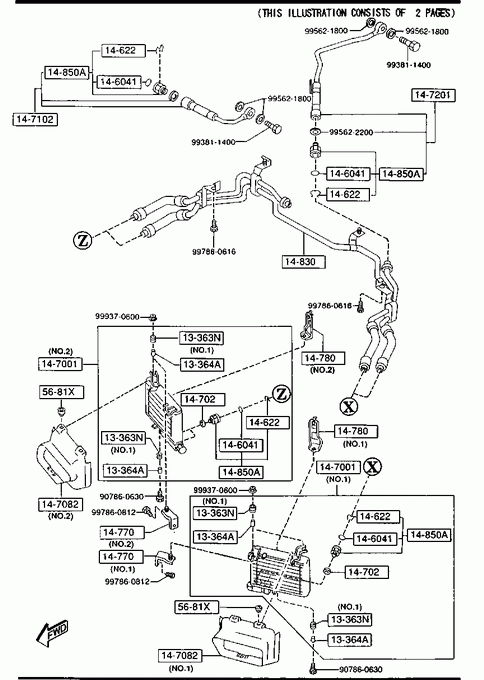

Cooling System

01/02
02/02

RUBBER,MOUNTING

Part Number	Qty.	Specifications	Price
022213363	2	AN (B092-61-481) ILLUST. NO.2	€ 4,21
NF0113363	6	ILLUST. NO.1	€ 4,23

» 13364A

SPACER

Part Number	Qty.	Specifications	Price
NF0113364	6		€ 2,65

» 146041

RING,'O'

Part Number	Qty.	Specifications	Price
N3A114604	6		€ 8,21

» 14622

STOPPER,CONNECTOR

Part Number	Qty.	Specifications	Price
N3A114622	6		€ 10,21

» 147001

COOLER,OIL

Part Number	Qty.	Specifications	Price
N3A114700	1	AN (N3A1-14-700A) ILLUST. NO.1	€ 713,95
N3A314700	1	AN (N3A3-14-700A) ILLUST. NO.2	€ 713,95

» 14702

GASKET

Part Number	Qty.	Specifications	Price
N3A114702	4		€ 10,72

» 147082

DUCT,OIL COOLER

Part Number	Qty.	Specifications	Price
N3A114708	1	ILLUST. NO.1	€ 49,98
N3A214708	1	ILLUST. NO.2	€ 46,29

» 147102

HOSE,OIL

Part Number	Qty.	Specifications	Price
N3A114710B	1	A (N3A1-14-710C)	€ 102,75

» 147201

HOSE,OIL

Part Number	Qty.	Specifications	Price
N3A114720B	1	AN (N3A1-14-720C)	€ 160,50

» 14770

BRACKET,OIL COOLER

Part Number	Qty.	Specifications	Price
N3A114770A	1	A (N3A1-14-770B) ILLUST. NO.1 - 920401 FD13B2 -100162
N3A114770B	1	ILLUST. NO.1 920401 - FD13B2100162-	€ 16,93
N3A214770A	1	A (N3A2-14-770B) ILLUST. NO.2 - 920401 FD13B2 -100162	€ 16,93
N3A214770B	1	ILLUST. NO.2 920401 - FD13B2100162-	€ 17,27

» 14780

BRACKET,OIL COOLER

Part Number	Qty.	Specifications	Price
N3A114780B	1	ILLUST. NO.1	€ 45,08
N3A214780B	1	ILLUST. NO.2	€ 42,90

» 14830

HOSE,OIL

Part Number	Qty.	Specifications	Price
N3A314830A	1		€ 365,60

» 14850A

CONNECTOR,OIL COOLER

Part Number	Qty.	Specifications	Price
N3A114850	6	AN (N3G1-14-850)	€ 29,51

» 5681X

FASTENER,DUCT PANEL

Part Number	Qty.	Specifications	Price
FB015681X	6		€ 1,87

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860630	1		€ 1,80

» 90901

NUT

Part Number	Qty.	Specifications	Price
999370600	1		€ 3,66

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860616	1		€ 1,54

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860812	1		€ 1,36

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993811400	1		€ 3,17

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621800	1		€ 0,19

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995622200	1		€ 3,03
