Seats 01/03 (SEAT MATERIAL) 02/03 (PASSENGER SIDE) 03/03 (DRIVER SIDE)

Seats |

Mazda parts catalog

Parts > Mazda MX-5 > 2003-09 > Body Interior Trim > Seats

Search by part number:

Seats

01/03 (SEAT MATERIAL)
02/03 (PASSENGER SIDE)

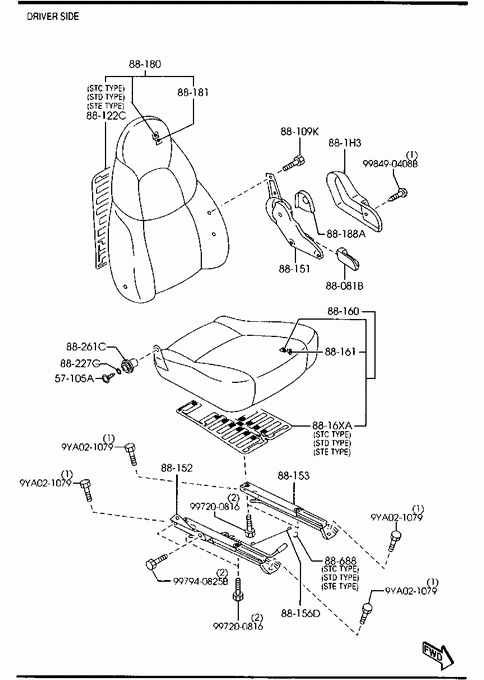

03/03 (DRIVER SIDE)

BOLT,HINGE

Part Number	Qty.	Specifications	Price
NC1088063	2		€ 2,83

» 88081B

KNOB(L),KNUCKLE

Part Number	Qty.	Specifications	Price
N066881H5	1

» 88109K

SCREW,KNUCKLE

Part Number	Qty.	Specifications	Price
H26088109	8		€ 3,10

» 88122C

HEATER,SEAT BACK

Part Number	Qty.	Specifications	Price
NC8488122	1	STC TYPE STD TYPE STE TYPE	€ 92,75

» 88151

KNUCKLE(L),RECLINING

Part Number	Qty.	Specifications	Price
N06688155A	1		€ 154,40

» 88152

ADJUSTER NO.3

Part Number	Qty.	Specifications	Price
N06688152	1		€ 111,07

» 88153

ADJUSTER NO.4

Part Number	Qty.	Specifications	Price
N06688153	1		€ 75,75

» 88156D

WIRE,CONNECT

Part Number	Qty.	Specifications	Price
NA0188156	1		€ 1,84

» 88160

CUSHION(L),FRT SEAT

Part Number	Qty.	Specifications	Price
NE0188160	1	STA TYPE 031001 - 040901 NB18400663-413680**
NE0188160A	1	STA TYPE 040901 - NB18413680-**
NE1288160	1	STA TYPE - 031001 NB18 -400663**
NE1488160	1	STC TYPE
NE1688160	1	STD TYPE STE TYPE 031101 - NB18402749-**

» 88161

TRIM(L),SEAT CUSHION

Part Number	Qty.	Specifications	Price
NE0188161	1	STA TYPE 031001 - 040901 NB18400663-413680**
NE0188161A	1	STA TYPE 040901 - NB18413680-**
NE1288161	1	STA TYPE - 031001 NB18 -400663**
NE1488161	1	STC TYPE
NE1688161	1	STD TYPE STE TYPE 031101 - NB18402749-**

» 8816XA

HEATER&PAD(L),CUSHION

Part Number	Qty.	Specifications	Price
ND448816X	1	STC TYPE STD TYPE STE TYPE	€ 262,72

» 88180

BACK(L),FRONT SEAT

Part Number	Qty.	Specifications	Price
NE0188180	1	STA TYPE - 040901 NB18 -413680**
NE0188180A	1	STA TYPE 040901 - NB18413680-**
NE1488180	1	STC TYPE
NE1688180	1	STD TYPE STE TYPE 031101 - NB18402749-**

» 88181

TRIM(L),SEAT BACK

Part Number	Qty.	Specifications	Price
NE0188181	1	STA TYPE - 040901 NB18 -413680**
NE0188181A	1	STA TYPE 040901 - NB18413680-**
NE0288181	1	STC TYPE 031001 - NB18400663-**
NE1488181	1	STC TYPE - 031001 NB18 -400663**
NE1688181	1	STD TYPE STE TYPE 031101 - NB18402749-**

» 88188A

COVER(L),HINGE

Part Number	Qty.	Specifications	Price
N06688085	1

» 881H3

COVER NO.4,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
N066881H3	1

» 88227G

SILENCER

Part Number	Qty.	Specifications	Price
NC1088049	2		€ 1,38

» 88261C

LEVER,RELEASE

Part Number	Qty.	Specifications	Price
NA7588108	2		€ 2,72

» 88688

CLIP

Part Number	Qty.	Specifications	Price
G22388688	1	STC TYPE STD TYPE STE TYPE	€ 1,33

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998490408B	1		€ 1,89

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200816	1		€ 1,22

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997940825B	1		€ 1,41

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021079	1		€ 1,69
