Seats 01/03 (SEAT MATERIAL) 02/03 (PASSENGER SIDE) 03/03 (DRIVER SIDE)

Seats |

Mazda parts catalog

Parts > Mazda MX-5 > 2003-09 > Body Interior Trim > Seats

Search by part number:

Seats

01/03 (SEAT MATERIAL)

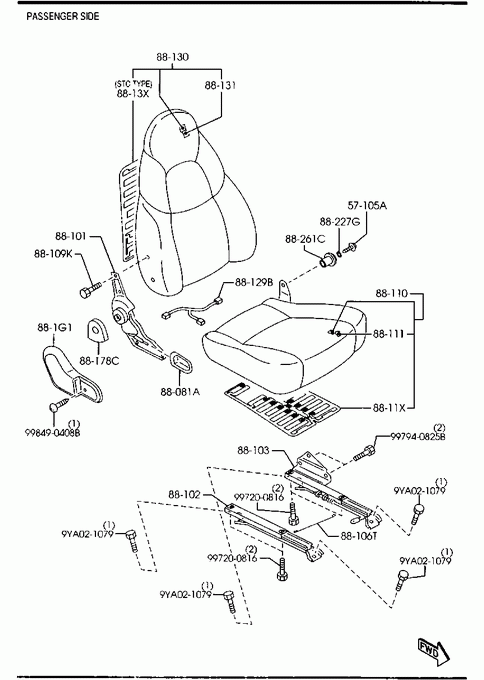

02/03 (PASSENGER SIDE)
03/03 (DRIVER SIDE)

BOLT,HINGE

Part Number	Qty.	Specifications	Price
NC1088063	2		€ 2,83

» 88081A

KNOB(R),KNUCKLE

Part Number	Qty.	Specifications	Price
N066881G5	1

» 88101

KNUCKLE(R),RECLINING

Part Number	Qty.	Specifications	Price
N06688101A	1		€ 101,72

» 88102

ADJUSTER,NO.1

Part Number	Qty.	Specifications	Price
N06688102	1		€ 70,93

» 88103

ADJUSTER,NO.2

Part Number	Qty.	Specifications	Price
N06688103	1		€ 137,81

» 88106T

WIRE,CONNECT

Part Number	Qty.	Specifications	Price
NA0188106	1		€ 1,84

» 88109K

SCREW,KNUCKLE

Part Number	Qty.	Specifications	Price
H26088109	8		€ 3,10

» 88110

CUSHION(R),FRT SEAT

Part Number	Qty.	Specifications	Price
NE0188110	1	(STA TYPE>W/O AIR BAG CUT SYSTEM) 031001 - 040901 NB18400663-413680**
NE0188110A	1	(STA TYPE>W/O AIR BAG CUT SYSTEM) 040901 - NB18413680-**
NE1288110	1	(STA TYPE>W/O AIR BAG CUT SYSTEM) - 031001 NB18 -400663**
NE1388110	1	(STA TYPE>W/AIR BAG CUT SYSTEM) - 040901 NB18 -413680**
NE1388110A	1	(STA TYPE>W/AIR BAG CUT SYSTEM) 040901 - NB18413680-**
NE1488110	1	STC TYPE
NE1688110	1	STD TYPE STE TYPE 031101 - NB18402749-**

» 88111

TRIM(R),SEAT CUSHION

Part Number	Qty.	Specifications	Price
NE0188111	1	(STA TYPE>W/O AIR BAG CUT SYSTEM) 031001 - 040901 NB18400663-413680**
NE0188111A	1	(STA TYPE>W/O AIR BAG CUT SYSTEM) 040901 - NB18413680-**
NE1288111	1	(STA TYPE>W/O AIR BAG CUT SYSTEM) - 031001 NB18 -400663**
NE1388111	1	(STA TYPE>W/AIR BAG CUT SYSTEM) - 040901 NB18 -413680**
NE1388111A	1	(STA TYPE>W/AIR BAG CUT SYSTEM) 040901 - NB18413680-**
NE1488111	1	STC TYPE
NE1688111	1	STD TYPE STE TYPE 031101 - NB18402749-**

» 8811X

SENSOR(R),SEAT CUSHION

Part Number	Qty.	Specifications	Price
ND428811X	1	(STA TYPE>W/AIR BAG CUT SYSTEM)	€ 526,68
ND448811X	1	STC TYPE STD TYPE STE TYPE	€ 640,85

» 88129B

CORD,SHORT

Part Number	Qty.	Specifications	Price
NC8288129	1	(STA TYPE>W/AIR BAG CUT SYSTEM)	€ 14,78

» 88130

BACK(R),FRONT SEAT

Part Number	Qty.	Specifications	Price
NE1288130	1	STA TYPE - 040901 NB18 -413680**
NE1288130A	1	STA TYPE 040901 - NB18413680-**
NE1488130	1	STC TYPE
NE1688130	1	STD TYPE STE TYPE 031101 - NB18402749-**

» 88131

TRIM(R),SEAT BACK

Part Number	Qty.	Specifications	Price
NE1288131	1	STA TYPE - 040901 NB18 -413680**
NE1288131A	1	STA TYPE 040901 - NB18413680-**
NE1488131	1	STC TYPE
NE1688131	1	STD TYPE STE TYPE 031101 - NB18402749-**

» 8813X

HEATER&PAD(R),BACK

Part Number	Qty.	Specifications	Price
ND448813X	1	STC TYPE STD TYPE STE TYPE	€ 232,31

» 88178C

COVER(R),HINGE

Part Number	Qty.	Specifications	Price
N06688035	1

» 881G1

COVER NO.1,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
N066881G1	1

» 88227G

SILENCER

Part Number	Qty.	Specifications	Price
NC1088049	2		€ 1,38

» 88261C

LEVER,RELEASE

Part Number	Qty.	Specifications	Price
NA7588108	2		€ 2,72

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998490408B	1		€ 1,89

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200816	1		€ 1,22

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997940825B	1		€ 1,41

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021079	1		€ 1,69
