Air Conditioner 01/05 (PIPE & CONDENSER) ((OPTION)>(-4901)) 02/05 (PIPE & CONDENSER) ((STD.)>(-4901)) 03/05 (PIPE & CONDENSER) ((OPTION)>(4901-)) 04/05 (PIPE & CONDENSER) ((STD.)>(4901-)) 05/05 (BRACKET & CLIP)

Air Conditioner |

Mazda parts catalog

Parts > Mazda MX-5 > 2003-09 > Body Dashboard > Air Conditioner

Search by part number:

Air Conditioner
01/05 (PIPE & CONDENSER) ((OPTION)>(-4901))
02/05 (PIPE & CONDENSER) ((STD.)>(-4901))
03/05 (PIPE & CONDENSER) ((OPTION)>(4901-))
04/05 (PIPE & CONDENSER) ((STD.)>(4901-))

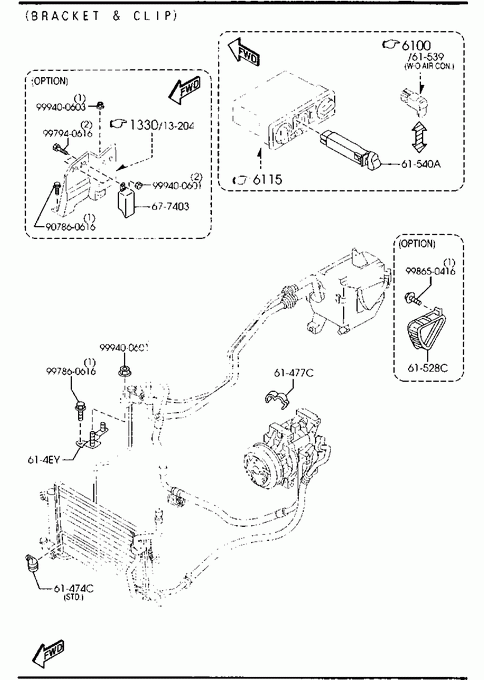

05/05 (BRACKET & CLIP)

» 61474C CLIP

Part Number Qty. Specifications Price
NC7361474 1 STD.

» 61477C CLIP

Part Number Qty. Specifications Price
B02A61477 1
€ 2,00

» 614EY BRACKET

Part Number Qty. Specifications Price
NC72614EXA 1
€ 4,93

» 61528C PLATE,SEAL

Part Number Qty. Specifications Price
NC7261527A 1 OPTION
€ 15,60

» 61540A SWITCH,AIR CON.

Part Number Qty. Specifications Price
GE4T61530B 1
€ 27,41

» 677403 RELAY,N.O.

Part Number Qty. Specifications Price
H31067740 2 30A
OPTION
€ 27,53

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860616 1
€ 2,41

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601 1
€ 1,28

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400603 1
€ 2,05

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860616 1
€ 1,54

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998650416 1
€ 0,42

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940616 1
€ 1,28
