Air Conditioner

01/05 (PIPE & CONDENSER) ((OPTION)>(-4901))
02/05 (PIPE & CONDENSER) ((STD.)>(-4901))
03/05 (PIPE & CONDENSER) ((OPTION)>(4901-))

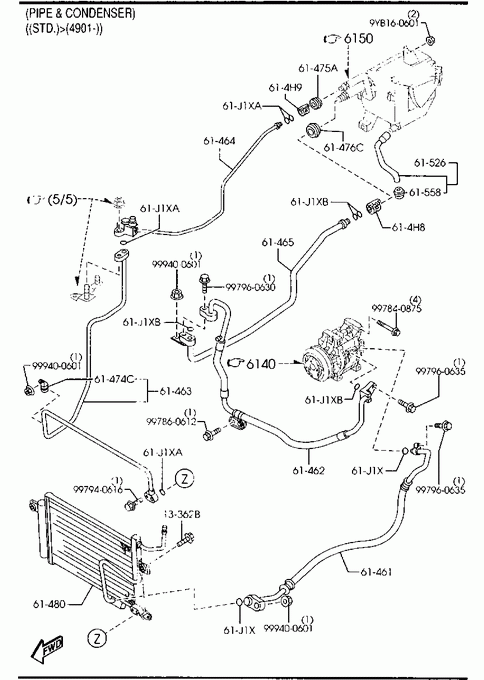

04/05 (PIPE & CONDENSER) ((STD.)>(4901-))
05/05 (BRACKET & CLIP)

» 13362B

BOLT

Part Number	Qty.	Specifications	Price
R20513362	2		€ 0,93

» 61461

HOSE,FLEXIBLE-HIGH

Part Number	Qty.	Specifications	Price
N10161461	1		€ 119,71

» 61462

HOSE,FLEXIBLE-LOW

Part Number	Qty.	Specifications	Price
NE01614T0	1	AN (NE01-61-4T0A)	€ 156,58

» 61463

PIPE NO.1,COOLER

Part Number	Qty.	Specifications	Price
NC7261464A	1	OPTION	€ 56,73
NC7361464	1	STD. - 040901 NB18 -413680**	€ 85,95
NE016146Z	1	STD. 040901 - NB18413680-**	€ 107,11

» 61464

PIPE NO.2,COOLER

Part Number	Qty.	Specifications	Price
NC7261465A	1		€ 205,95

» 61465

PIPE NO.3,COOLER

Part Number	Qty.	Specifications	Price
NC726146ZC	1	A (NC72-61-46ZD) - 031212 NB18 -405652**
NC726146ZD	1	AN (NC72-61-46ZE) 031212 - 040113 NB18405652-407358**
NC726146ZE	1	040113 - NB18407358-**	€ 83,30

» 61474C

CLIP

Part Number	Qty.	Specifications	Price
NC7361474	1	STD.

» 61475A

GROMMET

Part Number	Qty.	Specifications	Price
B09261475	1		€ 4,01

» 61476C

GROMMET

Part Number	Qty.	Specifications	Price
B09261476A	1		€ 4,01

» 61480

CONDENSER

Part Number	Qty.	Specifications	Price
NC7261480C	1	OPTION - 040901 NB18 -413680**	€ 698,24
NC7261480D	1	OPTION 040901 - NB18413680-**	€ 687,39
NC7361480B	1	STD. - 040901 NB18 -413680**	€ 698,24
NC7361480C	1	STD. 040901 - NB18413680-**	€ 687,38

» 614H8

CLIP

Part Number	Qty.	Specifications	Price
NC72614H5	1		€ 7,42

» 614H9

CLIP

Part Number	Qty.	Specifications	Price
NC73614H5	1		€ 7,42

» 61526

HOSE,DRAIN

Part Number	Qty.	Specifications	Price
NC726152X	1		€ 24,01

» 61558

GROMMET,UNIT-COOLING

Part Number	Qty.	Specifications	Price
LB4661558A	1		€ 6,39

» 61J1X

RING,'O'-NO.1

Part Number	Qty.	Specifications	Price
W25761J17	3	- 040901 NB18 -413680**	€ 1,76

» 61J1XA

RING,'O'-NO.2

Part Number	Qty.	Specifications	Price
W32661J17	5	OPTION	€ 1,76

» 61J1XB

RING,'O'-NO.3

Part Number	Qty.	Specifications	Price
W32961J17	4		€ 1,92

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997840875	1		€ 1,25

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB160601	1		€ 3,37

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960630	1		€ 1,39

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960635	1		€ 1,24
