Mazda MAZDA 6 GG 2005-03 Mazda Cooling System 01/02 02/02

Mazda parts catalog

Parts > MAZDA 6 > 2005-03 > Gasoline-engine 4-cylinder Supplement > Cooling System(gasoline)(2300cc)

Search by part number:

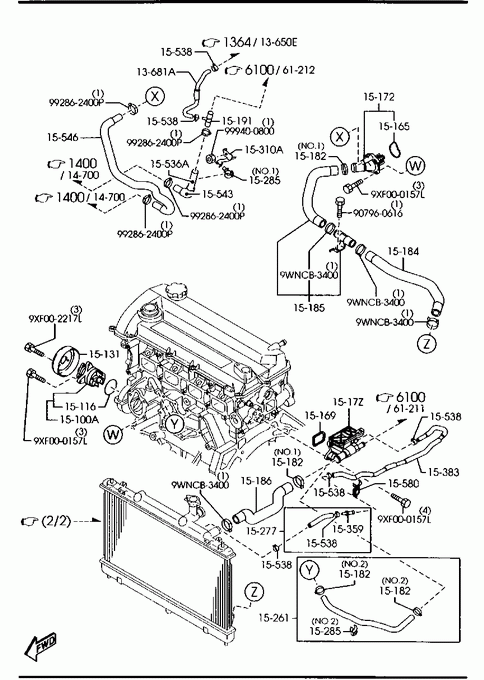

Cooling System(gasoline)(2300cc)

01/02
02/02

HOSE,WATER

Part Number	Qty.	Specifications	Price
L32113681C	1		€ 10,87

» 15100A

HOUSING,WATER PUMP

Part Number	Qty.	Specifications	Price
LF9415100	1	AN (LF94-15-100A) - 060201 GG1* -649848**	€ 137,90
LF9415100A	1	060201 - GG1649848-*	€ 133,10

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
LF0115116	1	AN (LF01-15-116A) - 060201 GG1* -649848**	€ 3,45
LF0115116A	1	060201 - GG1649848-*	€ 5,04

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
L32715131	1		€ 15,74

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
LF0215165	1	- 061101 GG1* -688820**	€ 12,93
LF0315165A	1	061101 - GG1688820-*

» 15169

GASKET,WATER OUTLET

Part Number	Qty.	Specifications	Price
LF9415169	1		€ 4,39

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
L32715170A	1	AN (L328-15-170A) - 061101 GG1* -688820**	€ 71,96
L32815170A	1	AN (L328-15-170B) 061101 - 070216 GG1688820-706300*	€ 50,48
L33615170	1	070216 - GG1706300-*

» 1517Z

OUTLET,WATER

Part Number	Qty.	Specifications	Price
LF941517Z	1		€ 60,25

» 15182

CLAMP,WATER HOSE

Part Number	Qty.	Specifications	Price
AJ5115182	2	ILLUST. NO.1	€ 6,41
LF0715182	2	ILLUST. NO.2	€ 2,72

» 15184

HOSE,WATER

Part Number	Qty.	Specifications	Price
LF1715184D	1		€ 27,53

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
LF171518YB	1	A (LF17-15-18YC) - 061103 GG1* -689231**	€ 32,69
LF171518YC	1	061103 - GG1689231-*

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
LFH115186	1		€ 15,05

» 15191

CLIP,W.BY-PASS HOSE

Part Number	Qty.	Specifications	Price
LF1715191	1		€ 14,05

» 15261

HOSE,BYPASS

Part Number	Qty.	Specifications	Price
L3G615260A	1

» 15277

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
LFH115380	1		€ 8,21

» 15285

CLIP

Part Number	Qty.	Specifications	Price
L30915285	1	ILLUST. NO.2
LF1715285A	1	ILLUST. NO.1	€ 2,21

» 15310A

BRACKET,WATER PIPE

Part Number	Qty.	Specifications	Price
LF1715311A	1	AN (LF17-15-311B) - 060701 GG1* -671946**
LF1715311B	1	060701 - GG1671946-*

» 15359

PIPE,JOINT

Part Number	Qty.	Specifications	Price
N3A115359	1		€ 5,30

» 15383

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
LFH215383	1		€ 39,66

» 15536A

HOSE,WATER

Part Number	Qty.	Specifications	Price
LF1715536	1		€ 9,25

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B6BF15538	6		€ 2,10

» 15543

PROTECTOR,WATER HOSE

Part Number	Qty.	Specifications	Price
LF1715543	1		€ 6,92

» 15546

HOSE,WATER-OIL COOLER

Part Number	Qty.	Specifications	Price
L32215546	1		€ 39,24

» 15580

CLIP,WATER HOSE

Part Number	Qty.	Specifications	Price
L32115580	1

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907960616	1		€ 2,37

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
9XF002217L	1

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862400P	1		€ 2,42

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3400	1		€ 4,02

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XF000157L	1		€ 5,30

Cooling System(gasoline)(2300cc)
