Mazda MAZDA 3 BK 2006-03 Mazda Floor Attachments 01/02 02/02

Mazda parts catalog

Parts > MAZDA 3 > 2006-03 > Body Exterior Trim > Floor Attachments(5-door)

Search by part number:

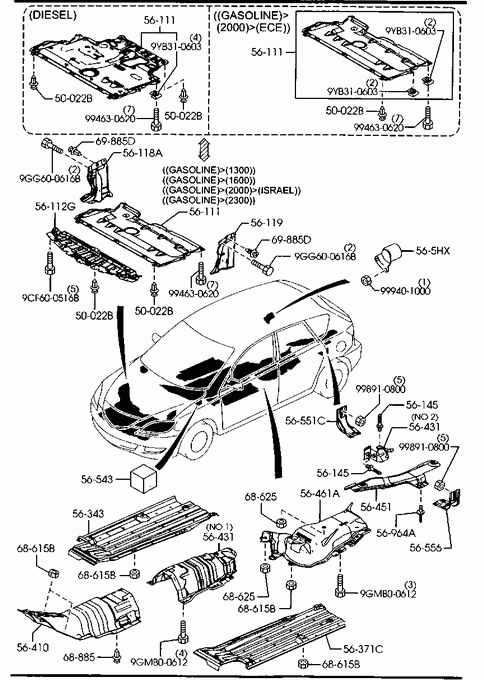

Floor Attachments(5-door)

01/02
02/02

FASTENER

Part Number	Qty.	Specifications	Price
GD7A50EA1	5	DIESEL	€ 1,32

» 56111

COVER,UNDER

Part Number	Qty.	Specifications	Price
BP4K56111L	1	AN (BP4K-56-111M) (GASOLINE>1300) (GASOLINE>1600) (GASOLINE>2000>ISRAEL) (GASOLINE>2300) - 070101 BK1* -586430**	€ 119,40
BP4K56111M	1	(GASOLINE>1300) (GASOLINE>1600) (GASOLINE>2000>ISRAEL) (GASOLINE>2300) 070101 - BK1586430-*	€ 119,40
BP8F56110D	1	AN (BP8F-56-110E) DIESEL - 061017 BK1* -560875**	€ 179,29
BP8F56110E	1	AN (BP8F-56-110F) DIESEL 061017 - 070101 BK1560875-586430*	€ 202,87
BP8F56110F	1	DIESEL 070101 - BK1586430-*	€ 202,87
BR5D56110	1	AN (BR5D-56-110A) (GASOLINE>2000>ECE) - 070101 BK1* -586430**	€ 219,58
BR5D56110A	1	(GASOLINE>2000>ECE) 070101 - BK1586430-*	€ 223,97

» 56112G

COVER'B',UNDER

Part Number	Qty.	Specifications	Price
BP4K56112	1		€ 20,18

» 56118A

SHIELD(R),SPLASH

Part Number	Qty.	Specifications	Price
BP4K56114D	1		€ 11,12

» 56119

SHIELD(L),SPLASH

Part Number	Qty.	Specifications	Price
BP4K56115F	1		€ 10,84

» 56145

FASTENER,SCREW

Part Number	Qty.	Specifications	Price
BP4K56398	2

» 56343

COVER NO.1,UNDER

Part Number	Qty.	Specifications	Price
BR5S56343B	1	AN (BR5S-56-343C) (GASOLINE>ECE) - 060601 BK1* -517146**	€ 41,84
BR5S56343C	1	A (BR5S-56-343D) (GASOLINE>ECE) 060601 - 060920 BK1517146-553265*	€ 42,55
BR5S56343D	1	(GASOLINE>ECE) (DIESEL>ECE>2000) 060920 - BK1553265-*	€ 41,10

» 56371C

COVER NO.2,UNDER

Part Number	Qty.	Specifications	Price
BR5G56371	1	(GASOLINE>ECE>2300)
BR5S56371B	1	AN (BR5S-56-371C) (GASOLINE>ECE>1300) (GASOLINE>ECE>1600) (GASOLINE>ECE>2000) - 060601 BK1* -517146**	€ 41,84
BR5S56371C	1	A (BR5S-56-371D) (GASOLINE>ECE) 060601 - 061004 BK1517146-557644*	€ 43,40
BR5S56371D	1	(GASOLINE>ECE) (DIESEL>ECE>2000) 061004 - BK1557644-*

» 56410

INSULATOR,HEAT-FRONT

Part Number	Qty.	Specifications	Price
BBL356442A	1	(DIESEL>2000)
BP4K56442E	1	GASOLINE	€ 97,36
BR1M56442	1	A (BR1M-56-442A) (DIESEL>1600) - 070301 BK1* -605425**	€ 153,12
BR1M56442A	1	(DIESEL>1600) 070301 - BK1605425-*

» 56431

INSULATOR,HEAT

Part Number	Qty.	Specifications	Price
BP4K56441E	1	ILLUST. NO.1	€ 32,19
BP4K56453G	1	A (BP4K-56-453H) ILLUST. NO.2 - 070601 BK1* -636149**
BP4K56453H	1	ILLUST. NO.2 070601 - BK1636149-*

» 56451

INSULATOR

Part Number	Qty.	Specifications	Price
BP4K56451D	1		€ 30,37

» 56461A

INSULATOR,REAR

Part Number	Qty.	Specifications	Price
BP4K56452C	1		€ 42,59

» 56543

INSULATOR

Part Number	Qty.	Specifications	Price
BR1M56513A	2	DIESEL

» 56551C

BRACE(R),DIAGONAL

Part Number	Qty.	Specifications	Price
B37F56551A	1	(GASOLINE>2300)

» 56556

BRACE(L),DIAGONAL

Part Number	Qty.	Specifications	Price
B37F56556A	1	(GASOLINE>2300)

» 565HX

DAMPER,DYNAMIC

Part Number	Qty.	Specifications	Price
BP4K565HXA	1

» 56964A

RIVET,SEAL PLATE-SHROUD

Part Number	Qty.	Specifications	Price
B25D56398	4		€ 0,57

» 68615B

NUT,FLANGE-CAP

Part Number	Qty.	Specifications	Price
B10068615	19	(GASOLINE>ECE)	€ 0,93

» 68625

NUT,CAP

Part Number	Qty.	Specifications	Price
B00168625	2	AN (B001-56-375)	€ 1,20

» 68885

FASTENER

Part Number	Qty.	Specifications	Price
GJ6A68885	2		€ 1,17

» 69885D

FASTENER

Part Number	Qty.	Specifications	Price
NA0156145	2		€ 1,90

» 90720

SCREW

Part Number	Qty.	Specifications	Price
994630620	1		€ 1,15

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998910800	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
9GMB00612	1

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB310603	1		€ 4,37

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401000	1		€ 0,88

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9GG600616B	1		€ 0,81

Floor Attachments(5-door)
