Floor Attachments 01/02 02/02

Floor Attachments |

Mazda parts catalog

Parts > MAZDA 3 > 2006-03 > Body Exterior Trim > Floor Attachments

Search by part number:

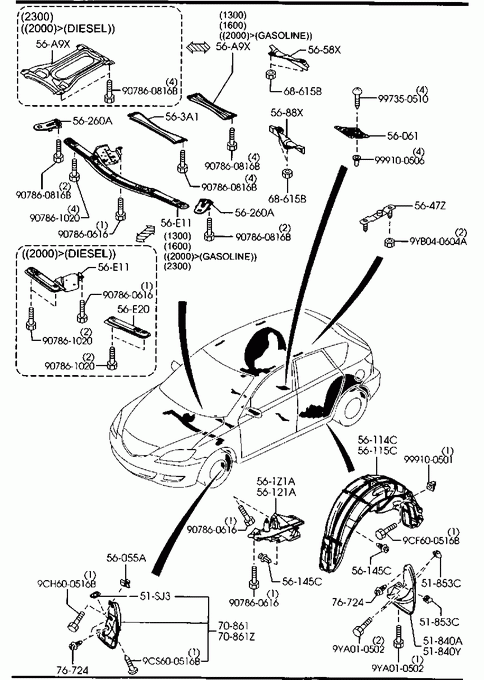

Floor Attachments(5-door)

01/02
02/02

FLAP(R),REAR

Part Number	Qty.	Specifications	Price
BR5S51871	1	W/F.MUD FLAP-STD,W/R.MUD FLAP 1300 1600 2000 W/F.MUD FLAP-SMALL, W/R.MUD FLAP	€ 26,94

» 51840Y

FLAP(L),REAR

Part Number	Qty.	Specifications	Price
BR5S51881	1	W/F.MUD FLAP-STD,W/R.MUD FLAP 1300 1600 2000 W/F.MUD FLAP-SMALL, W/R.MUD FLAP

» 51853C

NUT,CLIP

Part Number	Qty.	Specifications	Price
B09251861	6	W/F.MUD FLAP-STD,W/R.MUD FLAP 1300 1600 2000 W/F.MUD FLAP-SMALL, W/R.MUD FLAP	€ 2,83

» 51SJ3

CLIP

Part Number	Qty.	Specifications	Price
BP4K51SJ3	2	W/MUD FLAP	€ 3,96

» 56055A

GROMMET

Part Number	Qty.	Specifications	Price
GJ6E51832A	2		€ 0,91

» 56061

COVER,SERVICE HOLE

Part Number	Qty.	Specifications	Price
BP4K56070	1		€ 7,96

» 56114C

GUARD(R),MUD-REAR

Part Number	Qty.	Specifications	Price
BP4K561H1E	1	AN (BP4K-56-1H1F) W/O REAR MUD GUARD REINF - 060718 BK1* -536183**	€ 66,06
BP4K561H1F	1	W/O REAR MUD GUARD REINF 060718 - BK1536183-*	€ 66,06
BP4L561H1B	1	AN (BP4L-56-1H1C) W/REAR MUD GUARD REINF - 060718 BK1* -536183**	€ 88,41
BP4L561H1C	1	W/REAR MUD GUARD REINF 060718 - BK1536183-*	€ 90,18

» 56115C

GUARD(L),MUD-REAR

Part Number	Qty.	Specifications	Price
BP4K561J1E	1	AN (BP4K-56-1J1F) W/O REAR MUD GUARD REINF - 060718 BK1* -536183**	€ 64,67
BP4K561J1F	1	W/O REAR MUD GUARD REINF 060718 - BK1536183-*	€ 65,96
BP4L561J1B	1	AN (BP4L-56-1J1C) W/REAR MUD GUARD REINF - 060718 BK1* -536183**	€ 88,41
BP4L561J1C	1	W/REAR MUD GUARD REINF 060718 - BK1536183-*	€ 90,18

» 56121A

COVER(L),UNDER

Part Number	Qty.	Specifications	Price
BP4K56121C	1		€ 16,89

» 56145C

CLIP,MUD GUARD

Part Number	Qty.	Specifications	Price
BC1D56145	12		€ 0,64

» 561Z1A

COVER(R),UNDER

Part Number	Qty.	Specifications	Price
BP0S561Z1A	1	ISRAEL
BP4K561Z1C	1	ECE	€ 16,37

» 56260A

BRACKET

Part Number	Qty.	Specifications	Price
B36D56H21	2	060531 - BK1516688-*
BP4K56H21A	2	- 060531 BK1* -516688**	€ 24,46

» 563A1

MEMBER'A',TUNNEL

Part Number	Qty.	Specifications	Price
BP4K563A1B	1	1300 1600 (2000>GASOLINE)	€ 11,45

» 5647Z

BRACKET,ROOF CARRIER

Part Number	Qty.	Specifications	Price
GJ6A5647ZB	4	AN (GJ6A-56-47ZC) - 071001	€ 6,99
GJ6A5647ZE	4	071001 -

» 5658X

PLATE(R),SEAL

Part Number	Qty.	Specifications	Price
BP4K5658XB	1	(GASOLINE>ISRAEL) (DIESEL>ECE>1600)	€ 21,23

» 5688X

PLATE(L),SEAL

Part Number	Qty.	Specifications	Price
BP4K5688XB	1	(GASOLINE>ISRAEL) (DIESEL>ECE>1600)	€ 21,64

» 56A9X

BAR,BRACE

Part Number	Qty.	Specifications	Price
B37F56A9XB	1	AN (B37F-56-A9XC) 2300 - 060901 BK1* -547059**
B37F56A9XC	1	AN (B37F-56-A9XD) 2300 (2000>DIESEL) 060901 - BK1547059-*
BP4K56A91B	1	1300 1600 (2000>GASOLINE)	€ 8,27

» 56E11

MEMBER,CROSS

Part Number	Qty.	Specifications	Price
BAR756E10A	1	A (BAR7-56-E10B) 1300 1600 (2000>GASOLINE) 060808 - 070801 BK1542474-659123*
BAR756E10B	1	1300 1600 (2000>GASOLINE) 070801 - BK1659123-*
BR5G56E10	1	A (BR5G-56-E10A) 2300 060808 - 070808 BK1542474-661790*
BR5G56E10A	1	2300 070808 - BK1661790-*
C23556E10C	1	AN (C235-56-E10D) 1300 1600 (2000>GASOLINE) - 060808 BK1* -542474**	€ 76,45
CC3056E10C	1	C (CC30-56-E10D) (2000>DIESEL) - 070801 BK1* -659123**
CC3056E10D	1	(2000>DIESEL) 070801 - BK1659123-*

» 56E20

MEMBER,CROSS

Part Number	Qty.	Specifications	Price
CC3056E20B	1	A (CC30-56-E20C) (2000>DIESEL) - 061201
CC3056E20C	1	C (CC30-56-E20D) (2000>DIESEL) 061201 - 070801 BK1* -659123**	€ 13,26
CC3056E20D	1	(2000>DIESEL) 070801 - BK1659123-*

» 68615B

NUT,FLANGE-CAP

Part Number	Qty.	Specifications	Price
B10068615	19	(GASOLINE>ECE)	€ 0,93

» 70861

FLAP(R),FRONT

Part Number	Qty.	Specifications	Price
BP4K51840A	1	W/F.MUD FLAP-STD,W/R.MUD FLAP W/F.MUD FLAP-STD, W/O R.MUD FLAP	€ 26,11
BR5S51840A	1	W/F.MUD FLAP-SMALL, W/O R.MUD FLAP W/F.MUD FLAP-SMALL, W/R.MUD FLAP 060901 - BK1547059-*	€ 20,80

» 70861Z

FLAP(L),FRONT

Part Number	Qty.	Specifications	Price
BP4K51850A	1	W/F.MUD FLAP-STD,W/R.MUD FLAP W/F.MUD FLAP-STD, W/O R.MUD FLAP	€ 26,11
BR5S51850A	1	W/F.MUD FLAP-SMALL, W/O R.MUD FLAP W/F.MUD FLAP-SMALL, W/R.MUD FLAP 060901 - BK1547059-*	€ 20,80

» 76724

RIVET

Part Number	Qty.	Specifications	Price
B09251833	6	W/F.MUD FLAP-STD,W/R.MUD FLAP W/F.MUD FLAP-SMALL, W/R.MUD FLAP	€ 1,54

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CH600516B	1		€ 1,90

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816B	1		€ 1,53

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907861020	1		€ 2,78

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB040604A	1		€ 1,10

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997350510	1		€ 0,62

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9CS600516B	1		€ 0,73

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9YA010502	1		€ 2,63

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100506	1		€ 2,12

Floor Attachments(5-door)
