Mazda MAZDA 3 BK 2003-06 Mazda Floor Attachments 01/02 02/02

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Exterior Trim > Floor Attachments

Search by part number:

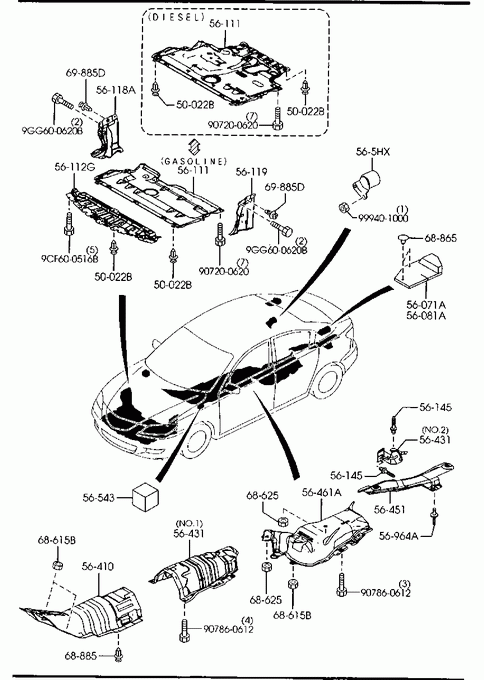

Floor Attachments

01/02
02/02

FASTENER

Part Number	Qty.	Specifications	Price
GD7A50EA1	5	DIESEL	€ 1,32

» 56071A

COVER(R),PACKAGE

Part Number	Qty.	Specifications	Price
BN8V56065A	1	4-DOOR

» 56081A

COVER(L),PACKAGE

Part Number	Qty.	Specifications	Price
BN8V56181A	1	4-DOOR	€ 7,15

» 56111

COVER,UNDER

Part Number	Qty.	Specifications	Price
BP4K56111E	1	A (BP4K-56-111F) GASOLINE - 030711 BK1* -100298**
BP4K56111F	1	A (BP4K-56-111G) GASOLINE 030711 - 040201 BK1100298-144597*	€ 118,66
BP4K56111G	1	A (BP4K-56-111H) GASOLINE 040201 - 040701 BK1144597-185433*	€ 118,66
BP4K56111H	1	A (BP4K-56-111J) GASOLINE 040701 - 041001 BK1185433-211472*	€ 118,66
BP4K56111L	1	AN (BP4K-56-111M) GASOLINE 041001 - BK1211472-*	€ 119,40
BP8F56110D	1	AN (BP8F-56-110E) DIESEL	€ 179,29

» 56112G

COVER'B',UNDER

Part Number	Qty.	Specifications	Price
BP4K56112	1		€ 20,18

» 56118A

SHIELD(R),SPLASH

Part Number	Qty.	Specifications	Price
BP4K56114D	1		€ 11,12

» 56119

SHIELD(L),SPLASH

Part Number	Qty.	Specifications	Price
BP4K56115E	1	A (BP4K-56-115F) - 040801 BK1* -193923**	€ 10,42
BP4K56115F	1	040801 - BK1193923-*	€ 10,84

» 56145

FASTENER,SCREW

Part Number	Qty.	Specifications	Price
BP4K56398	2

» 56410

INSULATOR,HEAT-FRONT

Part Number	Qty.	Specifications	Price
BP4K56442E	1	GASOLINE	€ 97,36
BR1M56442	1	A (BR1M-56-442A) DIESEL	€ 153,12

» 56431

INSULATOR,HEAT

Part Number	Qty.	Specifications	Price
B32H56453	1	ILLUST. NO.2 ASSEMBLY PLANT CODE=0 050501 - BK1281438-*
BP4K56441E	1	ILLUST. NO.1	€ 32,19
BP4K56453E	1	AN (BP4K-56-453F) ILLUST. NO.2 - 030707 BK1* -100275**
BP4K56453F	1	AN (BP4K-56-453G) ILLUST. NO.2 030707 - 040501 BK1100275-168336*
BP4K56453G	1	ILLUST. NO.2 ASSEMBLY PLANT CODE=1 040501 - BK1168336-*

» 56451

INSULATOR

Part Number	Qty.	Specifications	Price
BP4K56451C	1	AN (BP4K-56-451D) - 040601 BK1* -175590**	€ 29,77
BP4K56451D	1	040601 - BK1175590-*	€ 30,37

» 56461A

INSULATOR,REAR

Part Number	Qty.	Specifications	Price
BP4K56452C	1		€ 42,59

» 56543

INSULATOR

Part Number	Qty.	Specifications	Price
BR1M56513A	2	DIESEL

» 565HX

DAMPER,DYNAMIC

Part Number	Qty.	Specifications	Price
BP4K565HXA	1	5-DOOR

» 56964A

RIVET,SEAL PLATE-SHROUD

Part Number	Qty.	Specifications	Price
B25D56398	4		€ 0,57

» 68615B

NUT,FLANGE-CAP

Part Number	Qty.	Specifications	Price
B10068615	7	GASOLINE	€ 0,93

» 68625

NUT,CAP

Part Number	Qty.	Specifications	Price
B00168625	2	AN (B001-56-375)	€ 1,20

» 68865

FASTENER

Part Number	Qty.	Specifications	Price
G03268865A	4	4-DOOR

» 68885

FASTENER

Part Number	Qty.	Specifications	Price
GJ6A68885	2		€ 1,17

» 69885D

FASTENER

Part Number	Qty.	Specifications	Price
NA0156145	2		€ 1,90

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200620	1		€ 1,40

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401000	1		€ 0,88

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9GG600620B	1		€ 0,62
