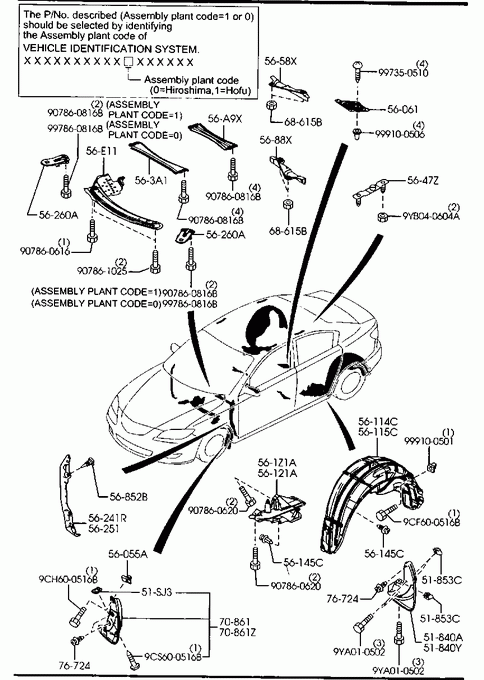

Floor Attachments 01/02 02/02

Floor Attachments |

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Exterior Trim > Floor Attachments

Search by part number:

Floor Attachments

01/02
02/02

FLAP(R),REAR

Part Number	Qty.	Specifications	Price
BN8V51871	1	W/FRT.& RR.MUD FLAP 4-DOOR	€ 28,09
BP4K51871	1	W/FRT.& RR.MUD FLAP 5-DOOR	€ 34,14

FLAP(L),REAR

Part Number	Qty.	Specifications	Price
BN8V51881	1	W/FRT.& RR.MUD FLAP 4-DOOR	€ 28,09
BP4K51881	1	W/FRT.& RR.MUD FLAP 5-DOOR	€ 34,14

NUT,CLIP

Part Number	Qty.	Specifications	Price
B09251861	6	W/FRT.& RR.MUD FLAP	€ 2,83

CLIP

Part Number	Qty.	Specifications	Price
BP4K51SJ3	2		€ 3,96

GROMMET

Part Number	Qty.	Specifications	Price
GJ6E51832A	2		€ 0,91

COVER,SERVICE HOLE

Part Number	Qty.	Specifications	Price
BP4K56070	1		€ 7,96

GUARD(R),MUD-REAR

Part Number	Qty.	Specifications	Price
BP4K561H1B	1	AN (BP4K-56-1H1C) - 050324 BK1* -270808**	€ 64,76
BP4K561H1C	1	AN (BP4K-56-1H1D) W/O REAR MUD GUARD REINF 050324 - 051122 BK1270808-346772*	€ 64,76
BP4K561H1D	1	AN (BP4K-56-1H1E) W/O REAR MUD GUARD REINF 051122 - 060206 BK1346772-372101*
BP4K561H1E	1	AN (BP4K-56-1H1F) W/O REAR MUD GUARD REINF 060206 - BK1372101-*	€ 66,06
BP4L561H1	1	AN (BP4L-56-1H1A) W/REAR MUD GUARD REINF 051001 - 051122 BK1327717-346772*	€ 88,41
BP4L561H1A	1	AN (BP4L-56-1H1B) W/REAR MUD GUARD REINF 051122 - 060206 BK1346772-372101*
BP4L561H1B	1	AN (BP4L-56-1H1C) W/REAR MUD GUARD REINF 060206 - BK1372101-*	€ 88,41

GUARD(L),MUD-REAR

Part Number	Qty.	Specifications	Price
BP4K561J1B	1	AN (BP4K-56-1J1C) - 050324 BK1* -270808**	€ 64,67
BP4K561J1C	1	AN (BP4K-56-1J1D) W/O REAR MUD GUARD REINF 050324 - 051122 BK1270808-346772*	€ 64,67
BP4K561J1D	1	AN (BP4K-56-1J1E) W/O REAR MUD GUARD REINF 051122 - 060206 BK1346772-372101*	€ 64,67
BP4K561J1E	1	AN (BP4K-56-1J1F) W/O REAR MUD GUARD REINF 060206 - BK1372101-*	€ 64,67
BP4L561J1	1	AN (BP4L-56-1J1A) W/REAR MUD GUARD REINF 051001 - 051122 BK1327717-346772*	€ 88,41
BP4L561J1A	1	AN (BP4L-56-1J1B) W/REAR MUD GUARD REINF 051122 - 060206 BK1346772-372101*
BP4L561J1B	1	AN (BP4L-56-1J1C) W/REAR MUD GUARD REINF 060206 - BK1372101-*	€ 88,41

COVER(L),UNDER

Part Number	Qty.	Specifications	Price
BP4K56121B	1	A (BP4K-56-121C) - 040916 BK1* -204539**	€ 16,89
BP4K56121C	1	040916 - BK1204539-*	€ 16,89

CLIP,MUD GUARD

Part Number	Qty.	Specifications	Price
BC1D56145	14		€ 0,64

COVER(R),UNDER

Part Number	Qty.	Specifications	Price
BP0S561Z1A	1	ISRAEL 031201 - BK1133399-*
BP4K561Z1B	1	A (BP4K-56-1Z1C) ISRAEL - 031201 BK1* -133399**	€ 15,74
BP4K561Z1C	1	ECE 040916 - BK1204539-*	€ 16,37

PLATE(R),SEAL-F.FENDER

Part Number	Qty.	Specifications	Price
BP4K56391C	1	- 050301 BK1* -261860**	€ 16,14

PLATE(L),SEAL-F.FENDER

Part Number	Qty.	Specifications	Price
BP4K56396C	1	- 050301 BK1* -261860**	€ 16,14

BRACKET

Part Number	Qty.	Specifications	Price
BP4K56H21A	2	ASSEMBLY PLANT CODE=1	€ 24,46
C23756H21	2	ASSEMBLY PLANT CODE=0 050801 - BK1310728-*	€ 6,10

MEMBER'A',TUNNEL

Part Number	Qty.	Specifications	Price
BP4K563A1B	1		€ 11,45

BRACKET,ROOF CARRIER

Part Number	Qty.	Specifications	Price
GJ6A5647ZB	4		€ 6,99

PLATE(R),SEAL

Part Number	Qty.	Specifications	Price
BP4K5658XB	1	GASOLINE	€ 21,23

FASTENER

Part Number	Qty.	Specifications	Price
GE4T56399	4	- 050301 BK1* -261860**	€ 0,96

PLATE(L),SEAL

Part Number	Qty.	Specifications	Price
BP4K5688XB	1	GASOLINE	€ 21,64

BAR,BRACE

Part Number	Qty.	Specifications	Price
BP4K56A91B	1		€ 8,27

MEMBER,CROSS

Part Number	Qty.	Specifications	Price
BP4K56E10F	1	AN (BP4K-56-E10G) - 030916 BK1* -112421**
BP4K56E10G	1	030916 - BK1112421-*	€ 53,85

NUT,FLANGE-CAP

Part Number	Qty.	Specifications	Price
B10068615	7	GASOLINE	€ 0,93

FLAP(R),FRONT

Part Number	Qty.	Specifications	Price
BP4K51840A	1	W/FRT.& RR.MUD FLAP W/F.MUD FLAP,W/O R.MUD FLAP	€ 26,11

FLAP(L),FRONT

Part Number	Qty.	Specifications	Price
BP4K51850A	1	W/FRT.& RR.MUD FLAP W/F.MUD FLAP,W/O R.MUD FLAP	€ 26,11

RIVET

Part Number	Qty.	Specifications	Price
B09251833	6	W/FRT.& RR.MUD FLAP	€ 1,54

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

SCREW

Part Number	Qty.	Specifications	Price
9CH600516B	1		€ 1,90

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860620	1		€ 2,75

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816B	1		€ 1,53

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907861025	1		€ 2,81

NUT

Part Number	Qty.	Specifications	Price
9YB040604A	1		€ 1,10

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997350510	1		€ 0,62

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860816B	1		€ 1,61

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9CS600516B	1		€ 0,73

BOLT

Part Number	Qty.	Specifications	Price
9YA010502	1		€ 2,63

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100506	1		€ 2,12
