Mazda MAZDA 3 BK 2003-06 Mazda Dashboard Wiring Harnesses 01/02 02/02

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Electronics > Dashboard Wiring Harnesses

Search by part number:

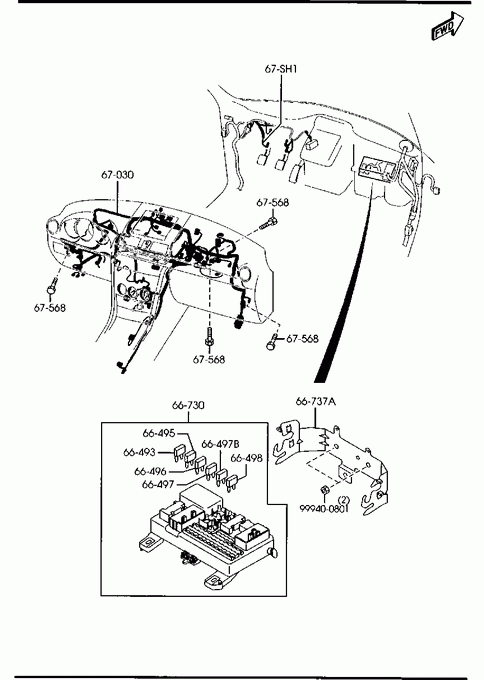

Dashboard Wiring Harnesses

01/02
02/02

FUSE (7.5A)

Part Number	Qty.	Specifications	Price
DD1067M07	7	040301 - BK1152412-*	€ 0,71

» 66495

FUSE (10A)

Part Number	Qty.	Specifications	Price
GD7A67M10	11	10A W/RUNNING LAMP - 040301 BK1* -152412**	€ 1,24

» 66496

FUSE (15A)

Part Number	Qty.	Specifications	Price
GC7A67M15	4	W/RUNNING LAMP 040301 - BK1152412-*
GD7A67M15	6	15A W/RUNNING LAMP - 040301 BK1* -152412**	€ 1,24

» 66497

FUSE (20A)

Part Number	Qty.	Specifications	Price
GD7A67M20	7	W/O RUNNING LAMP	€ 1,24

» 66497B

FUSE (30A)

Part Number	Qty.	Specifications	Price
GD7A67M30	5	W/RUNNING LAMP - 040301 BK1* -152412**	€ 1,24

» 66498

FUSE (25A)

Part Number	Qty.	Specifications	Price
BP4K67M25	1		€ 0,87

» 66730

BLOCK,FUSE

Part Number	Qty.	Specifications	Price
BN8V66730	1	AN (BN8V-66-730A) W/RUNNING LAMP 040301 - 040601 BK1152412-175590*	€ 1236,47
BN8V66730A	1	A (BN8V-66-730B) W/RUNNING LAMP 040601 - 040622 BK1175590-182290*	€ 1236,47
BN8V66730B	1	W/RUNNING LAMP 040622 - 050701 BK1182290-301259*	€ 1286,42
BN8V66730C	1	A (BN8V-66-730D) W/RUNNING LAMP 050701 - 051001 BK1301259-327717*
BN8V66730D	1	A (BN8V-66-730E) W/RUNNING LAMP 051001 - 051101 BK1327717-337978*
BN8V66730E	1	W/RUNNING LAMP 051101 - BK1337978-*
BN9A66730A	1	A (BN9A-66-730B) (W/O RUNNING LAMP>W/O SUPER LOCK SYS.) 4-DOOR 050701 - 051109 BK1301259-341528*	€ 1243,20
BN9A66730B	1	(W/O RUNNING LAMP>W/O SUPER LOCK SYS.) 4-DOOR 051109 - BK1341528-*	€ 1251,12
BP4K66730C	1	(W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X1.RETRACTABLETYPE) (W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X2.STD TYPE>INTERMIT WIPER-AUTO ADJUSTABLE) GASOLINE 040301 - 040326	€ 1236,47
BP4K66730D	1	AN (BP4K-66-730E) (W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X1.RETRACTABLETYPE) (W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X2.STD TYPE>INTERMIT WIPER-AUTO ADJUSTABLE) GASOLINE 040326 - 040601
BP4K66730E	1	A (BP4K-66-730F) (W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X1.RETRACTABLETYPE) (W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X2.STD TYPE>INTERMIT WIPER-AUTO ADJUSTABLE) GASOLINE 040601 - 040701
BP4K66730F	1	(W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X1.RETRACTABLETYPE) (W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X2.STD TYPE>INTERMIT WIPER-AUTO ADJUSTABLE) GASOLINE 040701 - 050701	€ 1286,42
BP4K66730G	1	A (BP4K-66-730H) (W/O RUNNING LAMP>W/SUPER LOCK SYS.) 050701 - 051109 BK1301259-341528*	€ 1286,42
BP4K66730H	1	(W/O RUNNING LAMP>W/SUPER LOCK SYS.) 051109 - BK1341528-*	€ 1261,20
BP8F66730C	1	AN (BP8F-66-730D) (W/O RUNNING LAMP>W/SUPER LOCK SYS.>W/KEYLESS ENTRY X2.STD TYPE>INTERMIT WIPER-CONSTANT) (GASOLINE>ECE>1600) 040601 - 050701
BP8F66730G	1	A (BP8F-66-730H) (W/O RUNNING LAMP>W/O SUPER LOCK SYS.) 5-DOOR 050701 - 051109 BK1301259-341528*
BP8F66730H	1	(W/O RUNNING LAMP>W/O SUPER LOCK SYS.) 5-DOOR 051109 - BK1341528-*

» 66737A

BRACKET,JOINT BOX

Part Number	Qty.	Specifications	Price
BP4K67BJX	1

» 67030

HARNESS,INSTRUMENT

Part Number	Qty.	Specifications	Price
BN8V67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 041101 - 050301 BK1221544-261860*
BN8V67030B	1	A (BN8V-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BN9G67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 041101 - 050301 BK1221544-261860*
BN9G67030B	1	A (BN9G-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BN9H67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 041101 - 050301 BK1221544-261860*
BN9H67030B	1	A (BN9H-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BN9J67030H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BN9J67030K	1	A (BN9J-67-030L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BN9K67030H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**	€ 1066,52
BN9K67030K	1	A (BN9K-67-030L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*	€ 1010,14
BN9L67030H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BN9L67030K	1	A (BN9L-67-030L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BN9M67030H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BN9M67030K	1	A (BN9M-67-030L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP4K67030F	1	A (BP4K-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031101 BK1* -126712**
BP4K67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031101 - 050301 BK1126712-261860*
BP4K67030J	1	A (BP4K-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BP4L67030F	1	A (BP4L-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031001 BK1* -118551**
BP4L67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031001 - 050301 BK1118551-261860*
BP4M67030F	1	A (BP4M-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031101 BK1* -126712**	€ 1142,50
BP4M67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031101 - 050301 BK1126712-261860*	€ 1195,54
BP4M67030J	1	A (BP4M-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*	€ 1193,32
BP4N67030F	1	A (BP4N-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031001 BK1* -118551**
BP4N67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031001 - 050301 BK1118551-261860*	€ 1351,13
BP4N67030J	1	A (BP4N-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*	€ 1351,13
BP4P67030F	1	A (BP4P-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031001 BK1* -118551**
BP4P67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031001 - 050301 BK1118551-261860*	€ 1102,69
BP4P67030J	1	A (BP4P-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*	€ 1032,24
BP4R67030F	1	A (BP4R-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 030924 BK1* -115479**
BP4R67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 030924 - 050301 BK1115479-261860*	€ 1246,10
BP4R67030J	1	A (BP4R-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*	€ 1246,10
BP4S67030F	1	A (BP4S-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031201 BK1* -133399**	€ 1379,79
BP4S67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031201 - 050301 BK1133399-261860*
BP4S67030J	1	A (BP4S-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BP4T67030D	1	A (BP4T-67-030E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031101 BK1* -126712**
BP4T67030E	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031101 - 050301 BK1126712-261860*
BP4T67030G	1	A (BP4T-67-030H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BP6L67030D	1	A (BP6L-67-030E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031001 BK1* -118551**
BP6L67030E	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031001 - 050301 BK1118551-261860*
BP6L67030G	1	A (BP6L-67-030H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BP6S67030C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**	€ 1103,15
BP6S67030E	1	A (BP6S-67-030F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*	€ 1107,34
BP6T67030C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BP6T67030E	1	A (BP6T-67-030F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP6V67030C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BP6V67030E	1	A (BP6V-67-030F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP6W67030C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BP6W67030E	1	A (BP6W-67-030F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP8F67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 041101 - 050301 BK1221544-261860*
BP8F67030B	1	A (BP8F-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP8G67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 041101 - 050301 BK1221544-261860*
BP8G67030B	1	A (BP8G-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP8H67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 041101 - 050301 BK1221544-261860*
BP8H67030B	1	A (BP8H-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP8J67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 041101 - 050301 BK1221544-261860*
BP8J67030B	1	A (BP8J-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BR8W67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 041101 - 050301 BK1221544-261860*
BR8W67030B	1	A (BR8W-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*

» 67568

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
GJ6A67EB1A	4		€ 1,74

» 67SH1

CORD,SHORT

Part Number	Qty.	Specifications	Price
BP4K67SH0	1	AN (BP4K-67-SH0A) MANUAL TRANSMISSION - 040210 BK1* -147119**
BP4K67SH0A	1	(MANUAL TRANSMISSION>GASOLINE) 040210 - 050301 BK1147119-261860*
BP4L67SH0	1	AN (BP4L-67-SH0A) AUTOMATIC TRANSMISSION - 040217 BK1* -149218**
BP4L67SH0A	1	AUTOMATIC TRANSMISSION 040217 - BK1149218-*
BP4S67SH0	1	(MANUAL TRANSMISSION>GASOLINE) 050301 - 050701 BK1261860-301259*
BP4S67SH0A	1	(MANUAL TRANSMISSION>GASOLINE) 050701 - BK1301259-*

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64
