Dashboard Wiring Harnesses

01/02
02/02

HARNESS,INSTRUMENT

Part Number	Qty.	Specifications	Price

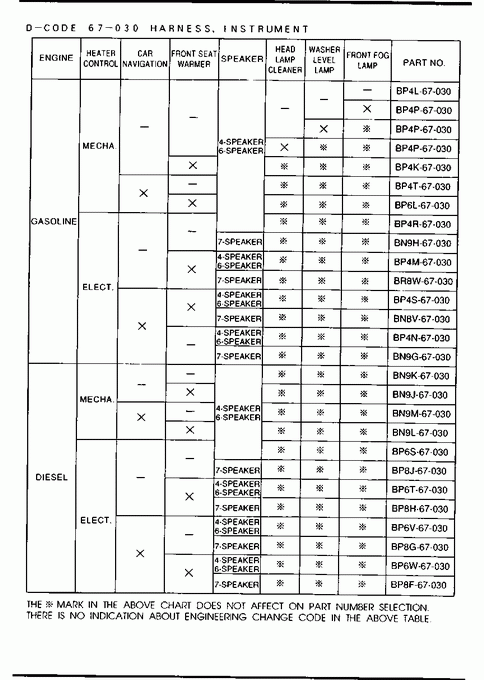

BN8V67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 041101 - 050301 BK1221544-261860*
BN8V67030B	1	A (BN8V-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BN9G67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 041101 - 050301 BK1221544-261860*
BN9G67030B	1	A (BN9G-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BN9H67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 041101 - 050301 BK1221544-261860*
BN9H67030B	1	A (BN9H-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BN9J67030H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BN9J67030K	1	A (BN9J-67-030L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BN9K67030H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**	€ 1066,52
BN9K67030K	1	A (BN9K-67-030L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*	€ 1010,14
BN9L67030H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BN9L67030K	1	A (BN9L-67-030L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BN9M67030H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BN9M67030K	1	A (BN9M-67-030L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP4K67030F	1	A (BP4K-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031101 BK1* -126712**
BP4K67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031101 - 050301 BK1126712-261860*
BP4K67030J	1	A (BP4K-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BP4L67030F	1	A (BP4L-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031001 BK1* -118551**
BP4L67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031001 - 050301 BK1118551-261860*
BP4M67030F	1	A (BP4M-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031101 BK1* -126712**	€ 1142,50
BP4M67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031101 - 050301 BK1126712-261860*	€ 1195,54
BP4M67030J	1	A (BP4M-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*	€ 1193,32
BP4N67030F	1	A (BP4N-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031001 BK1* -118551**
BP4N67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031001 - 050301 BK1118551-261860*	€ 1351,13
BP4N67030J	1	A (BP4N-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*	€ 1351,13
BP4P67030F	1	A (BP4P-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031001 BK1* -118551**
BP4P67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031001 - 050301 BK1118551-261860*	€ 1102,69
BP4P67030J	1	A (BP4P-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*	€ 1032,24
BP4R67030F	1	A (BP4R-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 030924 BK1* -115479**
BP4R67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 030924 - 050301 BK1115479-261860*	€ 1246,10
BP4R67030J	1	A (BP4R-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*	€ 1246,10
BP4S67030F	1	A (BP4S-67-030G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031201 BK1* -133399**	€ 1379,79
BP4S67030G	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031201 - 050301 BK1133399-261860*
BP4S67030J	1	A (BP4S-67-030K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BP4T67030D	1	A (BP4T-67-030E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031101 BK1* -126712**
BP4T67030E	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031101 - 050301 BK1126712-261860*
BP4T67030G	1	A (BP4T-67-030H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BP6L67030D	1	A (BP6L-67-030E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE - 031001 BK1* -118551**
BP6L67030E	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 031001 - 050301 BK1118551-261860*
BP6L67030G	1	A (BP6L-67-030H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
BP6S67030C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**	€ 1103,15
BP6S67030E	1	A (BP6S-67-030F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*	€ 1107,34
BP6T67030C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BP6T67030E	1	A (BP6T-67-030F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP6V67030C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BP6V67030E	1	A (BP6V-67-030F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP6W67030C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL - 050301 BK1* -261860**
BP6W67030E	1	A (BP6W-67-030F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP8F67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 041101 - 050301 BK1221544-261860*
BP8F67030B	1	A (BP8F-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP8G67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 041101 - 050301 BK1221544-261860*
BP8G67030B	1	A (BP8G-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP8H67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 041101 - 050301 BK1221544-261860*
BP8H67030B	1	A (BP8H-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BP8J67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 041101 - 050301 BK1221544-261860*
BP8J67030B	1	A (BP8J-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL DIESEL 050301 - BK1261860-*
BR8W67030	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 041101 - 050301 BK1221544-261860*
BR8W67030B	1	A (BR8W-67-030C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GASOLINE 050301 - BK1261860-*
