Mazda B2600 UF 1989-11 Mazda Air Conditioner 01/02 (-3902) 02/02 (3902-)

Mazda parts catalog

Parts > Mazda B2600 > 1989-11 > Body Interior Trim > Air Conditioner(diesel)

Search by part number:

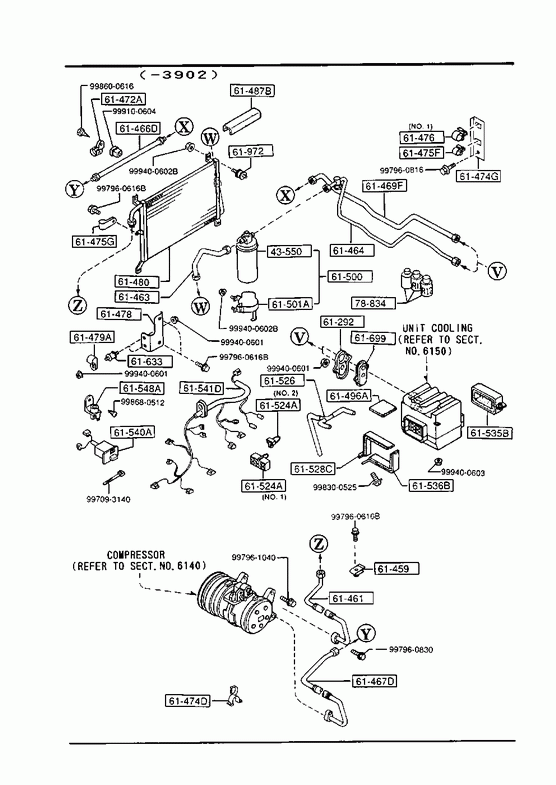

Air Conditioner(diesel)
01/02 (-3902)
02/02 (3902-)

» 43550 TANK,RESERVE

Part Number Qty. Specifications Price
W06561510 1 - 930902
UF*0** -247214

» 61292 PLATE

Part Number Qty. Specifications Price
UB3961292 1

» 61459 NUT,PLATE-AIR CON.

Part Number Qty. Specifications Price
UB8261459 1 - 930902
UF*0** -247214

» 61461 HOSE,FLEXIBLE-HIGH

Part Number Qty. Specifications Price
UB9061461 1 - 930902
UF*0** -247214
UF9761461 1 930902 -
UF*0**247214-

» 61463 PIPE NO.1,COOLER

Part Number Qty. Specifications Price
UB8261462 1 - 930902
UF*0** -247214
UF9661464 1 930902 -
UF*0**247214-

» 61464 PIPE NO.2,COOLER

Part Number Qty. Specifications Price
UB8261463 1 - 930902
UF*0** -247214
UG4261465 1 930902 -
UF*0**247214-

» 61466D PIPE,NO.2-LOWER

Part Number Qty. Specifications Price
UB8261466 1 - 930902
UF*0** -247214

» 61467D HOSE,FLEXIBLE-LOW

Part Number Qty. Specifications Price
UB9061467 1 - 930902
UF*0** -247214

» 61469F PIPE,NO.1-LOWER

Part Number Qty. Specifications Price
UB8261464 1 - 930902
UF*0** -247214

» 61472A CLIP

Part Number Qty. Specifications Price
UB8261472 1

» 61474D CLIP

Part Number Qty. Specifications Price
UB9061475 1 - 930902
UF*0** -247214

» 61474G BRACKET,PIPE

Part Number Qty. Specifications Price
UB9061474 1

» 61475F CLIP

Part Number Qty. Specifications Price
UB8261475 2
€ 2,09

» 61475G CLIP

Part Number Qty. Specifications Price
UB8361475 1

» 61476 CLIP

Part Number Qty. Specifications Price
N00161476A 1 ILLUST. NO.2
930902 -
UF*0**247214-
UB8261476 2 ILLUST. NO.1

UB8361476 1 ILLUST. NO.3
930902 - 940701
UF*0**247214-256452

» 61478 BRACKET

Part Number Qty. Specifications Price
UB8261478 1

» 61479A CLIP

Part Number Qty. Specifications Price
B11161479 2 - 930902
UF*0** -247214

» 61480 CONDENSER

Part Number Qty. Specifications Price
UB8261480 1 - 930902
UF*0** -247214
UG4261480 1 930902 -
UF*0**247214-

» 61487B PROTECTOR

Part Number Qty. Specifications Price
UB8261488 1

» 61496A GASKET

Part Number Qty. Specifications Price
H70161572 2
€ 2,47

» 61500 TANK,LIQUID

Part Number Qty. Specifications Price
UB8261500 1 - 930902
UF*0** -247214
UG4261500 1 ILLUST. NO.1
930902 -
UF*0**247214-
W25761501 1 ILLUST. NO.2
930902 -
UF*0**247214-

» 61501A BRACKET,LIQUID TANK

Part Number Qty. Specifications Price
UB8261501 1 - 930902
UF*0** -247214

» 61524A CONNECTOR,SHORT

Part Number Qty. Specifications Price
856261524 1 ILLUST. NO.1
€ 6,99
UB8261523 1 ILLUST. NO.2
- 940701
UF*0** -256452

» 61526 HOSE,DRAIN

Part Number Qty. Specifications Price
UB8261526 1
€ 17,32

» 61528C PLATE,SEAL

Part Number Qty. Specifications Price
UB8261538 1
€ 36,00

» 61535B PLATE NO.1,SEAL

Part Number Qty. Specifications Price
UB8261536 1
€ 14,50

» 61536B PLATE NO.2,SEAL

Part Number Qty. Specifications Price
UB8261537C 1
€ 36,00

» 61540A SWITCH,AIR CON.

Part Number Qty. Specifications Price
UB3961550 1

» 61541D HARNESS,WIRE

Part Number Qty. Specifications Price
UB9061540 1 - 930902
UF*0** -247214

» 61548A RELAY

Part Number Qty. Specifications Price
UB8261548 1

» 61633 CUSHION

Part Number Qty. Specifications Price
FD0461481 2 940601 -
UF*0**255450- € 7,53
H03061633 2 - 940601
UF*0** -255450

» 61699 GROMMET

Part Number Qty. Specifications Price
UB8261699 1
€ 10,12

» 61972 RUBBER,INSULATOR

Part Number Qty. Specifications Price
FA5461972 4

» 78834 REFRIGERANT DRUM

Part Number Qty. Specifications Price
FC0561R12 3 250G
- 930902
UF*0** -247214
W32361R13 2 300G
930902 -
UF*0**247214-

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601 1
€ 1,28

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400602B 1
€ 1,28

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400603 1
€ 2,05

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998600616 1

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998680512 1
€ 0,65

» 99709 BAND

Part Number Qty. Specifications Price
997093140 1
€ 3,57

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960816 1
€ 1,92

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960816B 1
€ 1,21

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960830 1
€ 1,57

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997961040 1
€ 2,37

» 99830 SCREW,FLANGE

Part Number Qty. Specifications Price
998300525 1
€ 0,44

» 99910 GROMMET,SCREW

Part Number Qty. Specifications Price
999100604 1
€ 1,89

Part Number	Qty.	Specifications	Price
W06561510	1	- 930902 *UF0 -247214

Part Number	Qty.	Specifications	Price
N00161476A	1	ILLUST. NO.2 930902 - *UF0247214-
UB8261476	2	ILLUST. NO.1
UB8361476	1	ILLUST. NO.3 930902 - 940701 *UF0247214-256452

Air Conditioner(diesel)
