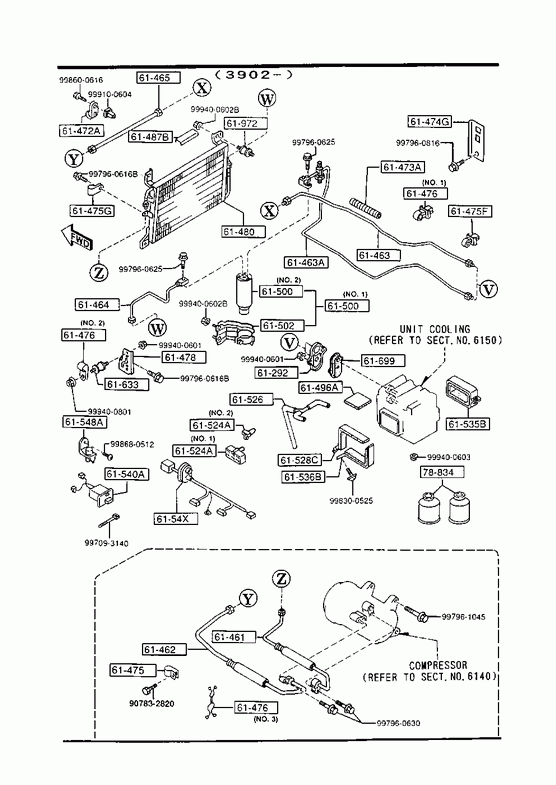

Air Conditioner 01/02 (-3902) 02/02 (3902-)

Air Conditioner |

Mazda parts catalog

Parts > Mazda B2600 > 1989-11 > Body Interior Trim > Air Conditioner

Search by part number:

Air Conditioner(diesel)
01/02 (-3902)
02/02 (3902-)

» 61292 PLATE

Part Number Qty. Specifications Price
UB3961292 1

» 61461 HOSE,FLEXIBLE-HIGH

Part Number Qty. Specifications Price
UB9061461 1 - 930902
UF*0** -247214
UF9761461 1 930902 -
UF*0**247214-

» 61462 HOSE,FLEXIBLE-LOW

Part Number Qty. Specifications Price
UF9761462 1 930902 -
UF*0**247214-

» 61463 PIPE NO.1,COOLER

Part Number Qty. Specifications Price
UB8261462 1 - 930902
UF*0** -247214
UF9661464 1 930902 -
UF*0**247214-

» 61463A PIPE

Part Number Qty. Specifications Price
UG4261463 1 930902 - 941101
UF*0**247214-260013
UG4261463A 1 941101 -
UF*0**260013-

» 61464 PIPE NO.2,COOLER

Part Number Qty. Specifications Price
UB8261463 1 - 930902
UF*0** -247214
UG4261465 1 930902 -
UF*0**247214-

» 61465 PIPE NO.3,COOLER

Part Number Qty. Specifications Price
UG4261466 1 930902 -
UF*0**247214-

» 61472A CLIP

Part Number Qty. Specifications Price
UB8261472 1

» 61473A PROTECTOR

Part Number Qty. Specifications Price
037061473 2 930902 -
UF*0**247214- € 5,40

» 61474G BRACKET,PIPE

Part Number Qty. Specifications Price
UB9061474 1

» 61475 CLIP,PIPE

Part Number Qty. Specifications Price
UF2361475 1 940701 -
UF*0**256452-

» 61475F CLIP

Part Number Qty. Specifications Price
UB8261475 2
€ 2,09

» 61475G CLIP

Part Number Qty. Specifications Price
UB8361475 1

» 61476 CLIP

Part Number Qty. Specifications Price
N00161476A 1 ILLUST. NO.2
930902 -
UF*0**247214-
UB8261476 2 ILLUST. NO.1

UB8361476 1 ILLUST. NO.3
930902 - 940701
UF*0**247214-256452

» 61478 BRACKET

Part Number Qty. Specifications Price
UB8261478 1

» 61480 CONDENSER

Part Number Qty. Specifications Price
UB8261480 1 - 930902
UF*0** -247214
UG4261480 1 930902 -
UF*0**247214-

» 61487B PROTECTOR

Part Number Qty. Specifications Price
UB8261488 1

» 61496A GASKET

Part Number Qty. Specifications Price
H70161572 2
€ 2,47

» 61500 TANK,LIQUID

Part Number Qty. Specifications Price
UB8261500 1 - 930902
UF*0** -247214
UG4261500 1 ILLUST. NO.1
930902 -
UF*0**247214-
W25761501 1 ILLUST. NO.2
930902 -
UF*0**247214-

» 61502 BRACKET,TANK

Part Number Qty. Specifications Price
UG4261502 1 930902 -
UF*0**247214-

» 61524A CONNECTOR,SHORT

Part Number Qty. Specifications Price
856261524 1 ILLUST. NO.1
€ 6,99
UB8261523 1 ILLUST. NO.2
- 940701
UF*0** -256452

» 61526 HOSE,DRAIN

Part Number Qty. Specifications Price
UB8261526 1
€ 17,32

» 61528C PLATE,SEAL

Part Number Qty. Specifications Price
UB8261538 1
€ 36,00

» 61535B PLATE NO.1,SEAL

Part Number Qty. Specifications Price
UB8261536 1
€ 14,50

» 61536B PLATE NO.2,SEAL

Part Number Qty. Specifications Price
UB8261537C 1
€ 36,00

» 61540A SWITCH,AIR CON.

Part Number Qty. Specifications Price
UB3961550 1

» 61548A RELAY

Part Number Qty. Specifications Price
UB8261548 1

» 6154X HARNESS,COMPRESSOR-COOLER

Part Number Qty. Specifications Price
UF976154X 1 930902 -
UF*0**247214-

» 61633 CUSHION

Part Number Qty. Specifications Price
FD0461481 2 940601 -
UF*0**255450- € 7,53
H03061633 2 - 940601
UF*0** -255450

» 61699 GROMMET

Part Number Qty. Specifications Price
UB8261699 1
€ 10,12

» 61972 RUBBER,INSULATOR

Part Number Qty. Specifications Price
FA5461972 4

» 78834 REFRIGERANT DRUM

Part Number Qty. Specifications Price
FC0561R12 3 250G
- 930902
UF*0** -247214
W32361R13 2 300G
930902 -
UF*0**247214-

» 90781 BOLT & WASHER

Part Number Qty. Specifications Price
907832820 1
€ 1,55

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601 1
€ 1,28

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400602B 1
€ 1,28

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400603 1
€ 2,05

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400801 1
€ 1,64

» 99709 BAND

Part Number Qty. Specifications Price
997093140 1
€ 3,57

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616B 1
€ 0,48

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960625 1
€ 1,17

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960630 1
€ 1,39

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997961045 1
€ 2,52

» 99830 SCREW,FLANGE

Part Number Qty. Specifications Price
998300525 1
€ 0,44

» 99910 GROMMET,SCREW

Part Number Qty. Specifications Price
999100604 1
€ 1,89

Part Number	Qty.	Specifications	Price
UB9061461	1	- 930902 *UF0 -247214
UF9761461	1	930902 - *UF0247214-

Part Number	Qty.	Specifications	Price
UG4261463	1	930902 - 941101 *UF0247214-260013
UG4261463A	1	941101 - *UF0260013-

Part Number	Qty.	Specifications	Price
N00161476A	1	ILLUST. NO.2 930902 - *UF0247214-
UB8261476	2	ILLUST. NO.1
UB8361476	1	ILLUST. NO.3 930902 - 940701 *UF0247214-256452

Air Conditioner(diesel)
