- Parts > Mazda B2600 > 1989-09 > Gasoline-engine 4-cylinder & Transmission > Transmission Gears(manual)(4x4)
- Search by part number:
-

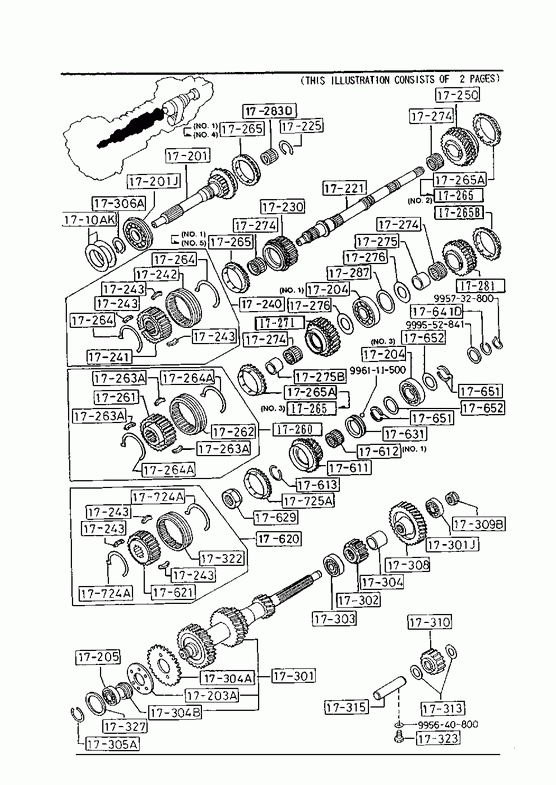

Transmission Gears(manual)(4x4)
-
» 1710AK SHIM,ADJUST Part Number Qty. Specifications Price 999636930 1 T=0.3MM € 2,18 999636940 1 T=0.4MM € 3,03 999636950 1 T=0.5MM € 2,18 999636960 1 T=0.6MM € 3,03 999636970 1 T=0.7MM € 3,03 » 17201 GEAR,MAIN DRIVE Part Number Qty. Specifications Price R5071721X 1 € 209,99 » 17201J BEARING,BALL-MAIN DRIVE GEAR Part Number Qty. Specifications Price R50117295 1 A (R501-17-295A) € 46,04 » 17203A SPRING,DIAGHRAM Part Number Qty. Specifications Price R50217203A 1 € 9,09 » 17204 BEARING,BALL-MAIN SHAFT Part Number Qty. Specifications Price 9960633093 1 O=100/I=45/W=20
ILLUST. NO.2€ 72,82 9960663563 1 O=68/I=28/W=18
ILLUST. NO.3
941001 -
UF***2620859-€ 36,31 R50117204 1 O=75/I=32/W=20
ILLUST. NO.1€ 42,73 R50217204 1 O=68/I=28/W=18
ILLUST. NO.3
- 941001
UF***2 -620859€ 36,66 » 17205 BEARING,ROLLER Part Number Qty. Specifications Price R50217306A 1 FUJIKOSHI € 68,66 » 17221 SHAFT,MAIN Part Number Qty. Specifications Price R50417221C 1 A (R504-17-221D) » 17225 RING,SNAP Part Number Qty. Specifications Price 031717225 1 € 2,16 » 17230 GEAR,3RD Part Number Qty. Specifications Price R50317230C 1 A (R503-17-230D) » 17240 HUB SET,CLUTCH-3RD & 4TH Part Number Qty. Specifications Price R50117240A 1 A (R501-17-240B)
- 901001
UF***2 -605713€ 118,65 R50417240 1 901001 - 910131
UF***2605713-607957€ 124,67 R50417240A 1 A (R504-17-240B)
910131 - 910201
UF***2607957-607970R50417240B 1 A (R504-17-240C)
910201 - 910701
UF***2607970-609370€ 119,83 R50417240C 1 A (R504-17-240D)
910701 -
UF***2609370-€ 119,83 » 17241 HUB,CLUTCH Part Number Qty. Specifications Price R50117241 1 - 901001
UF***2 -605713€ 83,80 R50117241B 1 901001 -
UF***2605713-€ 87,19 » 17242 SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price R50117242 1 A (R501-17-242A)
- 901001
UF***2 -605713R50217242C 1 A (R502-17-242D)
910131 - 910201
UF***2607957-607970R50217242D 1 A (R502-17-242E)
910201 - 910701
UF***2607970-609370R50217242E 1 AN (R502-17-242F)
910701 -
UF***2609370-€ 64,06 R50417242 1 901001 - 910131
UF***2605713-607957€ 71,24 » 17243 KEY,SYNCHRONIZER Part Number Qty. Specifications Price F40117243A 6 AN (F401-17-243C) € 3,12 » 17250 GEAR,2ND Part Number Qty. Specifications Price R52817250 1 € 202,79 » 17260 HUB SET,CLUTCH-1ST & 2ND Part Number Qty. Specifications Price R50117260A 1 A (R501-17-260B)
- 901001
UF***2 -605713€ 167,80 R50117260D 1 901001 - 910131
UF***2605713-607957€ 167,80 R50417260 1 A (R504-17-260A)
910131 - 910201
UF***2607957-607970R50417260A 1 A (R504-17-260B)
910201 - 910701
UF***2607970-609370€ 136,90 R50417260B 1 910701 -
UF***2609370-€ 142,43 » 17261 HUB,CLUTCH Part Number Qty. Specifications Price R50117261 1 - 901001
UF***2 -605713€ 96,82 R50117261B 1 901001 -
UF***2605713-€ 100,74 » 17262 SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price R50117262 1 A (R501-17-262A)
- 901001
UF***2 -605713R50117262C 1 901001 - 910131
UF***2605713-607957R50217262C 1 A (R502-17-262D)
910131 - 910201
UF***2607957-607970R50217262D 1 A (R502-17-262E)
910201 - 910701
UF***2607970-609370R50217262E 1 910701 -
UF***2609370-€ 80,65 » 17263A KEY,SYNCHRONIZER Part Number Qty. Specifications Price W50117263A 3 € 3,17 » 17264 SPRING,SYNCHRO. KEY Part Number Qty. Specifications Price G40117264 2 A (G402-17-264) € 2,59 » 17264A SPRING,SYNCHRONIZER Part Number Qty. Specifications Price R50117264 2 € 3,28 » 17265 RING,SYNCHRONIZER Part Number Qty. Specifications Price M50217265A 2 A (M502-17-265B)
ILLUST. NO.1
- 910131
UF***2 -607957€ 25,88 R50517265C 1 ILLUST. NO.2
910131 -
UF***2607957-€ 28,93 R50617265B 1 A (R506-17-265C)
ILLUST. NO.4
910131 - 910408
UF***2607957-608550€ 27,09 R50617265C 1 ILLUST. NO.4
910408 -
UF***2608550-€ 28,18 R50717265B 1 A (R507-17-265C)
ILLUST. NO.5
910131 - 910408
UF***2607957-608550€ 27,09 R50717265C 1 ILLUST. NO.5
910408 -
UF***2608550-€ 28,18 R51317265B 1 ILLUST. NO.3
910131 -
UF***2607957-€ 27,29 » 17265A RING,SYNCHRONIZER Part Number Qty. Specifications Price R50217265A 2 - 910131
UF***2 -607957€ 28,93 » 17265B RING,SYNCHRONIZER Part Number Qty. Specifications Price R50317265A 1 A (R503-17-265B)
- 911025
UF***2 -610838€ 25,29 R50317265B 1 911025 -
UF***2610838-€ 26,32 » 17271 GEAR,1ST Part Number Qty. Specifications Price R50517270A 1 A (R505-17-270B)
- 900501
UF***2 -602880R50517270B 1 900501 -
UF***2602880-» 17274 BEARING,NEEDLE Part Number Qty. Specifications Price 088417274 4 € 25,71 » 17275 RACE,INNER Part Number Qty. Specifications Price 364817275A 1 € 24,53 » 17275B RACE,INNER Part Number Qty. Specifications Price 088417275B 1 € 24,53 » 17276 WASHER,THRUST Part Number Qty. Specifications Price 083917276 1 T=2.5MM € 5,32 083917277 2 T=3.0MM € 4,95 083917278 1 T=3.5MM € 5,32 » 17281 GEAR,REVERSE Part Number Qty. Specifications Price R50217281A 1 - 930301
UF***2 -615580€ 131,86 R52017281 1 930301 -
UF***2615580-€ 109,36 » 17283D BEARING,NEEDLE Part Number Qty. Specifications Price R50217283 1 € 19,23 » 17287 SHIM,ADJUST Part Number Qty. Specifications Price 083917287 2 T=0.1MM € 1,90 083917288 1 T=0.3MM € 1,90 » 17301 GEAR,COUNTER SHAFT Part Number Qty. Specifications Price R51217300 1 AN (R512-17-300A) » 17301J BEARING,BALL Part Number Qty. Specifications Price R50117299 1 A (R521-17-299)
- 941001
UF***2 -620859€ 13,46 R52117299 1 941001 -
UF***2620859-€ 21,91 » 17302 GEAR,COUNTER REVERSE Part Number Qty. Specifications Price R50117302 1 € 30,84 » 17303 BEARING,BALL Part Number Qty. Specifications Price 082117303 1 AN (R501-17-290) € 74,70 » 17304 SPACER Part Number Qty. Specifications Price R50117304 1 € 5,33 » 17304A GEAR,FRICTION Part Number Qty. Specifications Price R51017304 1 A (R510-17-304A) » 17304B SPACER Part Number Qty. Specifications Price R50117316A 1 € 13,96 » 17305A RING,RETAINING-BALL BEARING Part Number Qty. Specifications Price 083917305B 1 A (0839-17-305C) € 2,78 » 17306A RING,SNAP Part Number Qty. Specifications Price 072717306 1 T=1.5MM € 2,92 » 17308 GEAR,COUNTER-5TH Part Number Qty. Specifications Price R52817308A 1 € 100,74 » 17309B NUT,LOCK-COUNTER SHAFT BR Part Number Qty. Specifications Price M50117309 1 € 9,13 » 17310 GEAR,REVERSE IDLE Part Number Qty. Specifications Price R50217310 1 - 930301
UF***2 -615580€ 94,63 R52217310 1 930301 -
UF***2615580-€ 75,02 » 17313 WASHER,THRUST-REVERSE IDLE G. Part Number Qty. Specifications Price 082117313 2 € 5,57 » 17315 SHAFT,REV. IDLE GEAR Part Number Qty. Specifications Price 088417315 1 € 10,31 » 17322 SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price R50117622 1 € 48,87 » 17323 BOLT SET Part Number Qty. Specifications Price 406917323 1 € 2,94 » 17327 SHIM,ADJUST-COUNTER SHAFT GEAR Part Number Qty. Specifications Price 030517327 2 T=0.1MM € 2,03 030517328 1 T=0.3MM € 2,43 » 17341J BALL,STEEL Part Number Qty. Specifications Price 996111500 1 € 1,93 » 17611 GEAR,OVER TOP Part Number Qty. Specifications Price R52717610A 1 AN (R527-17-610B)
- 920901
UF***2 -614547R52717610B 1 920901 -
UF***2614547-€ 211,75 » 17612 BEARING,NEEDLE Part Number Qty. Specifications Price M50117932 2 A (M501-17-932A)
ILLUST. NO.2
- 951201
UF***2 -623346€ 10,77 M50117932A 2 ILLUST. NO.2
951201 -
UF***2623346-€ 11,21 R50117612 1 ILLUST. NO.1 € 24,53 » 17613 RING,RETAINING Part Number Qty. Specifications Price R50117613 1 € 2,04 » 17620 HUB,CLUTCH-5TH & REV. Part Number Qty. Specifications Price R50217620C 1 € 130,68 » 17621 HUB,CLUTCH Part Number Qty. Specifications Price R50217621A 1 € 66,02 » 17629 NUT,LOCK-CLUTCH HUB Part Number Qty. Specifications Price 364817629 1 € 17,98 » 17631 WASHER,THRUST LOCK-OVER TOP G. Part Number Qty. Specifications Price R50117631A 1 T=6.4MM € 7,13 R50117632A 1 T=6.5MM € 7,13 R50117633A 1 T=6.6MM € 7,13 R50117634A 1 T=6.7MM € 8,26 R50117635 1 T=6.3MM € 8,07 R50117636 1 T=6.2MM € 8,16 » 17641D RING,SNAP Part Number Qty. Specifications Price 082117641B 1 € 2,92 » 17651 WASHER,THRUST Part Number Qty. Specifications Price M50217651 4 T=3.0MM € 7,06 M50217653 2 T=3.1MM € 7,06 M50217654 2 T=3.2MM € 7,06 M50217655 2 T=2.9MM € 7,06 » 17652 WASHER,THRUST LOCK Part Number Qty. Specifications Price M50217652 2 € 3,35 » 17724A SPRING,SYNCHRO.KEY Part Number Qty. Specifications Price W50117724 2 € 2,28 » 17725A RING,SYNCHRONIZER Part Number Qty. Specifications Price W50117725A 1 AN (W501-17-725B)
- 920710
UF***2 -613757€ 24,10 W50117725B 1 A (W501-17-725C)
920710 -
UF***2613757-€ 24,10 » 99560 GASKET Part Number Qty. Specifications Price 995640800 1 € 0,62 » 99571 RING,SNAP Part Number Qty. Specifications Price 995732800 1 € 1,24 » 99955 WASHER,ADJUST Part Number Qty. Specifications Price 999552841 1 € 3,80
