Transmission Gears 01/02 02/02

Transmission Gears |

Mazda parts catalog

Parts > Mazda B2600 > 1989-09 > Gasoline-engine 4-cylinder & Transmission > Transmission Gears

Search by part number:

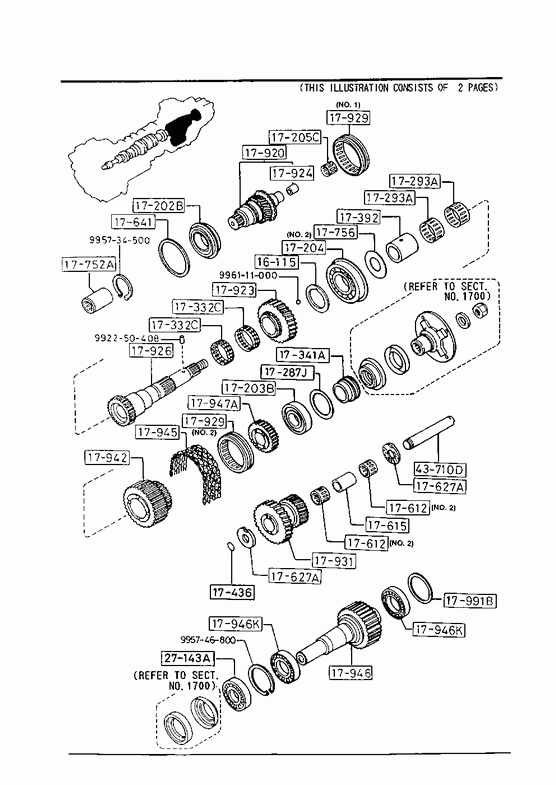

Transmission Gears(manual)(4x4)

01/02
02/02

WASHER,LOCK

Part Number	Qty.	Specifications	Price
M50117928	1		€ 7,10

» 17202B

BEARING,BALL

Part Number	Qty.	Specifications	Price
M50117905	1		€ 50,56

» 17203B

BEARING,BALL

Part Number	Qty.	Specifications	Price
M50117906	1		€ 32,62

» 17204

BEARING,BALL-MAIN SHAFT

Part Number	Qty.	Specifications	Price
9960633093	1	O=100/I=45/W=20 ILLUST. NO.2	€ 72,82
9960663563	1	O=68/I=28/W=18 ILLUST. NO.3 941001 - UF2620859-*	€ 36,31
R50117204	1	O=75/I=32/W=20 ILLUST. NO.1	€ 42,73
R50217204	1	O=68/I=28/W=18 ILLUST. NO.3 - 941001 UF2 -620859*	€ 36,66

» 17205C

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
996089244	1		€ 11,46

» 17287J

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
M50117984	1	T=1.7MM	€ 12,40
M50117985	1	T=1.4MM	€ 10,36
M50117986	1	T=1.5MM	€ 12,65
M50117987	1	T=1.6MM	€ 12,65
M50117989	1	T=1.3MM	€ 8,83
M50117991	1	T=0.5MM	€ 8,20
M50117992	1	T=0.6MM	€ 8,20
M50117993	1	T=0.7MM	€ 8,20
M50117994	1	T=0.8MM	€ 8,20
M50117995	1	T=0.9MM	€ 8,20
M50117996	1	T=1.0MM	€ 10,83
M50117997	1	T=1.1MM	€ 10,83
M50117998	1	T=1.2MM	€ 10,83

» 17293A

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
M50117943	2		€ 18,48

» 17332C

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
M50117938	2		€ 15,97

» 17341A

GEAR,SPEEDO.DRIVE

Part Number	Qty.	Specifications	Price
M50617341	1		€ 30,20

» 17392

SPACER

Part Number	Qty.	Specifications	Price
M50117944	1		€ 20,68

» 17436

RING,'O'

Part Number	Qty.	Specifications	Price
9954101801	1		€ 2,77

» 17612

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
M50117932	2	A (M501-17-932A) ILLUST. NO.2 - 951201 UF2 -623346*	€ 10,77
M50117932A	2	ILLUST. NO.2 951201 - UF2623346-*	€ 11,21
R50117612	1	ILLUST. NO.1	€ 24,53

» 17615

SPACER

Part Number	Qty.	Specifications	Price
M50117935	1	- 960101 UF2 -623495*
M50117935A	1	960101 - UF2623495-*	€ 2,67

» 17627A

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M50117933	2		€ 7,04

» 17641

WASHER,ADJUST

Part Number	Qty.	Specifications	Price
M50117381	1	T=0.6MM	€ 9,17
M50117382	1	T=1.3MM	€ 13,27
M50117383	1	T=1.4MM	€ 13,27
M50117384	1	T=0.7MM	€ 9,17
M50117385	1	T=0.8MM	€ 9,17
M50117386	1	T=0.9MM	€ 9,17
M50117387	1	T=1.0MM	€ 13,27
M50117388	1	T=1.1MM	€ 13,27
M50117389	1	T=1.2MM	€ 13,27

» 17752A

SLEEVE,INPUT

Part Number	Qty.	Specifications	Price
M50217752A	1		€ 21,70

» 17756

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M50117927	1		€ 7,61

» 17920

GEAR,INPUT

Part Number	Qty.	Specifications	Price
M50217920A	1	- 951001 UF2 -622915*
M50617920	1	951001 - UF2622915-*

» 17923

GEAR,LOW

Part Number	Qty.	Specifications	Price
M50217923	1		€ 129,14

» 17924

PIN,TUBULAR-INPUT GEAR

Part Number	Qty.	Specifications	Price
M50117924	1		€ 1,84

» 17926

SHAFT,OUTPUT-REAR

Part Number	Qty.	Specifications	Price
M50117926	1	- 951001 UF2 -622915*	€ 200,47
M50117926B	1	A (M501-17-926C) 951001 - UF2622915-*	€ 169,81

» 17929

SLEEVE,CLIP

Part Number	Qty.	Specifications	Price
M50117929A	1	ILLUST. NO.1	€ 41,90
M50217929A	1	ILLUST. NO.2	€ 39,64

» 17931

GEAR,COUNTER TRANSFER

Part Number	Qty.	Specifications	Price
M50117931A	1	- 960101 UF2 -623495*
M50117931B	1	960101 - UF2623495-*	€ 129,22

» 17942

SPROCKET,DRIVE

Part Number	Qty.	Specifications	Price
M50217942	1		€ 130,50

» 17945

CHAIN,SPROKET-FRONT DRIVE

Part Number	Qty.	Specifications	Price
M50117945	1		€ 349,08

» 17946

SPROCKET,FRONT DRIVE

Part Number	Qty.	Specifications	Price
M50217940	1	941001 - UF2620859-*	€ 150,98
M50217946	1	G (M502-17-940) - 941001 UF2 -620859*

» 17946K

BEARING,BALL

Part Number	Qty.	Specifications	Price
9960662093	2		€ 23,86

» 17947A

HUB,CLUTCH-2W & 4W

Part Number	Qty.	Specifications	Price
M50217947	1		€ 56,38

» 17991B

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
M50217991	1	T=0.5MM	€ 8,21
M50217992	1	T=0.6MM	€ 8,21
M50217993	1	T=0.7MM	€ 8,21
M50217994	1	T=0.8MM	€ 8,21
M50217995	1	T=0.9MM	€ 8,21
M50217996	1	T=1.0MM	€ 11,36
M50217997	1	T=1.1MM	€ 11,36
M50217998	1	T=1.2MM	€ 11,36

» 27143A

BEARING,BALL-DRIVE PINION

Part Number	Qty.	Specifications	Price
M05527143	1		€ 44,41

» 43710D

SHAFT,COUNTER

Part Number	Qty.	Specifications	Price
M50117934	1		€ 13,13

» 99220

Part Number	Qty.	Specifications	Price
992250408	1		€ 2,92

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995734500	1		€ 2,88

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995746800	1		€ 2,92

» 99611

BALL,STEEL

Part Number	Qty.	Specifications	Price
996111000	1		€ 2,24

Transmission Gears(manual)(4x4)
