Mazda B2200 UN 1999-02 Mazda Cooling System

Mazda parts catalog

Parts > Mazda B2200 > 1999-02 > Gasoline-engine 4-cylinder Supplement > Cooling System(gasoline)(2600cc)

Search by part number:

Cooling System(gasoline)(2600cc)

PUMP,WATER

Part Number	Qty.	Specifications	Price
G60115010C	1	990901 - UN2118803-*	€ 133,89

» 15010S

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AL115010C	1	C (G601-15-010C) - 990901 UN2 -118803*	€ 144,01

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
G61515116	1		€ 9,15

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
G60115131	1

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
G60715141	1

» 15146A

STUD,COOLING FAN

Part Number	Qty.	Specifications	Price
HE0115146	4		€ 2,61

» 15160A

INLET,WATER PUMP

Part Number	Qty.	Specifications	Price
G60315161	1

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
G61215165	1	NON ASBESTOS

» 15169

GASKET,WATER OUTLET

Part Number	Qty.	Specifications	Price
G61215169	1	NON ASBESTOS	€ 2,53

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AK115171	1	NON ASBESTOS	€ 21,79

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
G60115172	1	AN (G601-15-172A) - 990420 UN2 -108640*	€ 21,91
G60115172A	1	990420 - UN2108640-*	€ 22,80

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
B62115173	1	NON ASBESTOS	€ 5,10

» 15179

OUTLET,WATER PUMP

Part Number	Qty.	Specifications	Price
G60115170	1		€ 48,30

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
G50315185C	1		€ 19,47

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
G50315186	1

» 15189

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
AS0115182	2		€ 2,97

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
G67515200	1	AN (G675-15-200A) - 030331
G67515200A	1	030331 -

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
WL0215202	2		€ 4,77

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
G67515205	1	A (G675-15-205A) 990222 - 030331 UN2106170-*
G67515205A	1	030331 -
WL8115205	1	A (WL81-15-205A) - 990222 UN2 -106170*	€ 9,27

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
WL8115203	1		€ 0,91

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
WL8115204	1		€ 0,23

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
G50315150	1

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
G67515211	1

» 15212

COWLING,RADIATOR-LWR

Part Number	Qty.	Specifications	Price
G67515212	1

» 15240C

BRACKET(R),RADIATOR

Part Number	Qty.	Specifications	Price
WL8115240A	1		€ 3,69

» 15242

RUBBER,MOUNT-RADIATOR

Part Number	Qty.	Specifications	Price
B6BF15242A	2	- 020501 UN2 -192692*	€ 2,64
WL8115242	2	020501 - UN2192692-*

» 152501

FAN & FAN DRIVE

Part Number	Qty.	Specifications	Price
G50315140	1	AN (G503-15-140A)

» 15250A

BRACKET(L),RADIATOR

Part Number	Qty.	Specifications	Price
WL8115250A	1		€ 3,69

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
G60715370	1		€ 14,64

» 15270

PIPE,WATER BY PASS

Part Number	Qty.	Specifications	Price
G60715261	1

» 15287

RING,'O'-WATER BYPASS

Part Number	Qty.	Specifications	Price
E30115287	1		€ 1,97

» 15290

PIPE,BYPASS

Part Number	Qty.	Specifications	Price
G60115290	1

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
G67515350	1	A (G675-15-350A) - 990901 UN2 -118803*
G67515350A	1	990901 - UN2118803-*

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
G67515355	1

» 15524

CLIP,WATER PIPE-OIL COOLER

Part Number	Qty.	Specifications	Price
G60715285A	1

» 15540

PIPE,WATER-OIL COOLER

Part Number	Qty.	Specifications	Price
G60715540A	1

» 67043A

CLIP

Part Number	Qty.	Specifications	Price
A08367C91	1

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200616	1		€ 1,13

» 90780

BOLT

Part Number	Qty.	Specifications	Price
907960612	1		€ 2,61

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200616	1		€ 1,41

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997940870	1		€ 2,69

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510822A	1		€ 1,44

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400803	1		€ 1,63

» 932407

HOSE,WATER

Part Number	Qty.	Specifications	Price
9932407800	1		€ 5,65

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992861400P	1		€ 2,44

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3700B	1		€ 3,12

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093140	1		€ 3,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940830	1		€ 2,31

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997941016	1		€ 2,44

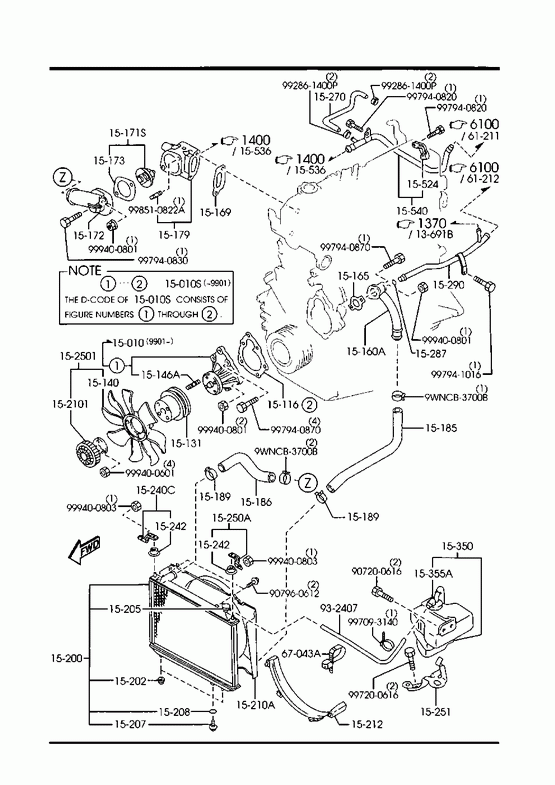

Cooling System(gasoline)(2600cc)
