Injection Pump 01/03 02/03 03/03

Injection Pump |

Mazda parts catalog

Parts > Mazda 323 > 1995-08 > Diesel-engine Supplement > Injection Pump

Search by part number:

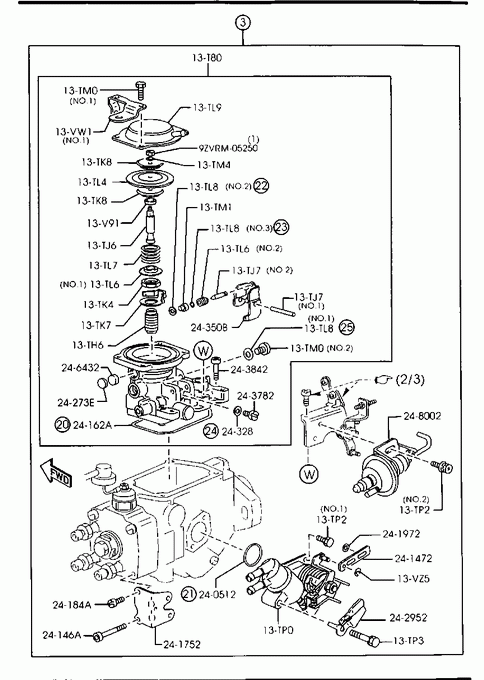

Injection Pump(diesel)

COMPENSATOR,BOOST

Part Number	Qty.	Specifications	Price
Y70713T80	1

» 13TH6

BUSH

Part Number	Qty.	Specifications	Price
Y70113TH6	1		€ 60,69

» 13TJ6

PIN,ADUSTING

Part Number	Qty.	Specifications	Price
Y70113TJ6	1		€ 69,02

» 13TJ7

Part Number	Qty.	Specifications	Price
Y70113TJ7	1	ILLUST. NO.1	€ 1,75
Y70113TL0	1	ILLUST. NO.2	€ 4,83

» 13TK4

NUT

Part Number	Qty.	Specifications	Price
Y70113TK4	1		€ 2,68

» 13TK7

PLATE

Part Number	Qty.	Specifications	Price
Y70113TK7	1

» 13TK8

PLATE

Part Number	Qty.	Specifications	Price
Y70113TK8	2

» 13TL4

DIAPHRAGM

Part Number	Qty.	Specifications	Price
Y70113TL4	1		€ 21,43

» 13TL6

NUT

Part Number	Qty.	Specifications	Price
Y70113TL6	1	ILLUST. NO.1	€ 12,34
Y70213TL6	1	ILLUST. NO.2	€ 10,23

» 13TL7

SPRING

Part Number	Qty.	Specifications	Price
Y70713TL7	1		€ 7,84

» 13TL8

GASKET

Part Number	Qty.	Specifications	Price
Y70113TL8	1	ILLUST. NO.1	€ 0,97
Y70113TM8	1	ILLUST. NO.2	€ 1,14
Y70113TM9	1	ILLUST. NO.3	€ 2,29
Y70713VJ1	5	ILLUST. NO.4	€ 2,52

» 13TL9

COVER

Part Number	Qty.	Specifications	Price
Y70113TL9	1		€ 34,68

» 13TM0

BOLT

Part Number	Qty.	Specifications	Price
Y70113TM0	4	ILLUST. NO.1	€ 7,99
Y70213TM0	1	ILLUST. NO.2	€ 7,96
Y70313TM0	7	ILLUST. NO.3	€ 7,99

» 13TM1

SPACER

Part Number	Qty.	Specifications	Price
Y70113TM1	1		€ 10,85

» 13TM4

WASHER,SPRING

Part Number	Qty.	Specifications	Price
Y70113TM4	1		€ 2,04

» 13TP0

LEVER,C.S.D.-F.I.PUMP

Part Number	Qty.	Specifications	Price
Y70113TP0	1	- 950901 BA1* -307316**	€ 441,71
Y70313TP0	1	950901 - BA1307316-*

» 13TP2

BOLT

Part Number	Qty.	Specifications	Price
Y70113TP2	1	ILLUST. NO.1	€ 1,34
Y70113TR2	2	ILLUST. NO.2	€ 2,04

» 13TP3

BOLT,PUMP-FUEL INJECTION

Part Number	Qty.	Specifications	Price
Y70113TP3	1	'A'	€ 2,13

» 13V91

SHIM

Part Number	Qty.	Specifications	Price
Y70113VB1	1	L=3.7MM
Y70113VB2	1	L=3.9MM
Y70113VB3	1	L=4.1MM
Y70113VB4	1	L=4.3MM
Y70113VB5	1	L=4.5MM
Y70113VB6	1	L=4.7MM
Y70113VB7	1	L=4.9MM
Y70113VB8	1	L=5.1MM
Y70113VB9	1	L=5.3MM
Y70213VB1	1	L=2.7MM
Y70213VB2	1	L=2.9MM
Y70213VB3	1	L=3.1MM
Y70213VB4	1	L=3.3MM
Y70213VB5	1	L=3.5MM
Y70213VB6	1	L=2.8MM
Y70213VB7	1	L=3.0MM
Y70213VB8	1	L=3.2MM
Y70213VB9	1	L=3.4MM
Y70313VB1	1	L=3.6MM
Y70313VB2	1	L=3.8MM
Y70313VB3	1	L=4.0MM
Y70313VB4	1	L=4.2MM
Y70313VB5	1	L=4.4MM
Y70313VB6	1	L=4.6MM
Y70313VB7	1	L=4.8MM
Y70313VB8	1	L=5.0MM
Y70313VB9	1	L=5.2MM
Y70413VB1	1	L=5.4MM
Y70413VB2	1	L=5.5MM
Y70413VB3	1	L=5.6MM
Y70413VB4	1	L=1.8MM
Y70413VB5	1	L=2.0MM
Y70413VB6	1	L=2.1MM
Y70413VB7	1	L=2.2MM
Y70413VB8	1	L=2.3MM
Y70413VB9	1	L=2.4MM
Y70513VB1	1	L=2.5MM
Y70513VB2	1	L=2.6MM
Y70513VB3	1	L=2.7MM
Y70513VB4	1	L=2.8MM
Y70513VB5	1	L=2.9MM
Y70513VB6	1	L=6.0MM
Y70513VB7	1	L=6.1MM
Y70513VB8	1	L=6.2MM
Y70513VB9	1	L=6.3MM
Y70613VB1	1	L=6.4MM
Y70613VB2	1	L=6.5MM
Y70613VB3	1	L=6.6MM
Y70613VB4	1	L=6.7MM
Y70613VB5	1	L=6.8MM
Y70613VB6	1	L=6.9MM
Y70613VB7	1	L=7.0MM
Y70613VB8	1	L=1.9MM

» 13VW1

BRACKET

Part Number	Qty.	Specifications	Price
Y70113VW1	1	ILLUST. NO.1
Y70113VZ6	1	ILLUST. NO.2 - 950901 BA1* -307316**
Y70513VZ6	1	ILLUST. NO.2 950901 - BA1307316-*

» 13VZ5

RING,SNAP

Part Number	Qty.	Specifications	Price
Y70113VZ5	2

» 240512

RING,'O'

Part Number	Qty.	Specifications	Price
Y70113TC8	3

» 24146A

BOLT,SOCKET HEAD

Part Number	Qty.	Specifications	Price
Y70213TR1	1		€ 3,96

» 241472

BRACKET

Part Number	Qty.	Specifications	Price
Y70113TP8	1		€ 12,18

» 24162A

RING SEAL

Part Number	Qty.	Specifications	Price
Y70113VM6	1		€ 4,19

» 241752

BRACKET

Part Number	Qty.	Specifications	Price
Y70113TR4	1		€ 8,68

» 24184A

SCREW

Part Number	Qty.	Specifications	Price
Y70113TP6	1		€ 6,21

» 241972

COLLAR

Part Number	Qty.	Specifications	Price
Y70113TP4	1		€ 0,60

» 24273E

PLUG

Part Number	Qty.	Specifications	Price
Y70113TM6	1		€ 3,79

» 242952

BRACKET

Part Number	Qty.	Specifications	Price
Y70213VW1	1

» 24328

GASKET

Part Number	Qty.	Specifications	Price
Y70113TM3	2		€ 0,83

» 24350B

LEVER

Part Number	Qty.	Specifications	Price
Y70113TG9	1		€ 43,40

» 243782

PLUG

Part Number	Qty.	Specifications	Price
Y70113TK2	2		€ 2,24

» 243842

BOLT,SOCKET HEAD

Part Number	Qty.	Specifications	Price
Y70113VL8	4		€ 3,54

» 246432

ELEMENT

Part Number	Qty.	Specifications	Price
Y70113T82	1

» 248002

ACTUATOR,INJECTION PUMP

Part Number	Qty.	Specifications	Price
Y70713TR1	1		€ 113,28

» 90901

NUT

Part Number	Qty.	Specifications	Price
9ZVRM05250	1		€ 0,95

Injection Pump(diesel)
