Injection Pump 01/03 02/03 03/03

Injection Pump |

Mazda parts catalog

Parts > Mazda 323 > 1995-08 > Diesel-engine Supplement > Injection Pump

Search by part number:

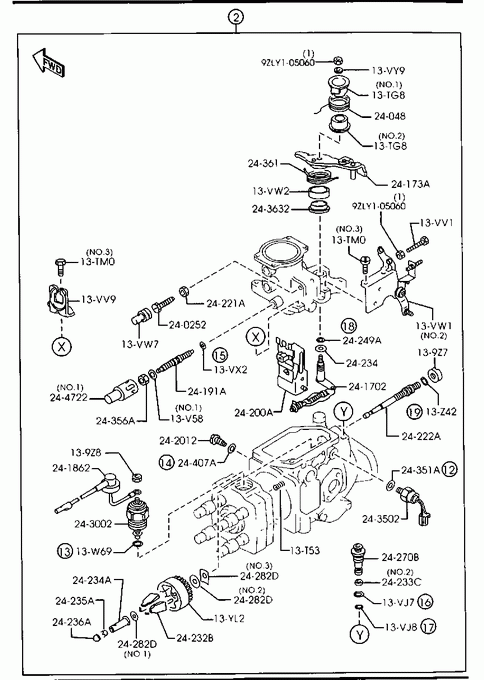

Injection Pump(diesel)

NUT

Part Number	Qty.	Specifications	Price
Y70113VY2	1		€ 8,33

» 139Z8

NUT

Part Number	Qty.	Specifications	Price
Y70113VY5	1		€ 3,64

» 13T53

SPRING

Part Number	Qty.	Specifications	Price
Y70113T49	2		€ 4,36

» 13TG8

SEAT,SPRING

Part Number	Qty.	Specifications	Price
Y70113TG8	1	ILLUST. NO.1	€ 2,60
Y70213TG8	1	ILLUST. NO.2	€ 2,62

» 13TM0

BOLT

Part Number	Qty.	Specifications	Price
Y70113TM0	4	ILLUST. NO.1	€ 7,99
Y70213TM0	1	ILLUST. NO.2	€ 7,96
Y70313TM0	7	ILLUST. NO.3	€ 7,99

» 13V58

GASKET

Part Number	Qty.	Specifications	Price
Y70113V58	4	ILLUST. NO.2	€ 1,81
Y70113V61	1	ILLUST. NO.3	€ 3,00
Y70213VX3	1	ILLUST. NO.1	€ 1,48

» 13VJ7

PIN,COMPRESSOR BRACKET

Part Number	Qty.	Specifications	Price
Y70113VJ7	1

» 13VJ8

RING'O',COMP. BRACKET

Part Number	Qty.	Specifications	Price
Y70113VJ8	1

» 13VV1

BOLT

Part Number	Qty.	Specifications	Price
Y70113VV1	1		€ 6,92

» 13VV9

BRKT,ACCEL.WIRE-F.I.PUMP

Part Number	Qty.	Specifications	Price
Y70113VV9	1		€ 14,46

» 13VW1

BRACKET

Part Number	Qty.	Specifications	Price
Y70113VW1	1	ILLUST. NO.1
Y70113VZ6	1	ILLUST. NO.2 - 950901 BA1* -307316**
Y70513VZ6	1	ILLUST. NO.2 950901 - BA1307316-*

» 13VW2

BUSH

Part Number	Qty.	Specifications	Price
Y70113VW2	1		€ 3,59

» 13VW7

CAP

Part Number	Qty.	Specifications	Price
Y70113VW7	1	L=18MM
Y70213VW7	1	L=21MM
Y70313VW7	1	L=24MM
Y70413VW7	1	L=27MM

» 13VX2

GASKET

Part Number	Qty.	Specifications	Price
Y70213VX2	1		€ 1,77

» 13VY9

PLATE,RETURN PIPE-F.I.P.

Part Number	Qty.	Specifications	Price
Y70113VY9	1	ID=6

» 13W69

RING,'O'

Part Number	Qty.	Specifications	Price
Y70113VZ2	1

» 13YL2

HOLDER,LEAD WIRE-CARB

Part Number	Qty.	Specifications	Price
Y70113VL4	1		€ 66,45

» 13Z42

RING,'E'-COVER WING NUT

Part Number	Qty.	Specifications	Price
Y70113VM7	1		€ 1,25

» 240252

BOLT

Part Number	Qty.	Specifications	Price
Y70113VV2	1		€ 6,92

» 24048

SPRING

Part Number	Qty.	Specifications	Price
Y70113T44	1	- 950901 BA1* -307316**	€ 6,95
Y70713T44	1	950901 - BA1307316-*

» 241702

SHAFT,CONTROL

Part Number	Qty.	Specifications	Price
Y70113VL2	1	- 950901 BA1* -307316**	€ 161,88
Y70713VL2	1	950901 - BA1307316-*

» 24173A

LEVER

Part Number	Qty.	Specifications	Price
Y70113VR1	1	PRINT 107	€ 40,51
Y70213VR1	1	PRINT 118	€ 40,51

» 241862

WIRE

Part Number	Qty.	Specifications	Price
Y70713VZ9	1		€ 12,23

» 24191A

SCREW,LOAD

Part Number	Qty.	Specifications	Price
Y70413VM2	1	L=53MM
Y70513VM2	1	L=55MM W/O IMMOBILIZER SYSTEM
Y70613VM2	1	L=57MM W/O IMMOBILIZER SYSTEM

» 24200A

LEVER,GOVERNOR

Part Number	Qty.	Specifications	Price
Y70713VM0	1		€ 172,83

» 242012

BOLT,PIVOT

Part Number	Qty.	Specifications	Price
Y70113VM5	2		€ 9,22

» 24221A

NUT

Part Number	Qty.	Specifications	Price
Y70113VX7	1		€ 3,34

» 24222A

SHAFT,GOVERNOR

Part Number	Qty.	Specifications	Price
Y70113VL3	1		€ 81,08

» 24232B

FLYWEIGHT

Part Number	Qty.	Specifications	Price
Y70113VL5	1		€ 83,96

» 24233C

SPACER

Part Number	Qty.	Specifications	Price
Y70113VC7	1	ILLUST. NO.1	€ 3,46
Y70113VK2	1	ILLUST. NO.2	€ 5,97

» 24234

PLATE

Part Number	Qty.	Specifications	Price
Y70113VY8	1

» 24234A

SLEEVE,GOVERNOR

Part Number	Qty.	Specifications	Price
Y70713VL6	1		€ 62,89

» 24235A

CAP,LOCK

Part Number	Qty.	Specifications	Price
Y70113VL7	1		€ 1,97

» 24236A

PLUG,CLOSING

Part Number	Qty.	Specifications	Price
Y70113VN1	1	L=5.2MM
Y70113VN2	1	L=5.3MM
Y70113VN3	1	L=5.4MM
Y70113VN4	1	L=5.5MM
Y70113VN5	1	L=2.1MM
Y70113VN6	1	L=2.3MM
Y70113VN7	1	L=2.5MM
Y70113VN8	1	L=2.7MM
Y70113VN9	1	L=2.9MM
Y70213VN1	1	L=3.1MM
Y70213VN2	1	L=3.3MM
Y70213VN3	1	L=3.5MM
Y70213VN4	1	L=3.7MM
Y70213VN5	1	L=3.9MM
Y70213VN6	1	L=4.1MM
Y70213VN7	1	L=4.3MM
Y70213VN8	1	L=4.5MM
Y70213VN9	1	L=4.7MM
Y70313VN1	1	L=4.9MM
Y70313VN2	1	L=5.1MM
Y70313VN3	1	L=2.2MM
Y70313VN4	1	L=2.4MM
Y70313VN5	1	L=2.6MM
Y70313VN6	1	L=2.8MM
Y70313VN7	1	L=3.0MM
Y70313VN8	1	L=3.2MM
Y70313VN9	1	L=3.4MM
Y70413VN1	1	L=3.6MM
Y70413VN2	1	L=3.8MM
Y70413VN3	1	L=4.0MM
Y70413VN4	1	L=4.2MM
Y70413VN5	1	L=4.4MM
Y70413VN6	1	L=4.6MM
Y70413VN7	1	L=4.8MM
Y70413VN8	1	L=5.0MM

» 24249A

RING,'O'

Part Number	Qty.	Specifications	Price
Y70113VZ1	1		€ 3,51

» 24270B

VALVE,REGULATING

Part Number	Qty.	Specifications	Price
Y70113VF2	1		€ 72,44

» 24282D

SHIM

Part Number	Qty.	Specifications	Price
Y70113T21	1	ILLUST. NO.1	€ 3,95
Y70113T22	1	ILLUST. NO.2	€ 4,04
Y70113T23	1	T=1.05MM ILLUST. NO.3	€ 3,96
Y70113T24	1	T=1.25MM ILLUST. NO.3	€ 3,96
Y70113T25	1	T=1.45MM ILLUST. NO.3	€ 3,96
Y70113T26	1	T=1.65MM ILLUST. NO.3	€ 3,96
Y70113T27	1	T=1.85MM ILLUST. NO.3	€ 3,96
Y70113T28	1	T=1.15MM ILLUST. NO.3	€ 3,96
Y70113T29	1	T=1.35MM ILLUST. NO.3	€ 3,96
Y70213T23	1	T=1.55MM ILLUST. NO.3	€ 3,96
Y70213T24	1	T=1.75MM ILLUST. NO.3	€ 3,96

» 243002

VALVE,MAGNET

Part Number	Qty.	Specifications	Price
Y70113VF4	1		€ 192,45

» 243502

PICK UP

Part Number	Qty.	Specifications	Price
Y70113TS0	1		€ 173,46

» 24351A

RING,'O'

Part Number	Qty.	Specifications	Price
Y70113TS2	1		€ 1,78

» 24356A

NUT

Part Number	Qty.	Specifications	Price
Y70113VX8	1		€ 2,10

» 24361

SPRING

Part Number	Qty.	Specifications	Price
Y70113T45	1	- 950901 BA1* -307316**	€ 6,95
Y70713T45	1	950901 - BA1307316-*

» 243632

BUSH

Part Number	Qty.	Specifications	Price
Y70113VW4	1		€ 3,59

» 24407A

GASKET

Part Number	Qty.	Specifications	Price
Y70213VX1	2		€ 0,88

» 244722

CAP

Part Number	Qty.	Specifications	Price
Y70113V11	1	ILLUST. NO.2	€ 41,46
Y70113VW6	1	L=16.5MM ILLUST. NO.1

» 90901

NUT

Part Number	Qty.	Specifications	Price
9ZLY105060	1		€ 0,88

Injection Pump(diesel)
