Mazda XEDOS-9 TA 2000-08 Mazda Fuel Tank 01/03 02/03 03/03

Mazda parts catalog

Parts > Mazda XEDOS-9 > 2000-08 > Chassis Piping & Fuel Tank > Fuel Tank

Search by part number:

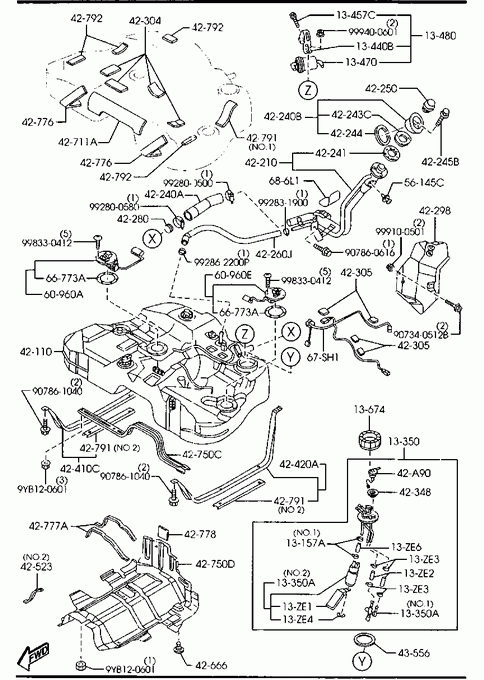

Fuel Tank
01/03
02/03
03/03

» 13157A CLIP

Part Number Qty. Specifications Price
857413157 8 ILLUST. NO.2
€ 2,58
AZ2813157 2 ILLUST. NO.1
€ 3,64

» 13350 PUMP,FUEL

Part Number Qty. Specifications Price
KLK11335Z 1
€ 397,13

» 13350A PUMP,FUEL-SUB

Part Number Qty. Specifications Price
KL0213350 1 DENSO
ILLUST. NO.1
€ 50,43
KL4713350 1 ILLUST. NO.2
€ 278,06

» 13440B BRACKET,FUEL FILTER

Part Number Qty. Specifications Price
JE4813484 1
€ 9,05

» 13457C BOLT

Part Number Qty. Specifications Price
B35913485 1
€ 3,04

» 13470 FILTER,FUEL

Part Number Qty. Specifications Price
JE4813480 1
€ 17,70

» 13480 FILTER&BODY,FUEL

Part Number Qty. Specifications Price
JE4820490 1 C (JE48-13-480)
€ 19,86

» 13674 NUT,UNION

Part Number Qty. Specifications Price
T00142167 1
€ 13,42

» 13ZE1 FILTER,FUEL PUMP

Part Number Qty. Specifications Price
KL4713ZE1 1
€ 66,01

» 13ZE2 HOSE,FUEL

Part Number Qty. Specifications Price
D53013ZE2 2

» 13ZE3 CLIP,HOSE-FUEL HOSE

Part Number Qty. Specifications Price
B62K13ZE3 4

» 13ZE4 WASHER,LOCK-PUMP FILTER

Part Number Qty. Specifications Price
FEH213ZE4 1 DENSO
€ 3,07

» 13ZE6 HOSE,FUEL PUMP-IN TANK

Part Number Qty. Specifications Price
KL1913ZE6 1
€ 14,33

» 42110 TANK,FUEL

Part Number Qty. Specifications Price
TC9142110 1

» 42210 PIPE,FILLER

Part Number Qty. Specifications Price
TA0142210C 1 AN (TA01-42-210D)
- 020901
TA*2** -402040
TA0142210D 1 020901 -
TA*2**402040- € 181,88

» 42240A HOSE,JOINT

Part Number Qty. Specifications Price
TB9442231 1

» 42240B REINF.,FILLER PIPE

Part Number Qty. Specifications Price
H26042240A 1
€ 34,13

» 42241 GASKET,FILLER PIPE

Part Number Qty. Specifications Price
086642366B 1
€ 2,91

» 42243C GASKET'A',REINFORCEMENT

Part Number Qty. Specifications Price
GE6042243 1
€ 4,39

» 42244 GASKET'B',DUST COVER

Part Number Qty. Specifications Price
H40542244 1

» 42245B BOLT,DUST COVER

Part Number Qty. Specifications Price
T00142245 3
€ 1,37

» 42250 CAP,FILLER

Part Number Qty. Specifications Price
TC9142250 1 A (TC91-42-250A)
- 010101
TA*2** -400952 € 22,32
TC9142250A 1 010101 -
TA*2**400952- € 23,23

» 42260J HOSE,BREATHER

Part Number Qty. Specifications Price
TB9442232A 1

» 42280 VALVE,NON RETURN

Part Number Qty. Specifications Price
D06142270 1
€ 16,04

» 42298 PROTECTOR,FILLER HOSE

Part Number Qty. Specifications Price
T00142298 1
€ 31,72

» 42304 PAD,FUEL TANK

Part Number Qty. Specifications Price
B45542761 5 80X70X8
€ 2,07

» 42305 PAD,FUEL TANK

Part Number Qty. Specifications Price
T00142765 5 60 X 60
€ 3,22

» 42348 GROMMET

Part Number Qty. Specifications Price
BW0A42A95 1
€ 3,48

» 42410C BAND(R),TANK FIX.

Part Number Qty. Specifications Price
T00142710C 1

» 42420A BAND(L),TANK FIX.

Part Number Qty. Specifications Price
T00142720C 1

» 42523 PAD,FUEL TANK

Part Number Qty. Specifications Price
B45542764 1 100 X 70
ILLUST. NO.1
€ 2,07
T00142767 1 180 X 20
ILLUST. NO.2
€ 3,84

» 42666 CLIP

Part Number Qty. Specifications Price
T00142634A 1
€ 1,95

» 42711A PAD

Part Number Qty. Specifications Price
T00142769 1 450 X 125 X 5
€ 6,84

» 42750C STRAP,FUEL TANK

Part Number Qty. Specifications Price
T00142731 1
€ 22,57

» 42750D INSULATOR,FUEL TANK

Part Number Qty. Specifications Price
T00142740B 1
€ 109,25

» 42776 PAD'A',FUEL TANK

Part Number Qty. Specifications Price
T00142776B 2 225 X 100 X 5

» 42777A PAD'B',FUEL TANK

Part Number Qty. Specifications Price
T00142777 2 350 X 20
€ 4,53

» 42778 PAD'C',FUEL TANK

Part Number Qty. Specifications Price
T00142778 1 20 X 20
€ 0,82

» 42791 PAD,FUEL TANK

Part Number Qty. Specifications Price
TA0142762 1 240 X 60 X 6
ILLUST. NO.1

TA0142765A 2 520 X 40 X 5
ILLUST. NO.2

» 42792 PAD,FUEL TANK

Part Number Qty. Specifications Price
TA0142761 4 100 X 60 X 4
€ 3,50

» 42A90 VALVE,FUEL VAPOR

Part Number Qty. Specifications Price
BW0G42A90 1
€ 14,32

» 43556 PACKING

Part Number Qty. Specifications Price
T00142166 1
€ 19,14

» 56145C CLIP,MUD GUARD

Part Number Qty. Specifications Price
BC1D56145 1
€ 0,64

» 60960A GAUGE,FUEL TANK

Part Number Qty. Specifications Price
T06060960 1 AN (T060-60-960A)
- 001101
TA*2** -400619 € 149,80
T06060960A 1 001101 -
TA*2**400619-

» 60960E GAUGE,FUEL TANK-INNER

Part Number Qty. Specifications Price
T06060970 1

» 66773A GASKET

Part Number Qty. Specifications Price
T00160962 2
€ 7,17

» 67SH1 CORD,SHORT

Part Number Qty. Specifications Price
TA0167SH1C 1
€ 49,51

» 686L1 COVER'A',HOLE

Part Number Qty. Specifications Price
GA7B686L1 1
€ 2,14

» 90720 SCREW

Part Number Qty. Specifications Price
907340512B 1
€ 0,86

» 90720 SCREW

Part Number Qty. Specifications Price
998330412 1
€ 0,44

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860616 1
€ 2,41

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907861040 1
€ 2,89

» 90901 NUT

Part Number Qty. Specifications Price
9YB120601 1
€ 2,90

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601 1
€ 1,28

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992800500 1
€ 7,08

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992800580 1
€ 7,91

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992831900 1
€ 1,88

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992862200P 1
€ 2,73

» 99910 GROMMET,SCREW

Part Number Qty. Specifications Price
999100501 1
€ 1,33
