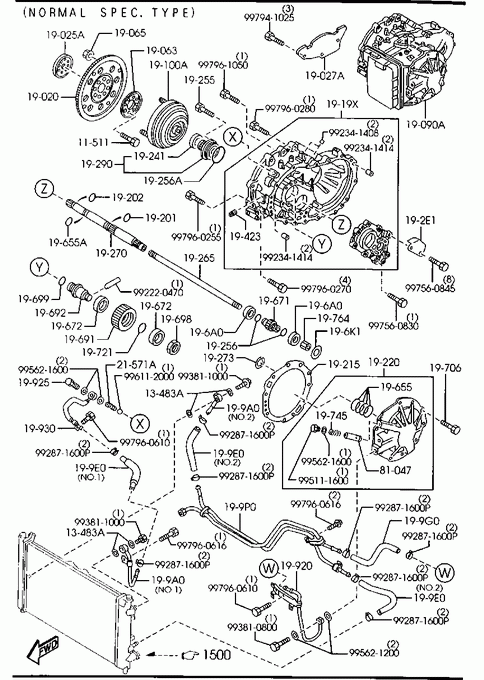

Automatic Transmission Torque Converter, Oil Pump & Pipings 01/02 (COLD SPEC.TYPE) 02/02 (NORMAL SPEC.TYPE)

Automatic Transmission Torque Converter, Oil Pump & Pipings |

Mazda parts catalog

Parts > Mazda XEDOS-9 > 2000-08 > Gasoline-engine V6-cylinder Transmission > Automatic Transmission Torque Converter, Oil Pump & Pipings

Search by part number:

Automatic Transmission Torque Converter, Oil Pump & Pipings

01/02 (COLD SPEC.TYPE)
02/02 (NORMAL SPEC.TYPE)

BOLT,LOCK-FLYWHEEL

Part Number	Qty.	Specifications	Price
KL0111511	8		€ 2,52

» 13483A

GASKET,FUEL DIS.

Part Number	Qty.	Specifications	Price
N32613483	4	NORMAL SPEC. TYPE	€ 2,03

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FU9B19020G	1		€ 79,70

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
FU9B19025	1		€ 30,98

» 19027A

COVER,UNDER

Part Number	Qty.	Specifications	Price
FW1219027	1		€ 3,16

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
FU9B19063	1		€ 2,31

» 19065

NUT

Part Number	Qty.	Specifications	Price
FU5119065	4		€ 1,35

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FU2V19090L	1	A (FU2V-19-090M) - 000901 *TA2 -400092	€ 3829,61
FU2V19090M	1	A (FU2V-19-090N) 000901 - 011001 *TA2400092-401550
FU2V19090N	1	AN (FU2V-19-090P) 011001 - 020408 *TA2401550-401896
FU2V19090P	1	020408 - *TA2401896-

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
GF0119100B	1		€ 1271,34

» 1919X

HSG.SET,CONV. & COVER

Part Number	Qty.	Specifications	Price
FU2B1919XB	1

» 19201

RING,'O'

Part Number	Qty.	Specifications	Price
FU0119201A	1		€ 2,35

» 19202

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU5019202A	1		€ 2,21

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
BN9719705	1	NON ASBESTOS	€ 7,48

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FU9B19700A	1	AN (FU9B-19-700B)	€ 680,35

» 19241

SEAL,OIL

Part Number	Qty.	Specifications	Price
FU0119241A	1		€ 9,84

» 19255

BOLT

Part Number	Qty.	Specifications	Price
FU9A19255A	8		€ 0,53

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119212B	2		€ 3,34

» 19256A

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119242A	1		€ 5,92

» 19265

SHAFT,OIL PUMP

Part Number	Qty.	Specifications	Price
FU2B19761	1		€ 26,39

» 19270

SHAFT,TURBINE

Part Number	Qty.	Specifications	Price
FU2B19270	1	AN (FU2B-19-270A)	€ 122,61

» 19273

RING,SNAP

Part Number	Qty.	Specifications	Price
FU5019755A	1		€ 1,00

» 19290

COVER,BEARING

Part Number	Qty.	Specifications	Price
FU9B192A0A	1	AN (FU9B-19-2A0B)	€ 70,14

» 192E1

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
FU32192E1A	1		€ 0,58

» 19423

PLUG

Part Number	Qty.	Specifications	Price
FU3119423	4		€ 1,19

» 19655

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119701D	4		€ 7,16

» 19655A

RING,SEAL

Part Number	Qty.	Specifications	Price
FU5019762A	1		€ 3,37

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FU2B19671	1		€ 91,12

» 19672

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FU31196B0A	2		€ 18,93

» 19691

GEAR,IDLE

Part Number	Qty.	Specifications	Price
FU2B19261	1		€ 82,75

» 19692

SHAFT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FU2B19262	1		€ 31,90

» 19698

NUT,IDLE GEAR

Part Number	Qty.	Specifications	Price
GF0119264	1		€ 5,48

» 19699

RING,'O'

Part Number	Qty.	Specifications	Price
FU9A19266	1		€ 1,32

» 196A0

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FU9A196A0	2		€ 19,82

» 196K1

SHIM,OUTPUT GEAR

Part Number	Qty.	Specifications	Price
FU31196M1	1	T=0.35MM	€ 5,33
FU31196M2	1	T=0.4MM	€ 5,33
FU31196M3	1	T=0.45MM	€ 5,33
FU9A196J8	1	T=0.5MM	€ 3,14
FU9A196J9	1	T=0.55MM	€ 3,76
FU9A196K1	1	T=0.6MM	€ 3,76
FU9A196K2	1	T=0.65MM	€ 3,76
FU9A196K3	1	T=0.7MM	€ 3,84
FU9A196K4	1	T=0.75MM	€ 3,76
FU9A196K5	1	T=0.8MM	€ 3,76
FU9A196K6	1	T=0.85MM	€ 3,76
FU9A196K7	1	T=0.9MM	€ 3,76
FU9A196K8	1	T=0.95MM	€ 3,92
FU9A196K9	1	T=1.0MM	€ 3,76
FU9A196L1	1	T=1.05MM	€ 3,76
FU9A196L2	1	T=1.1MM	€ 3,92
FU9A196L3	1	T=1.15MM	€ 3,76
FU9A196L4	1	T=1.2MM	€ 3,76
FU9A196L5	1	T=1.25MM	€ 3,76
FU9A196L6	1	T=1.3MM	€ 3,76
FU9A196L7	1	T=1.35MM	€ 3,84
FU9A196L8	1	T=1.4MM	€ 3,76
FU9A196M4	1	T=0.375MM	€ 3,98
FU9A196M5	1	T=0.425MM	€ 3,90
FU9A196M6	1	T=0.475MM	€ 3,90
FU9A196M7	1	T=0.525MM	€ 4,06
FU9A196M8	1	T=0.575MM	€ 3,90
FU9A196M9	1	T=0.625MM	€ 3,90
FU9A196N1	1	T=0.675MM	€ 3,90
FU9A196N2	1	T=0.725MM	€ 3,98
FU9A196N3	1	T=0.775MM	€ 3,90
FU9A196N4	1	T=0.825MM	€ 3,90
FU9A196N5	1	T=0.875MM	€ 4,06
FU9A196N6	1	T=0.925MM	€ 3,90
FU9A196N7	1	T=0.975MM	€ 3,90
FU9A196N8	1	T=1.025MM	€ 3,90
FU9A196N9	1	T=1.075MM	€ 3,90
FU9A196P1	1	T=1.125MM	€ 3,90
FU9A196P2	1	T=1.175MM	€ 3,90
FU9A196P3	1	T=1.225MM	€ 3,90
FU9A196P4	1	T=1.275MM	€ 3,90
FU9A196P5	1	T=1.325MM	€ 3,90
FU9A196P6	1	T=1.375MM	€ 3,90

» 19706

BOLT

Part Number	Qty.	Specifications	Price
FU0119706B	10		€ 0,92

» 19721

SHIM

Part Number	Qty.	Specifications	Price
FU9A192F5	1	T=4.540MM	€ 3,84
FU9A192F6	1	T=4.575MM	€ 3,76
FU9A192F7	1	T=4.610MM	€ 3,76
FU9A192F8	1	T=4.645MM	€ 3,84
FU9A192F9	1	T=4.680MM	€ 3,84
FU9A192G1	1	T=4.715MM	€ 3,92
FU9A192G2	1	T=4.750MM	€ 3,92
FU9A192G3	1	T=4.785MM	€ 3,84
FU9A192G4	1	T=4.820MM	€ 3,84
FU9A192G5	1	T=4.855MM	€ 3,84
FU9A192G6	1	T=4.890MM	€ 3,92
FU9A192G7	1	T=4.925MM	€ 3,92
FU9A192G8	1	T=4.960MM	€ 3,76
FU9A192G9	1	T=4.995MM	€ 3,92
FU9A192H1	1	T=5.030MM	€ 3,92
FU9A192H2	1	T=5.065MM	€ 3,92
FU9A192H3	1	T=5.100MM	€ 3,92
FU9A192H4	1	T=5.135MM	€ 3,84
FU9A192H5	1	T=5.170MM	€ 3,84
FU9A192H6	1	T=5.205MM	€ 3,84
FU9A192H7	1	T=5.240MM	€ 3,84
FU9A192H8	1	T=5.275MM	€ 3,84
FU9A192H9	1	T=5.310MM	€ 3,84

» 19745

SPRING

Part Number	Qty.	Specifications	Price
FU6119736A	1		€ 1,48

» 19764

SUPPORTER,BEARING-OUTPUT

Part Number	Qty.	Specifications	Price
FU3219764A	1		€ 6,71

» 19920

PIPE,OIL

Part Number	Qty.	Specifications	Price
FU2E19920B	1		€ 20,67

» 19925

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
FU3119925A	1		€ 2,49

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
FU9A19930G	1		€ 20,32

» 199A0

PIPE,OIL-OILPUMP

Part Number	Qty.	Specifications	Price
FU2B199A0B	1	ILLUST. NO.1	€ 36,77
FX01199A0A	1	ILLUST. NO.2 NORMAL SPEC. TYPE

» 199E0

HOSE,OIL

Part Number	Qty.	Specifications	Price
FU2B199E0A	1	ILLUST. NO.1	€ 24,05
FX01199E0A	2	ILLUST. NO.2 NORMAL SPEC. TYPE	€ 12,82

» 199G0

HOSE,OIL

Part Number	Qty.	Specifications	Price
FU2B199G0C	1	NORMAL SPEC. TYPE
FU2F199G0B	1	COLD SPEC. TYPE	€ 24,05

» 199P0

PIPE,OIL

Part Number	Qty.	Specifications	Price
FU2B199P0D	1	AN (FU2B-19-9P0E) NORMAL SPEC. TYPE - 020101 *TA2 -401742
FU2B199P0E	1	NORMAL SPEC. TYPE 020101 - *TA2401742-

» 21571A

SPRING,PRESSURE HOLD

Part Number	Qty.	Specifications	Price
FU3121571A	1		€ 1,02

» 81047

SPOOL

Part Number	Qty.	Specifications	Price
FU6119716D	1		€ 13,58

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997560845	1		€ 2,89

» 99222

PIN,SPRING

Part Number	Qty.	Specifications	Price
992220470	1		€ 1,50

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341408	1		€ 1,94

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341414	1		€ 1,92

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992871600P	1		€ 2,93

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111600	1		€ 0,86

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993810800	1		€ 2,65

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993811000	1		€ 2,97

» 99520

BALL

Part Number	Qty.	Specifications	Price
996112000	1		€ 1,85

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621200	1		€ 1,21

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621600	1		€ 1,65

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997560830	1		€ 2,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997941025	1		€ 1,61

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960255	1		€ 1,92

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960270	1		€ 1,92

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960280	1		€ 1,92

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050	1		€ 3,15
