Air Conditioner 01/02 (PIPE & CONDENSER) 02/02 (BRACKET & CLIP)

Air Conditioner |

Mazda parts catalog

Parts > Mazda XEDOS-9 > 1998-08 > Body Interior Trim > Air Conditioner

Search by part number:

Air Conditioner(2000cc & 2500cc)
01/02 (PIPE & CONDENSER)

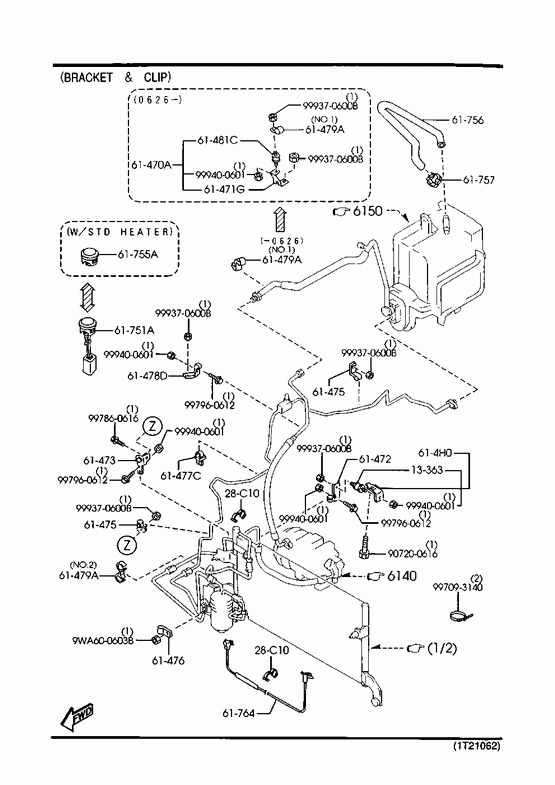

02/02 (BRACKET & CLIP)

» 13363 RUBBER,INSULATION

Part Number Qty. Specifications Price
RFG113363 1
€ 6,43

» 28C10 BAND,PIPE

Part Number Qty. Specifications Price
JE4818868 2
€ 2,18

» 61470A BRACKET,HOSE

Part Number Qty. Specifications Price
T00661470A 1 AN (T060-61-470)
000626 -
TA*2**302070- € 5,76

» 61471G BRACKET,PIPE

Part Number Qty. Specifications Price
T00661471A 1 000626 -
TA*2**302070- € 2,77

» 61472 CLIP,PIPE

Part Number Qty. Specifications Price
T00161472 1
€ 9,26

» 61473 CLIP,PIPE

Part Number Qty. Specifications Price
T00161473A 1 A (T001-61-473B)
- 000323
TA*2** -301944
T00161473B 1 000323 -
TA*2**301944-

» 61475 CLIP,PIPE

Part Number Qty. Specifications Price
GA5R61475 2 A (GA5R-61-475A)
- 000317
TA*2** -301931 € 16,27
GA5R61475A 2 AN (GA5R-61-475B)
000317 -
TA*2**301931- € 16,27

» 61476 CLIP

Part Number Qty. Specifications Price
HG3061476 1 AN (HG30-61-476A)
€ 4,22

» 61477C CLIP

Part Number Qty. Specifications Price
T00161477 1
€ 3,09

» 61478D CLIP

Part Number Qty. Specifications Price
T00161478 1 A (TC44-61-478)
- 991001
TA*2** -301531 € 9,18
TC4461478 1 991001 -
TA*2**301531-

» 61479A CLIP

Part Number Qty. Specifications Price
T00161479 1 ILLUST. NO.2
€ 1,23
T06061473 1 ILLUST. NO.1
000626 -
TA*2**302070-
TA0161479A 1 ILLUST. NO.1
- 000626
TA*2** -302070

» 61481C RUBBER,INSULATOR

Part Number Qty. Specifications Price
B09261481 1 000626 -
TA*2**302070- € 8,95

» 614H0 BRACKET,HOSE

Part Number Qty. Specifications Price
T006614H0C 1
€ 12,16

» 61751A SENSOR,SUN

Part Number Qty. Specifications Price
G56361751 1 W/FULL AUTO HEATER
€ 44,69

» 61755A COVER,SUN SENSOR

Part Number Qty. Specifications Price
C00461799 1 W/STD HEATER
- 990101
TA*2** -300765 € 11,92
C00461799A 1 W/STD HEATER
990101 -
TA*2**300765- € 11,92

» 61756 HOSE,AIR

Part Number Qty. Specifications Price
TA0161756 1 W/FULL AUTO HEATER
€ 20,32

» 61757 SENSOR,INCAR

Part Number Qty. Specifications Price
TA0161757B 1 W/FULL AUTO HEATER
€ 36,90

» 61764 SENSOR,AMBIENT

Part Number Qty. Specifications Price
T00161764A 1
€ 35,48

» 90730 SCREW & WASHER

Part Number Qty. Specifications Price
907200616 1
€ 1,13

» 90901 NUT

Part Number Qty. Specifications Price
999370600B 1
€ 3,81

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601 1
€ 1,28

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
9WA600603B 1

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860616 1
€ 1,54

» 99709 BAND

Part Number Qty. Specifications Price
997093140 1
€ 3,57

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612 1
€ 0,69

Part Number	Qty.	Specifications	Price
T00661470A	1	AN (T060-61-470) 000626 - *TA2302070-	€ 5,76

Part Number	Qty.	Specifications	Price
T00161473A	1	A (T001-61-473B) - 000323 *TA2 -301944
T00161473B	1	000323 - *TA2301944-

Part Number	Qty.	Specifications	Price
GA5R61475	2	A (GA5R-61-475A) - 000317 *TA2 -301931	€ 16,27
GA5R61475A	2	AN (GA5R-61-475B) 000317 - *TA2301931-	€ 16,27

Part Number	Qty.	Specifications	Price
T00161478	1	A (TC44-61-478) - 991001 *TA2 -301531	€ 9,18
TC4461478	1	991001 - *TA2301531-

Part Number	Qty.	Specifications	Price
T00161479	1	ILLUST. NO.2	€ 1,23
T06061473	1	ILLUST. NO.1 000626 - *TA2302070-
TA0161479A	1	ILLUST. NO.1 - 000626 *TA2 -302070

Air Conditioner(2000cc & 2500cc)
