- Parts > Mazda XEDOS-9 > 1996-06 > Body Interior Trim > Front Door Trims & Related Parts
- Search by part number:
-

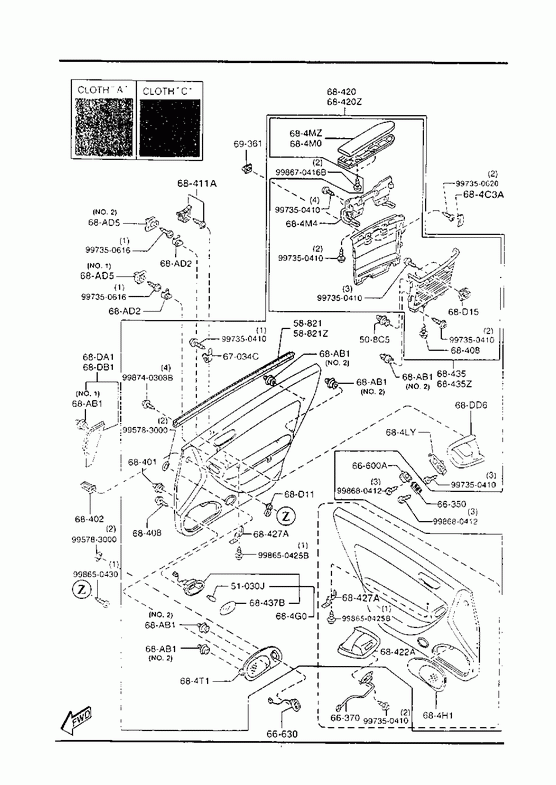

Front Door Trims & Related Parts
-
» 508C5 CLIP Part Number Qty. Specifications Price B467508C5 2 € 2,65 » 51030J BULB Part Number Qty. Specifications Price 997016030 2 12V 3.4W
W/COURTESY LAMP-WHITE€ 1,72 » 58821 WEATHERSTRIP(R),INN. Part Number Qty. Specifications Price T00158821 1 € 37,22 » 58821Z WEATHERSTRIP(L),INN. Part Number Qty. Specifications Price T00159821 1 € 32,41 » 66350 SWITCH,POWER WINDOW Part Number Qty. Specifications Price TA0466350A 1 € 350,52 » 66370 SWITCH,POWER WINDOW Part Number Qty. Specifications Price T00166370 1 » 66600A SWITCH,RMT.MIRROR Part Number Qty. Specifications Price TA0166600A 1 W/O POWER FOLD € 107,63 TA0466600B 1 W/POWER FOLD € 107,63 » 66630 SWITCH,LID OPENER Part Number Qty. Specifications Price TA0466630A 1 » 67034C CLIP Part Number Qty. Specifications Price S08367034 1 € 1,44 » 68401 FASTENER,DOOR TRIM Part Number Qty. Specifications Price H00168401 2 € 1,41 » 68402 GROMMET,SCREW Part Number Qty. Specifications Price FA5468402 2 € 1,31 » 68408 SCREW,TAPPING Part Number Qty. Specifications Price T00168408 34 € 7,23 » 68411A BRACKET,TRIM Part Number Qty. Specifications Price T00168411C 2 € 2,58 » 68420 TRIM(R),DOOR Part Number Qty. Specifications Price TA026843YC 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE)
- 960717
TA*2** -200169TA026843YD 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE)
960717 - 971001
TA*2**200169-202201TA026843YE 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE)
971001 -
TA*2**202201-TA036843YE 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE)
980301 -
TA*2**202747-TA056843YC 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED)
- 960717
TA*2** -200169TA056843YD 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED)
960717 - 971001
TA*2**200169-202201TA056843YE 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED)
971001 -
TA*2**202201-TA086843YC 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED)
- 960717
TA*2** -200169TA086843YD 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED)
960717 - 971001
TA*2**200169-202201TA086843YE 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED)
971001 -
TA*2**202201-TA616843YC 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE)
- 960717
TA*2** -200169TA616843YD 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE)
960717 - 971001
TA*2**200169-202201TA616843YE 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE)
971001 - 980301
TA*2**202201-202747TB846843YB 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-RED)
- 960717
TA*2** -200169TB846843YC 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-RED)
960717 - 971001
TA*2**200169-202201TB846843YD 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-RED)
971001 -
TA*2**202201-TB936843YC 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-WHITE)
- 960717
TA*2** -200169TB936843YD 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-WHITE)
960717 - 971001
TA*2**200169-202201TB936843YE 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-WHITE)
971001 -
TA*2**202201-» 68420Z TRIM(L),DOOR Part Number Qty. Specifications Price TA026846YF 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE)
980301 -
TA*2**202747-TA056846YC 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED>W/POWER FOLD)
- 960717
TA*2** -200169TA056846YE 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED>W/POWER FOLD)
960717 - 971001
TA*2**200169-202201TA056846YF 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED>W/O POWER FOLD)
980301 -
TA*2**202747-TA076846YC 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE>W/POWER FOLD)
- 960717
TA*2** -200169TA076846YE 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE>W/POWER FOLD)
960717 - 971001
TA*2**200169-202201TA076846YF 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE>W/O POWER FOLD)
980301 -
TA*2**202747-TA086846YC 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED>W/POWER FOLD)
- 960717
TA*2** -200169TA086846YE 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED>W/POWER FOLD)
960717 - 971001
TA*2**200169-202201TA086846YF 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED>W/O POWER FOLD)
980301 -
TA*2**202747-TA416846YC 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE>W/O POWER FOLD)
- 960717
TA*2** -200169TA416846YE 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE>W/O POWER FOLD)
960717 - 971001
TA*2**200169-202201TA416846YF 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE>W/O POWER FOLD)
971001 - 980301
TA*2**202201-202747TA426846YC 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE>W/O POWER FOLD)
- 960717
TA*2** -200169TA426846YE 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE>W/O POWER FOLD)
960717 - 971001
TA*2**200169-202201TA426846YF 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-WHITE>W/O POWER FOLD)
971001 - 980301
TA*2**202201-202747TA436846YC 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED>W/O POWER FOLD)
- 960717
TA*2** -200169TA436846YE 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED>W/O POWER FOLD)
960717 - 971001
TA*2**200169-202201TA436846YF 1 (TDC TYPE-VINYL>W/COURTESY LAMP-RED>W/O POWER FOLD)
971001 - 980301
TA*2**202201-202747TA456846YC 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED>W/O POWER FOLD)
- 960717
TA*2** -200169TA456846YE 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED>W/O POWER FOLD)
960717 - 971001
TA*2**200169-202201TA456846YF 1 (TDB TYPE-CLOTH'A'>W/COURTESY LAMP-RED>W/O POWER FOLD)
971001 - 980301
TA*2**202201-202747TA616846YC 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE>W/POWER FOLD)
- 960717
TA*2** -200169TA616846YE 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE>W/POWER FOLD)
960717 - 971001
TA*2**200169-202201TA616846YF 1 (TDC TYPE-VINYL>W/COURTESY LAMP-WHITE>W/POWER FOLD)
971001 - 980301
TA*2**202201-202747TB846846YB 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-RED)
- 960717
TA*2** -200169TB846846YD 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-RED)
960717 - 971001
TA*2**200169-202201TB846846YE 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-RED)
971001 -
TA*2**202201-TB936846YC 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-WHITE)
- 960717
TA*2** -200169TB936846YE 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-WHITE)
960717 - 971001
TA*2**200169-202201TB936846YF 1 (TDA TYPE-CLOTH'C'>W/COURTESY LAMP-WHITE)
971001 -
TA*2**202201-» 68422A HANDLE(R),PULL Part Number Qty. Specifications Price T00268D60B 1 » 68427A BRACKET Part Number Qty. Specifications Price T00168427 3 € 2,10 » 68435 REST(R),ARM-FRT DOOR TRIM Part Number Qty. Specifications Price T002684MXA 1 » 68435Z REST(L),ARM-FRT DOOR TRIM Part Number Qty. Specifications Price T002684MYA 1 » 68437B LENS,COURTESY LAMP Part Number Qty. Specifications Price HG30684G1 2 W/COURTESY LAMP-WHITE € 16,27 » 684C3A CAP,POCKET-DOOR TRIM Part Number Qty. Specifications Price T001684C3A 4 € 2,16 » 684G0 LAMP,COURTESY Part Number Qty. Specifications Price T001684G0 2 W/COURTESY LAMP-WHITE
- 971001
TA*2** -202201T001684G0A 2 W/COURTESY LAMP-WHITE
971001 -
TA*2**202201-TA04684G0 2 W/COURTESY LAMP-RED
- 971001
TA*2** -202201TA04684G0A 2 W/COURTESY LAMP-RED
971001 -
TA*2**202201-» 684H1 GRILLE(R),SPEAKER Part Number Qty. Specifications Price TA02684H1 1 » 684LY PANEL(L),SWITCH Part Number Qty. Specifications Price TA01684L6A 1 - 960717
TA*2** -200169TA01684L6B 1 960717 -
TA*2**200169-» 684M0 LID(L),ARM REST-TRIM Part Number Qty. Specifications Price T00169391A 1 » 684M4 HINGE,ARMREST Part Number Qty. Specifications Price T002684M4A 2 € 32,71 » 684MZ LID(R),ARM REST-TRIM Part Number Qty. Specifications Price T00169371A 1 » 684T1 GRILLE(L),SPEAKER Part Number Qty. Specifications Price TA02684W1 1 » 68AB1 FASTENER Part Number Qty. Specifications Price G35068AB1 10 ILLUST. NO.2 € 0,70 GA2A68AB1A 4 ILLUST. NO.1 € 0,97 » 68AD2 CLIP Part Number Qty. Specifications Price T00168AD2A 4 € 2,16 » 68AD5 GROMMET,SCREW Part Number Qty. Specifications Price GA2K68AD5A 2 ILLUST. NO.1 € 2,18 T00168AD5B 2 ILLUST. NO.2 € 2,88 » 68D11 CAP,SCREW Part Number Qty. Specifications Price T00168D11B 2 » 68D15 KNOB Part Number Qty. Specifications Price T00268D15 2 » 68DA1 PANEL(R),SIDE-D TRIM Part Number Qty. Specifications Price T00168DA0B 1 € 10,15 » 68DB1 PANEL(L),SIDE-D TRIM Part Number Qty. Specifications Price T00168DB0B 1 € 9,95 » 68DD6 RECESS(L),DOOR TRIM Part Number Qty. Specifications Price TA0168DD6B 1 » 69361 GROMMET,SCREW Part Number Qty. Specifications Price B31669361 4 € 1,28 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350410 1 € 0,42 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350516 1 € 0,54 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350616 1 € 0,60 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350620 1 € 0,68 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998650425B 1 € 0,42 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998650430 1 € 0,68 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998670416B 1 € 0,52 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998680412 1 € 0,48 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998740308B 1 € 0,41 » 99577 NUT,SPEED Part Number Qty. Specifications Price 995783000 1 € 0,55
