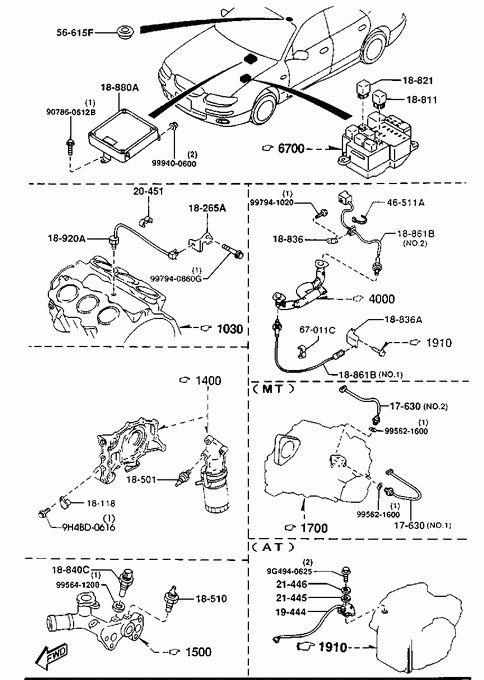

Engine Switches & Relay(2500cc)
-
» 17630 SWITCH Part Number Qty. Specifications Price H50817640 1 ILLUST. NO.1
MANUAL TRANSMISSION€ 31,21 H50917640 1 ILLUST. NO.2
MANUAL TRANSMISSION€ 31,83 » 18118 SPACER Part Number Qty. Specifications Price K81118118 1 » 18265A BRACKET,COUPLER-KNOCK SENSOR Part Number Qty. Specifications Price KL4718281 1 € 6,02 » 18501 SWITCH,OIL PRESSURE Part Number Qty. Specifications Price B36718501 1 960801 -
TA*2**200256-€ 17,73 FS111850X 1 A (B367-18-501)
- 960801
TA*2** -200256€ 16,86 » 18510 UNIT,HEAT GAUGE » 18811 RELAY,MAIN Part Number Qty. Specifications Price JE1618811 1 DENSO € 55,78 » 18821 RELAY,FUEL PUMP Part Number Qty. Specifications Price NF0218821A 1 € 73,13 » 18836 BRACKET,LEVEL BOX Part Number Qty. Specifications Price TA3518836 1 » 18836A BRACKET,OXYGON SENSOR Part Number Qty. Specifications Price KL4718836A 1 AUTOMATIC TRANSMISSION € 8,21 » 18840C SENSOR,TEMP.-ENG.COOLANT Part Number Qty. Specifications Price B59318840A 1 DENSO 2 TERMINALS CO € 44,89 » 18861B SENSOR,OXYGEN Part Number Qty. Specifications Price KF3618861 1 A (KF36-18-861A)
ILLUST. NO.1
MANUAL TRANSMISSION
- 970601
TA*2** -201663€ 149,36 KF3618861A 1 ILLUST. NO.1
MANUAL TRANSMISSION
970601 -
TA*2**201663-€ 152,04 KL6118861A 1 ILLUST. NO.1
AUTOMATIC TRANSMISSION€ 152,04 KL6218861A 1 ILLUST. NO.2 € 152,04 » 18880A MODULE,POWERTRAIN CONTROL Part Number Qty. Specifications Price KLL218881A 1 A (KLL2-18-881B)
AUTOMATIC TRANSMISSION
- 961101
TA*2** -200636€ 2108,42 KLL218881B 1 A (KLL2-18-881C)
AUTOMATIC TRANSMISSION
961101 - 970110
TA*2**200636-201007KLL218881C 1 AN (KLL2-18-881D)
AUTOMATIC TRANSMISSION
970110 - 980803
TA*2**201007-€ 2108,42 KLL218881D 1 AUTOMATIC TRANSMISSION
980803 -KLL318881A 1 AN (KLL3-18-881B)
MANUAL TRANSMISSION
- 961101
TA*2** -200636€ 2108,42 KLL318881B 1 AN (KLL3-18-881C)
MANUAL TRANSMISSION
961101 - 980803
TA*2**200636-KLL318881C 1 MANUAL TRANSMISSION
980803 -» 18920A SENSOR,KNOCK Part Number Qty. Specifications Price KLK118921 1 A (KLK1-18-921A) € 104,97 » 19444 SWITCH,INHIBITOR Part Number Qty. Specifications Price FU0A21444E 1 AUTOMATIC TRANSMISSION € 44,24 » 20451 CLIP Part Number Qty. Specifications Price B61220468 1 € 1,14 » 21445 WASHER,PLAIN-INHIBITOR SW Part Number Qty. Specifications Price FU0121445A 2 AUTOMATIC TRANSMISSION € 1,12 » 21446 WASHER,DISHED Part Number Qty. Specifications Price FU0121446A 2 AUTOMATIC TRANSMISSION € 0,55 » 46511A CLIP,CONTROL CABLE-C. Part Number Qty. Specifications Price GA5T46511 1 € 1,06 » 56615F PLUG,DRAIN Part Number Qty. Specifications Price 020856615 1 € 2,23 » 67011C CLIP Part Number Qty. Specifications Price E35618141 1 MANUAL TRANSMISSION € 1,80 » 90786 SCREW & WASHER,TAPPING Part Number Qty. Specifications Price 907860612B 1 € 2,56 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400600 1 € 1,24 » 99560 GASKET Part Number Qty. Specifications Price 995621600 1 € 1,65 » 99560 GASKET Part Number Qty. Specifications Price 995641200 1 € 0,73 » 99601 BOLT Part Number Qty. Specifications Price 9G4940625 1 € 0,68 » 99601 BOLT Part Number Qty. Specifications Price 9H4BD0616 1 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940860G 1 € 2,74 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997941020 1 € 2,06
