- Parts > Mazda XEDOS-9 > 1996-06 > Gasoline-engine V6-cylinder Supplement > Cooling System(2300cc)
- Search by part number:
-

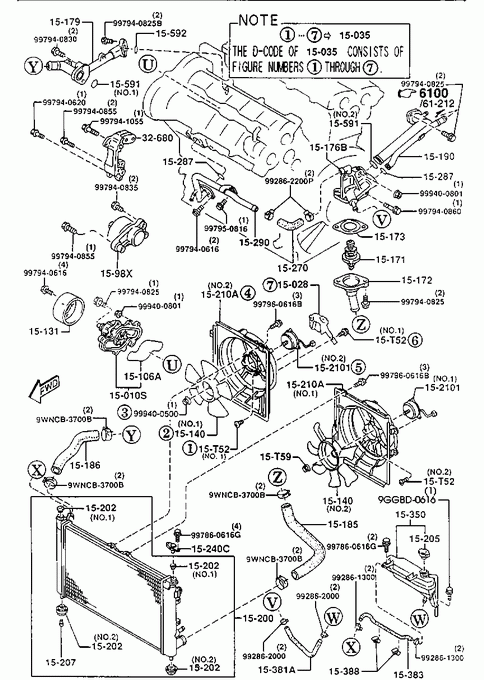

Cooling System(2300cc)
-
» 15010S PUMP SET,WATER Part Number Qty. Specifications Price 8AK315010 1 A (8AK3-15-010B)
- 970519
TA*2** -201611€ 110,94 8AK315010B 1 970519 -
TA*2**201611-€ 110,94 » 15028 COVER,FAN Part Number Qty. Specifications Price KL7015028 1 A (KL70-15-028A)
W/AIR CON.
- 980615
TA*2** -202944€ 39,03 KL7015028A 1 W/AIR CON.
980615 -
TA*2**202944-€ 40,61 » 15035 FAN,ADDITIONAL Part Number Qty. Specifications Price KL6815035 1 W/AIR CON. » 15106A RING,'O'-WATER PUMP Part Number Qty. Specifications Price KJ0115106A 1 € 18,65 » 15131 PULLEY,WATER PUMP Part Number Qty. Specifications Price KJ0115131 1 € 19,51 » 15140 FAN,COOLING Part Number Qty. Specifications Price BP2915140 1 DENSO
ILLUST. NO.1€ 102,83 E35815140 1 ILLUST. NO.2
W/AIR CON.€ 41,32 » 15171 THERMOSTAT Part Number Qty. Specifications Price KL0115171 1 AN (KL01-15-171A) € 20,96 » 15172 COVER,THERMOSTAT Part Number Qty. Specifications Price KJ0115172 1 AN (KJ01-15-172A) € 20,49 » 15173 GASKET,THERMOSTAT COVER Part Number Qty. Specifications Price JE9615173A 1 € 5,00 » 15176B CASE,THERMOSTAT Part Number Qty. Specifications Price KJ0115170 1 € 94,98 » 15179 OUTLET,WATER PUMP Part Number Qty. Specifications Price KJ0115179C 1 AN (KJ01-15-179F)
- 970519
TA*2** -201611KJ0115179F 1 970519 -
TA*2**201611-» 15185 HOSE,WATER Part Number Qty. Specifications Price KJ0115185 1 € 33,49 » 15186 HOSE,WATER Part Number Qty. Specifications Price KJ0115186 1 € 23,08 » 15190 PIPE,WATER Part Number Qty. Specifications Price KJ0115190 1 A (KJ01-15-190A) € 57,15 » 15200 RADIATOR Part Number Qty. Specifications Price KL4715200A 1 € 379,94 » 15202 RUBBER,MOUNT Part Number Qty. Specifications Price K80215202 2 ILLUST. NO.2 € 13,09 KL4715202 2 ILLUST. NO.1 € 12,09 » 15205 CAP,RADIATOR Part Number Qty. Specifications Price KL0115205 1 € 14,23 » 15207 COCK,DRAIN Part Number Qty. Specifications Price KL4715203 1 € 7,68 » 152101 FAN DRIVE Part Number Qty. Specifications Price KL4715150 1 ILLUST. NO.1 € 326,16 KL6815150 1 ILLUST. NO.2
W/AIR CON.€ 281,07 » 15210A COWLING,RADIATOR Part Number Qty. Specifications Price KL4715210 1 A (KL47-15-210A)
ILLUST. NO.1
- 980601
TA*2** -202926€ 70,19 KL4715210A 1 ILLUST. NO.1
980601 -
TA*2**202926-€ 73,02 KL6815210 1 G (KL68-15-210A)
ILLUST. NO.2
W/AIR CON.
- 980615
TA*2** -202944€ 70,19 KL6815210A 1 ILLUST. NO.2
W/AIR CON.
980615 -
TA*2**202944-€ 73,02 » 15240C BRACKET(R),RADIATOR Part Number Qty. Specifications Price KL4715240 2 € 5,32 » 15270 PIPE,WATER BY PASS Part Number Qty. Specifications Price KJ0115261 1 € 6,89 » 15287 RING,'O'-WATER BYPASS Part Number Qty. Specifications Price E30115287 2 € 1,97 » 15290 PIPE,BYPASS Part Number Qty. Specifications Price KJ0115290A 1 € 50,08 » 15350 TANK,SUB-RADIATOR Part Number Qty. Specifications Price KJ0115350B 1 € 98,27 » 15381A HOSE,SUB TANK Part Number Qty. Specifications Price KJ0215381 1 AN (KJ02-15-381A)
- 980520€ 10,75 KJ0215381A 1 980520 - € 11,19 » 15383 HOSE,SUB TANK Part Number Qty. Specifications Price KL4715383A 1 € 10,81 » 15388 CLIP,HOSE Part Number Qty. Specifications Price KL6815388A 2 € 2,77 » 15591 RING,'O'-WATER PIPE Part Number Qty. Specifications Price KJ0115591 1 ILLUST. NO.1 € 4,63 KL0115591 1 ILLUST. NO.2 € 4,63 » 15592 RING,'O'-WATER OUTLET Part Number Qty. Specifications Price KJ0115592A 1 € 5,69 » 1598X TENSIONER,BELT'V' Part Number Qty. Specifications Price KJ0115980C 1 € 302,11 » 15T52 SCREW Part Number Qty. Specifications Price FE6815T52 6 ILLUST. NO.1
W/AIR CON.€ 0,66 PN1515T52 3 ILLUST. NO.2 € 1,35 » 15T59 NUT,COOLING FAN Part Number Qty. Specifications Price KL2015T59 1 € 2,08 » 32680 BRACKET,VANE PUMP Part Number Qty. Specifications Price KJ0132603A 1 € 65,78 » 90720 SCREW Part Number Qty. Specifications Price 9GGBD0616 1 » 90780 BOLT Part Number Qty. Specifications Price 997940825B 1 € 1,41 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400500 1 € 0,73 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400801 1 € 1,64 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860616G 1 € 2,09 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992861300 1 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992862000 1 € 2,47 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992862200P 1 € 2,73 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 9WNCB3700B 1 € 3,12 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616 1 € 1,28 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940620 1 € 3,14 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940825 1 € 1,57 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940830 1 € 2,31 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940835 1 € 2,12 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940855 1 € 3,23 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940860 1 € 2,39 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997941055 1 € 2,76 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960616B 1 € 0,48 » 9S96A BOLT Part Number Qty. Specifications Price 997950816 1
