- Parts > Mazda XEDOS-9 > 1996-06 > Gasoline-engine V6-cylinder Supplement > Air Cleaner(2500cc)
- Search by part number:
-

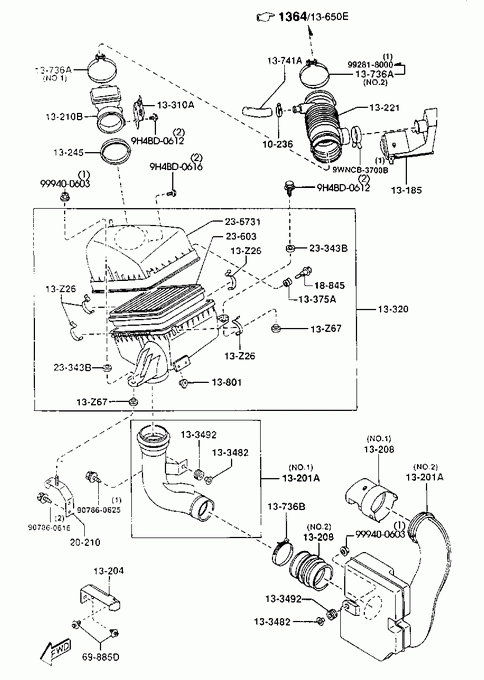

Air Cleaner(2500cc)
-
» 10236 CLIP Part Number Qty. Specifications Price KF0110236A 1 € 2,88 » 13185 DUCT,RESONANCE Part Number Qty. Specifications Price KL4713185 1 € 40,36 » 13201A DUCT,FRESH AIR Part Number Qty. Specifications Price KL4713200 1 ILLUST. NO.1 € 50,90 KL4713201B 1 ILLUST. NO.2 € 50,90 » 13204 BAFFLE,AIR INTAKE Part Number Qty. Specifications Price KL4713204 1 € 6,61 » 13208 DUCT,FRESH AIR Part Number Qty. Specifications Price KL6113208B 1 ILLUST. NO.1 € 10,89 KL6813208 1 ILLUST. NO.2 € 15,28 » 13210B SENSOR,AIR FLOW Part Number Qty. Specifications Price KL4713215 1 € 750,17 » 13221 HOSE,AIR Part Number Qty. Specifications Price KL4713221 1 € 46,51 » 13245 JOINT,RUBBER Part Number Qty. Specifications Price KL4713245 1 € 7,85 » 13310A BRKT,AIR FLOW METER Part Number Qty. Specifications Price KL4713310A 1 » 13320 CLEANER,AIR Part Number Qty. Specifications Price KL4713320C 1 AN (KL47-13-320D)
- 971201
TA*2** -202344€ 170,50 KL4713320D 1 971201 -
TA*2**202344-€ 177,39 » 133482 SPACER,AIR INT.PIPE Part Number Qty. Specifications Price SLA113321 2 € 2,97 » 133492 INSULATOR Part Number Qty. Specifications Price S50113349 2 € 2,92 » 13375A GROMMET,EX.INSULATOR-LOW Part Number Qty. Specifications Price KL4713375 1 € 3,43 » 13736A CLAMP,HOSE-A.I.P./A. CLNR Part Number Qty. Specifications Price BP0113736 1 ILLUST. NO.1 € 11,58 FEH613736 1 ILLUST. NO.2
- 960901
TA*2** -200390€ 10,42 » 13736B CLAMP,HOSE Part Number Qty. Specifications Price KL0113736B 1 € 8,30 » 13741A HOSE,VENTILATION Part Number Qty. Specifications Price KLK113741A 1 A (KLK1-13-741B) € 8,85 » 13801 NUT Part Number Qty. Specifications Price JE4813Z71 2 € 10,19 » 13Z26 HOOK,AIR CLEANER COVER Part Number Qty. Specifications Price JE4813Z26 4 € 5,97 » 13Z67 SPACER,MOUNTING-A/CLEANER Part Number Qty. Specifications Price JE4813Z67 3 € 4,83 » 18845 SENSOR,IN.AIR TEMP Part Number Qty. Specifications Price BP4W18845 1 971201 -
TA*2**202344-€ 57,93 KL4718845 1 A (BP4W-18-845)
- 971201
TA*2** -202344€ 55,68 » 20210 BRACKET,AIR CLEANER Part Number Qty. Specifications Price KL4720210 1 € 11,50 » 23343B RUBBER,MOUNTING Part Number Qty. Specifications Price JE4813Z66 3 € 3,66 » 23603 ELEMENT,AIR CLEANER Part Number Qty. Specifications Price KL4713Z40 1 € 21,36 » 236731 COVER,AIR CLEANER Part Number Qty. Specifications Price KL4713Z01 1 A (KL47-13-Z01A) € 67,72 » 69885D FASTENER Part Number Qty. Specifications Price NA0156145 2 € 1,90 » 90786 SCREW & WASHER,TAPPING Part Number Qty. Specifications Price 907860616 1 € 2,41 » 90786 SCREW & WASHER,TAPPING Part Number Qty. Specifications Price 907860625 1 € 1,86 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400603 1 € 2,05 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992818000 1 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 9WNCB3700B 1 € 3,12 » 99601 BOLT Part Number Qty. Specifications Price 9H4BD0612 1 » 99601 BOLT Part Number Qty. Specifications Price 9H4BD0616 1
