Inlet Manifold 01/02 02/02

Inlet Manifold |

Mazda parts catalog

Parts > Mazda XEDOS-9 > 1996-06 > Gasoline-engine V6-cylinder Supplement > Inlet Manifold

Search by part number:

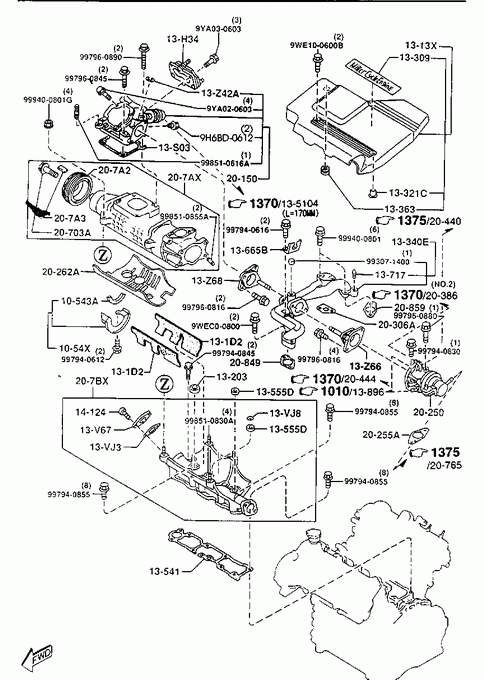

Inlet Manifold(2300cc)
01/02
02/02

» 10543A SEAL(UP),RUBBER-WAT.PUMP

Part Number Qty. Specifications Price
KJ0110543 1

» 1054X RUBBER,MOUNTING

Part Number Qty. Specifications Price
KJ011054X 1

» 1313X COVER,SURGE TANK

Part Number Qty. Specifications Price
KJ011313XD 1
€ 116,42

» 131D2 INSULATOR,L/C

Part Number Qty. Specifications Price
KJ01131D2 2
€ 8,12

» 13203 SEAL,RUBBER

Part Number Qty. Specifications Price
KJ0113203 1
€ 9,29

» 13309 LABEL,TURBO-AIR INT. PIPE

Part Number Qty. Specifications Price
KJ0113309A 1
€ 11,17

» 13321C SPACER

Part Number Qty. Specifications Price
KJ0113321 2
€ 3,19

» 13340E PIPE,AIR

Part Number Qty. Specifications Price
KJ1413360 1

» 13363 RUBBER,INSULATION

Part Number Qty. Specifications Price
KJ0113363 5 AN (KJ01-13-363A)
€ 5,23

» 13541 GASKET

Part Number Qty. Specifications Price
KJ0113A66 1
€ 20,20

» 13555D RUBBER,SEAL-COMPRESSOR

Part Number Qty. Specifications Price
KJ0113555 2
€ 7,95

» 13665B BRACKET,ACCEL WIRE

Part Number Qty. Specifications Price
KJ0113665 1
€ 8,44

» 13717 PIN,COTTER

Part Number Qty. Specifications Price
KJ0113718 1
€ 4,87

» 13H34 RUBBER,MOUNTING

Part Number Qty. Specifications Price
KJ0113H34 1
€ 115,42

» 13S03 GASKET,AIR INTAKE

Part Number Qty. Specifications Price
KJ0113S03 1
€ 9,75

» 13V67 PLATE,COMPRESSOR BRACKET

Part Number Qty. Specifications Price
KJ0113V67 1
€ 6,90

» 13VJ3 GASKET,COMPRESSOR BRACKET

Part Number Qty. Specifications Price
KJ0113VJ3 1
€ 5,64

» 13VJ8 RING'O',COMP. BRACKET

Part Number Qty. Specifications Price
KJ0113VJ8 1
€ 4,10

» 13Z42A RING,'E'

Part Number Qty. Specifications Price
F8B313Z42 1
€ 1,17

» 13Z66 RUBBER,MOUNTING

Part Number Qty. Specifications Price
KJ0113Z66 1
€ 69,58

» 13Z68 PLATE,SEAL

Part Number Qty. Specifications Price
KJ0113Z68 1
€ 71,69

» 14124 SCREW,OIL PUMP COVER

Part Number Qty. Specifications Price
FE1H14124 2
€ 1,95

» 20150 BODY,SHUTTER VALVE

Part Number Qty. Specifications Price
KJ012010XE 1

» 20250 VALVE,AIR BYPASS

Part Number Qty. Specifications Price
KJ0120250C 1
€ 448,27

» 20255A GASKET,AIR BYPASS VALVE

Part Number Qty. Specifications Price
KJ0120255 1
€ 3,91

» 20262A RUBBER,LYSHOLM COMP.

Part Number Qty. Specifications Price
KJ0120262 1
€ 71,13

» 20306A GASKET,E.G.R. VALVE

Part Number Qty. Specifications Price
KJ0120306A 1
€ 4,34

» 20703A BOLT,LOCK-PULLEY

Part Number Qty. Specifications Price
KJ0120703 1

» 207A2 PULLEY,LYS.COMPRESSOR

Part Number Qty. Specifications Price
KJ01207A2B 1
€ 329,42

» 207A3 KEY

Part Number Qty. Specifications Price
KJ01207A3 1

» 207AX COMPRESSOR,LYSHOLM

Part Number Qty. Specifications Price
KJ05207AXC 1
€ 3276,62

» 207BX BRACKET,LYSHOLM COMP.

Part Number Qty. Specifications Price
KJ01207BXA 1
€ 310,64

» 20849 GASKET,AIR INTAKE PIPE

Part Number Qty. Specifications Price
KJ0120849 1
€ 4,75

» 20859 GASKET,AIR INTAKE PIPE

Part Number Qty. Specifications Price
KJ0120859 1
€ 4,75

» 90780 BOLT

Part Number Qty. Specifications Price
9YA020603 1
€ 2,02

» 90780 BOLT

Part Number Qty. Specifications Price
9YA030603 1
€ 5,95

» 90857 STUD

Part Number Qty. Specifications Price
998510616A 1
€ 0,93

» 90857 STUD

Part Number Qty. Specifications Price
998510830A 1
€ 0,82

» 90857 STUD

Part Number Qty. Specifications Price
998510855A 1
€ 1,67

» 90901 NUT

Part Number Qty. Specifications Price
9WEC00800 1

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400801 1
€ 1,64

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400801G 1
€ 1,57

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
9WE100600B 1
€ 2,56

» 99307 PLUG,BLIND

Part Number Qty. Specifications Price
993071400 1
€ 1,30

» 99601 BOLT

Part Number Qty. Specifications Price
9H6BD0612 1

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940612 1
€ 0,87

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940616 1
€ 1,28

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940830 1
€ 2,31

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940845 1
€ 2,42

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940855 1
€ 3,23

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960816 1
€ 1,92

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960845 1
€ 1,53

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960880 1
€ 1,95

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960890 1
€ 2,74

Part Number	Qty.	Specifications	Price
KJ0113363	5	AN (KJ01-13-363A)	€ 5,23

Inlet Manifold(2300cc)
