- Parts > Mazda XEDOS-9 > 1993-09 > Chassis Axle Suspension,brake & Steering > Rear Suspension Mechanisms(4ws)
- Search by part number:
-

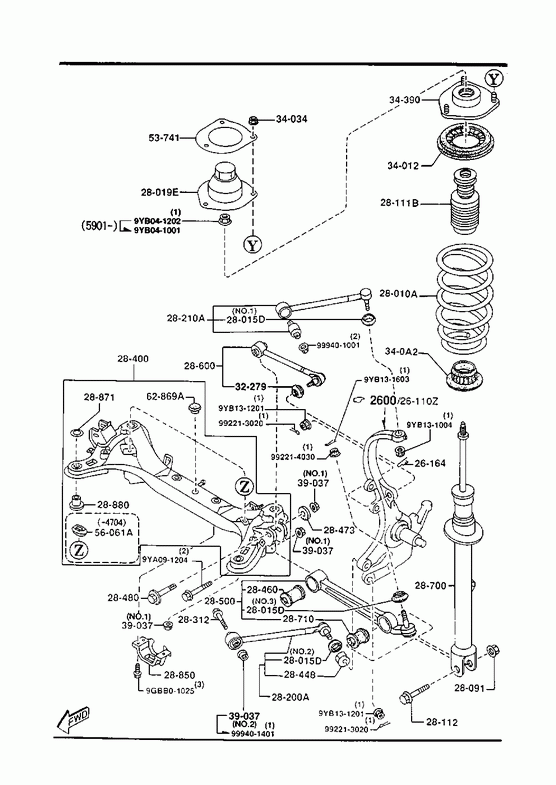

Rear Suspension Mechanisms(4ws)
-
» 26164 PIN,SNAP-R.SUSP. Part Number Qty. Specifications Price T00126164 2 € 2,95 » 28010A SPRING,COIL-REAR Part Number Qty. Specifications Price TA0528011 1 FOR LEFT SIDE
- 950601
TA*2** -106229€ 111,69 TA0528011C 1 AN (TA05-28-011D)
FOR LEFT SIDE
950601 - 951101
TA*2**106229-106721TA0528011D 1 FOR LEFT SIDE
951101 -
TA*2**106721-TA0728011 1 AN (TA07-28-011A)
FOR RIGHT SIDE
- 950601
TA*2** -106229€ 108,41 TA0728011A 1 AN (TA07-28-011B)
FOR RIGHT SIDE
950601 - 951101
TA*2**106229-106721TA0728011B 1 FOR RIGHT SIDE
951101 -
TA*2**106721-€ 112,79 » 28015D BOOT,DUST Part Number Qty. Specifications Price T001284A3 2 ILLUST. NO.1 € 8,97 T001284B3 2 ILLUST. NO.2 € 8,97 T00128503 2 ILLUST. NO.3 € 10,63 » 28019E CAP,REAR DAMPER Part Number Qty. Specifications Price T00128019 2 € 15,17 » 28091 NUT Part Number Qty. Specifications Price FB0128091A 2 - 950901
TA*2** -106545€ 4,48 H26628091 2 950901 -
TA*2**106545-€ 4,09 » 28111B STOPPER,BUMP Part Number Qty. Specifications Price T00128111 2 € 11,56 » 28112 BOLT Part Number Qty. Specifications Price H26028112 2 € 6,34 » 28200A LINK,TRAILING Part Number Qty. Specifications Price TA0128200 2 A (TA01-28-200A)
- 930826
TA*2** -100208€ 149,69 TA0128200A 2 930826 -
TA*2**100208-€ 155,73 » 28210A LINK,UPPER Part Number Qty. Specifications Price T00128D00 2 AN (T001-28-D00A)
- 960210
TA*2** -107168€ 70,25 T00128D00A 2 A (T001-28-D00B)
960210 -
TA*2**107168-€ 70,25 » 28312 BOLT'A',LINK Part Number Qty. Specifications Price H26628312 2 € 4,62 » 28400 MEMBER,CROSS Part Number Qty. Specifications Price T00128400 1 AN (T001-28-400A)
- 940720
TA*2** -105061€ 746,22 T00128400A 1 AN (T001-28-400B)
940720 - 960501
TA*2**105061-107577€ 746,22 T00128400B 1 A (T001-28-400C)
960501 -
TA*2**107577-€ 746,22 » 28448 SEAL,DUST-BALL JOINT Part Number Qty. Specifications Price T00128469 2 - 950414
TA*2** -106084€ 8,11 » 28460 BUSHING,LOWER ARM Part Number Qty. Specifications Price T00128460 2 € 38,98 » 28473 PLATE,CAM-SUB FRAME Part Number Qty. Specifications Price CA3528473 2 960401 -
TA*2**107436-€ 3,73 H26628473 2 - 960401
TA*2** -107436€ 3,08 » 28480 BOLT,ADJUST-SUB FRAME Part Number Qty. Specifications Price CA352866ZA 2 960401 -
TA*2**107436-€ 12,73 H26628480A 2 - 960401
TA*2** -107436€ 6,05 » 28500 LINK,LATERAL Part Number Qty. Specifications Price T00128500 2 € 202,52 » 28600 LINK,LATERAL Part Number Qty. Specifications Price T00128600 2 A (T001-28-600A)
- 930826
TA*2** -100208€ 185,37 T00128600A 2 930826 -
TA*2**100208-€ 192,86 » 28700 DAMPER,REAR Part Number Qty. Specifications Price T00128700B 2 A (T001-28-700C)
W/O HEIGHT CONTROL
- 930901
TA*2** -100446€ 127,04 T00128700C 2 A (T001-28-700D)
W/O HEIGHT CONTROL
930901 - 931202
TA*2**100446-101894€ 127,04 T00128700D 2 A (T001-28-700E)
W/O HEIGHT CONTROL
931202 - 940215
TA*2**101894-103365T00128700E 2 W/O HEIGHT CONTROL
940215 - 950601
TA*2**103365-106229€ 130,88 T00128700F 2 950601 - 950901
TA*2**106229-106545€ 130,88 T00128700H 2 A (T001-28-700J)
950901 -
TA*2**106545-€ 114,24 TA0428700A 2 A (TA04-28-700B)
W/HEIGHT CONTROL
- 930826
TA*2** -100208TA0428700B 2 A (TA04-28-700C)
W/HEIGHT CONTROL
930826 - 930901
TA*2**100208-100446TA0428700C 2 A (TA04-28-700D)
W/HEIGHT CONTROL
930901 - 931202
TA*2**100446-101894TA0428700D 2 A (TA04-28-700E)
W/HEIGHT CONTROL
931202 - 940215
TA*2**101894-103365TA0428700E 2 W/HEIGHT CONTROL
940215 - 950601
TA*2**103365-106229€ 160,94 » 28710 BUSH,DAMPER Part Number Qty. Specifications Price T00128710 2 € 10,89 » 28850 BRACKET,PROTECTOR Part Number Qty. Specifications Price T00128850 1 € 30,25 » 28871 RUBBER,STOP Part Number Qty. Specifications Price T00128871 4 A (T001-28-871A) € 2,29 » 28880 RUBBER,MEMBER MTG. Part Number Qty. Specifications Price T00128860 4 € 25,48 » 32279 SEAL,DUST-BALL JOINT Part Number Qty. Specifications Price B45532279 2 € 5,92 » 34012 SHEET,RUBBER Part Number Qty. Specifications Price T00134012A 2 € 13,36 » 34034 NUT,FLANGE Part Number Qty. Specifications Price H38034034 6 AN (H380-34-034A)
- 940501
TA*2** -104480€ 2,68 H38034034A 6 940501 - 941101
TA*2**104480-105405€ 2,82 J00134034A 6 941101 -
TA*2**105405-€ 2,85 » 340A2 SHEET,SPRING Part Number Qty. Specifications Price T001340A2A 2 € 7,70 » 34390 RUBBER,MOUNTING Part Number Qty. Specifications Price T00134380 2 - 950901
TA*2** -106545€ 47,86 T00134380B 2 950901 -
TA*2**106545-€ 47,86 » 39037 NUT Part Number Qty. Specifications Price B00139037B 8 ILLUST. NO.1 € 4,09 H3802866YB 2 ILLUST. NO.2
- 950601
TA*2** -106229€ 56,32 » 53741 REINFORCEMENT Part Number Qty. Specifications Price T00156536 2 931203 -
TA*2**101936-€ 8,78 » 56061A COVER,HOLE Part Number Qty. Specifications Price T00156054 1 - 940704
TA*2** -104944€ 2,94 » 62869A PLUG,DRAIN-LIFT GATE UP. Part Number Qty. Specifications Price B21662869 3 940704 -
TA*2**104944-€ 1,89 » 90780 BOLT Part Number Qty. Specifications Price 9GBB01025 1 € 0,74 » 90780 BOLT Part Number Qty. Specifications Price 9YA091204 1 € 2,96 » 90901 NUT Part Number Qty. Specifications Price 9YB041001 1 € 3,35 » 90901 NUT Part Number Qty. Specifications Price 9YB041202 1 € 3,06 » 90901 NUT Part Number Qty. Specifications Price 9YB131004 1 € 3,05 » 90901 NUT Part Number Qty. Specifications Price 9YB131201 1 € 3,34 » 90901 NUT Part Number Qty. Specifications Price 9YB131603 1 € 4,54 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999401001 1 € 2,07 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999401401 1 € 2,45 » 99221 PIN,SPLIT Part Number Qty. Specifications Price 992213020 1 € 0,34 » 99221 PIN,SPLIT Part Number Qty. Specifications Price 992214030 1 € 0,41
