- Parts > Mazda XEDOS-9 > 1993-09 > Gasoline-engine V6-cylinder Supplement > Cooling System(2000cc & 2500cc)
- Search by part number:
-

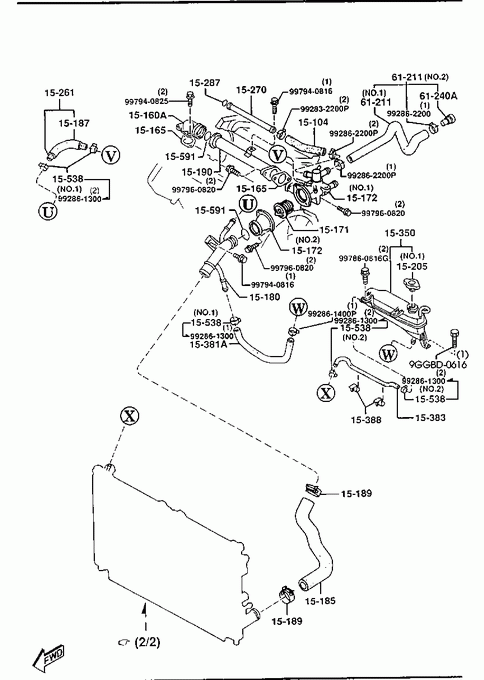

Cooling System(2000cc & 2500cc)
-
» 15104 HOSE,WATER BY-PASS Part Number Qty. Specifications Price KL0115261 1 € 7,17 » 15160A INLET,WATER PUMP Part Number Qty. Specifications Price KL0115161 1 AN (KL01-15-161A)
- 960501
TA*2** -107577€ 28,26 KL0115161A 1 960501 -
TA*2**107577-€ 29,41 » 15165 GASKET,W.PUMP INLET Part Number Qty. Specifications Price KL0115165A 2 € 3,43 » 15171 THERMOSTAT Part Number Qty. Specifications Price KL0115171 1 AN (KL01-15-171A) € 20,96 » 15172 COVER,THERMOSTAT Part Number Qty. Specifications Price KL0115172 1 ILLUST. NO.2 € 18,03 KL4715170 1 AN (KL47-15-170A)
ILLUST. NO.1
- 940201
TA*2** -103039€ 95,94 KL4715170B 1 AN (KL47-15-170C)
ILLUST. NO.1
940201 -
TA*2**103039-€ 95,94 » 15180 PIPE,WATER Part Number Qty. Specifications Price KL4715180 1 AN (KL47-15-180A)
- 950201
TA*2** -105844€ 37,01 KL4715180A 1 A (KL47-15-180B)
950201 -
TA*2**105844-€ 37,01 » 15185 HOSE,WATER Part Number Qty. Specifications Price KL4715185 1 € 33,49 » 15187 PROTECTOR,WATER HOSE Part Number Qty. Specifications Price KL4715187 1 € 3,32 » 15189 CLAMP,HOSE Part Number Qty. Specifications Price AS0115182 3 - 940201
TA*2** -103039€ 2,97 » 15190 PIPE,WATER Part Number Qty. Specifications Price KL0115190A 1 A (KL01-15-190B) € 31,99 » 15205 CAP,RADIATOR Part Number Qty. Specifications Price KL0115205 1 ILLUST. NO.1 € 14,23 KL6115205 1 ILLUST. NO.2 € 14,23 » 15261 HOSE,BYPASS Part Number Qty. Specifications Price KL4715260 1 € 10,59 » 15270 PIPE,WATER BY PASS Part Number Qty. Specifications Price KL0115270 1 € 17,84 » 15287 RING,'O'-WATER BYPASS Part Number Qty. Specifications Price E30115287 1 € 1,97 » 15350 TANK,SUB-RADIATOR Part Number Qty. Specifications Price KL4715350B 1 € 98,27 » 15381A HOSE,SUB TANK Part Number Qty. Specifications Price KL4715381A 1 € 8,82 » 15383 HOSE,SUB TANK Part Number Qty. Specifications Price KL4715383A 1 € 10,81 » 15388 CLIP,HOSE Part Number Qty. Specifications Price KL6815388A 2 € 2,77 » 15538 CLAMP,HOSE Part Number Qty. Specifications Price JF0215538 3 ILLUST. NO.1
- 941001
TA*2** -105320€ 2,51 KL4715538 2 A (99286-1300)
ILLUST. NO.2
- 941001
TA*2** -105320€ 2,68 » 15591 RING,'O'-WATER PIPE Part Number Qty. Specifications Price KL0115591 2 € 4,63 » 61211 HOSE NO.1,WATER Part Number Qty. Specifications Price TA0161211A 1 ILLUST. NO.1 € 37,75 TA016124XA 1 ILLUST. NO.2 € 49,18 » 61240A CONNECTOR,WATER HOSE Part Number Qty. Specifications Price TA0161240 1 € 9,67 » 90720 SCREW Part Number Qty. Specifications Price 9GGBD0616 1 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860616G 1 € 2,09 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992832200P 1 € 2,32 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992861300 1 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992861400P 1 € 2,44 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992862200 1 € 2,32 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992862200P 1 € 2,73 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940816 1 € 0,79 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940825 1 € 1,57 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960820 1 € 1,22
