Inlet Manifold 01/02 02/02

Inlet Manifold |

Mazda parts catalog

Parts > Mazda XEDOS-9 > 1993-09 > Gasoline-engine V6-cylinder Supplement > Inlet Manifold

Search by part number:

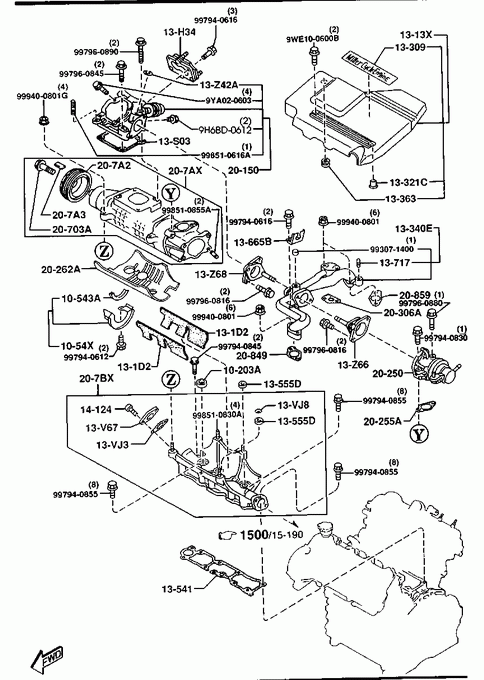

Inlet Manifold(2300cc)

01/02
02/02

PIN,DOWEL

Part Number	Qty.	Specifications	Price
KJ0113203	1		€ 9,29

» 10543A

SEAL(UP),RUBBER-WAT.PUMP

Part Number	Qty.	Specifications	Price
KJ0110543	1

» 1054X

RUBBER,MOUNTING

Part Number	Qty.	Specifications	Price
KJ011054X	1

» 1313X

COVER,SURGE TANK

Part Number	Qty.	Specifications	Price
KJ011313XC	1	A (KJ01-13-13XD) - 960327 *TA2 -107419	€ 111,90
KJ011313XD	1	960327 - *TA2107419-	€ 116,42

» 131D2

INSULATOR,L/C

Part Number	Qty.	Specifications	Price
KJ01131D2	2		€ 8,12

» 13309

LABEL,TURBO-AIR INT. PIPE

Part Number	Qty.	Specifications	Price
KJ0113309A	1		€ 11,17

» 13321C

SPACER

Part Number	Qty.	Specifications	Price
KJ0113321	2		€ 3,19

» 13340E

PIPE,AIR

Part Number	Qty.	Specifications	Price
KJ0113360C	1		€ 259,21

» 13363

RUBBER,INSULATION

Part Number	Qty.	Specifications	Price
KJ0113363	5	AN (KJ01-13-363A)	€ 5,23

» 13541

GASKET

Part Number	Qty.	Specifications	Price
KJ0113A66	1		€ 20,20

» 13555D

RUBBER,SEAL-COMPRESSOR

Part Number	Qty.	Specifications	Price
KJ0113555	2		€ 7,95

» 13665B

BRACKET,ACCEL WIRE

Part Number	Qty.	Specifications	Price
KJ0113665	1		€ 8,44

» 13717

PIN,COTTER

Part Number	Qty.	Specifications	Price
KJ0113718	1		€ 4,87

» 13H34

RUBBER,MOUNTING

Part Number	Qty.	Specifications	Price
KJ0113H34	1		€ 115,42

» 13S03

GASKET,AIR INTAKE

Part Number	Qty.	Specifications	Price
KJ0113S03	1		€ 9,75

» 13V67

PLATE,COMPRESSOR BRACKET

Part Number	Qty.	Specifications	Price
KJ0113V67	1		€ 6,90

» 13VJ3

GASKET,COMPRESSOR BRACKET

Part Number	Qty.	Specifications	Price
KJ0113VJ3	1		€ 5,64

» 13VJ8

RING'O',COMP. BRACKET

Part Number	Qty.	Specifications	Price
KJ0113VJ8	1		€ 4,10

» 13Z42A

RING,'E'

Part Number	Qty.	Specifications	Price
F8B313Z42	1		€ 1,17

» 13Z66

RUBBER,MOUNTING

Part Number	Qty.	Specifications	Price
KJ0113Z66	1		€ 69,58

» 13Z68

PLATE,SEAL

Part Number	Qty.	Specifications	Price
KJ0113Z68	1		€ 71,69

» 14124

SCREW,OIL PUMP COVER

Part Number	Qty.	Specifications	Price
FE1H14124	2		€ 1,95

» 20150

BODY,SHUTTER VALVE

Part Number	Qty.	Specifications	Price
KJ012010XD	1	A (KJ01-20-10XE) - 950901 *TA2 -106545	€ 440,10
KJ012010XE	1	950901 - *TA2106545-

» 20250

VALVE,AIR BYPASS

Part Number	Qty.	Specifications	Price
KJ0120250C	1		€ 448,27

» 20255A

GASKET,AIR BYPASS VALVE

Part Number	Qty.	Specifications	Price
KJ0120255	1		€ 3,91

» 20262A

RUBBER,LYSHOLM COMP.

Part Number	Qty.	Specifications	Price
KJ0120262	1		€ 71,13

» 20306A

GASKET,E.G.R. VALVE

Part Number	Qty.	Specifications	Price
KJ0120306A	1		€ 4,34

» 20703A

BOLT,LOCK-PULLEY

Part Number	Qty.	Specifications	Price
KJ0120703	1

» 207A2

PULLEY,LYS.COMPRESSOR

Part Number	Qty.	Specifications	Price
KJ01207A2A	1	AN (KJ01-20-7A2B) - 960423 *TA2 -107577	€ 316,63
KJ01207A2B	1	960423 - *TA2107577-	€ 329,42

» 207A3

KEY

Part Number	Qty.	Specifications	Price
KJ01207A3	1

» 207AX

COMPRESSOR,LYSHOLM

Part Number	Qty.	Specifications	Price
KJ01207AXC	1	AN (KJ01-20-7AXD) 960110 - 960423 *TA2107014-107577
KJ01207AXD	1	960423 - *TA2107577-	€ 3171,46
KJ05207AX	1	- 960110 *TA2 -107014	€ 4548,38

» 207BX

BRACKET,LYSHOLM COMP.

Part Number	Qty.	Specifications	Price
KJ01207BXA	1		€ 310,64

» 20849

GASKET,AIR INTAKE PIPE

Part Number	Qty.	Specifications	Price
KJ0120849	1		€ 4,75

» 20859

GASKET,AIR INTAKE PIPE

Part Number	Qty.	Specifications	Price
KJ0120859	1		€ 4,75

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA020603	1		€ 2,02

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510616A	1		€ 0,93

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510830A	1		€ 0,82

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510855A	1		€ 1,67

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801G	1		€ 1,57

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
9WE100600B	1		€ 2,56

» 99307

PLUG,BLIND

Part Number	Qty.	Specifications	Price
993071400	1		€ 1,30

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9H6BD0612	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940830	1		€ 2,31

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940845	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940855	1		€ 3,23

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960816	1		€ 1,92

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960845	1		€ 1,53

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960880	1		€ 1,95

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960890	1		€ 2,74

Inlet Manifold(2300cc)
