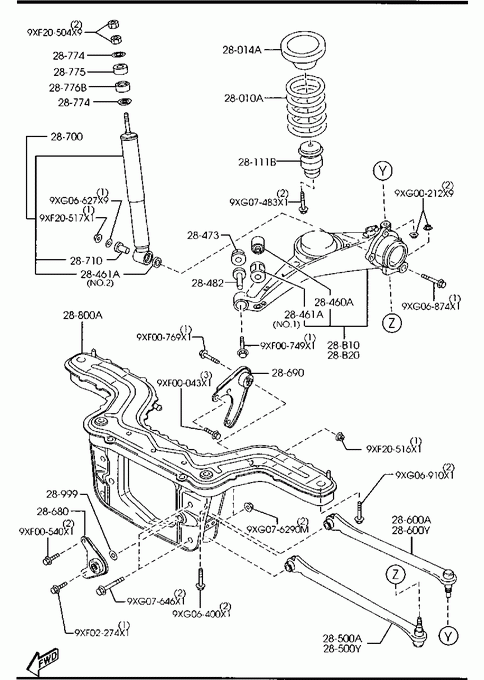

Rear Suspension Mechanisms
-
» 28010A SPRING,COIL-REAR Part Number Qty. Specifications Price EC0128011A 2 2WD EC0228011A 2 4WD
W/O GLASS SUNROOF€ 68,60 EC0328011A 2 W/GLASS SUNROOF
4WD» 28014A SHEET,RUBBER Part Number Qty. Specifications Price EC0128012E 2 AN (EC01-28-012F)
- 020722€ 5,71 EC0128012F 2 AN (EC01-28-012G)
- 020722EC0128012G 2 020722 - € 5,94 » 28111B STOPPER,BUMP Part Number Qty. Specifications Price EC0128110B 2 AN (EC01-28-110C)
- 020701€ 39,44 EC0128110C 2 AN (EC01-28-110D)
020701 - 021201EC0128110D 2 021201 - € 27,72 » 28460A BUSH,RUBBER-TORSION AXLE Part Number Qty. Specifications Price E10028460 2 AN (EF91-28-460) € 36,47 » 28461A RUBBER,STOPPER Part Number Qty. Specifications Price E10028461 2 AN (E100-28-461A)
ILLUST. NO.1
- 030301€ 22,00 E10028461A 2 ILLUST. NO.1
030301 -EC0128463 2 AN (EC01-28-463A)
ILLUST. NO.2€ 14,65 » 28473 PLATE,CAM-SUB FRAME Part Number Qty. Specifications Price EC0128473A 2 - 031201 € 5,20 EF9128473 2 AN (EF91-28-473A)
031201 - 040801€ 5,20 EF9128473A 2 AN (EF91-28-473B)
040801 -€ 5,20 » 28482 PLATE,CAM Part Number Qty. Specifications Price EC0128482C 2 - 031201 € 12,28 EF9128482 2 AN (EF91-28-482A)
031201 - 040801€ 7,83 EF9128482A 2 AN (EF91-28-482B)
040801 -» 28500A LINK(R),LATERAL Part Number Qty. Specifications Price EC0128500E 1 A (EC01-28-500F)
- 020722€ 74,38 EC0128500F 1 AN (EF91-28-500)
020722 -€ 74,38 » 28500Y LINK(L),LATERAL Part Number Qty. Specifications Price EC0128550E 1 A (EC01-28-550F)
- 020722€ 108,46 EC0128550F 1 AN (EF91-28-550)
020722 -€ 108,46 » 28600A LINK(R),LATERAL-REAR SIDE Part Number Qty. Specifications Price EC0128600C 1 AN (EC01-28-600D) € 44,80 » 28600Y LINK(L),LATERAL-REAR SIDE Part Number Qty. Specifications Price EC0128650C 1 AN (EC01-28-650D) € 93,77 » 28680 RUBBER,DIFF. MTG-FRT Part Number Qty. Specifications Price EC012868XC 2 4WD € 61,42 » 28690 RUBBER,DIFF. MTG-RR Part Number Qty. Specifications Price EC0128690B 1 4WD € 27,68 » 28700 DAMPER,REAR Part Number Qty. Specifications Price EC0128700K 2 AN (EC01-28-700L)
2000
- 020722€ 82,02 EC0128700M 2 AN (EC01-28-700N)
2000
020722 - 021201EC0628700E 2 AN (EC06-28-700F)
3000
- 020722€ 82,01 EC0628700F 2 AN (EC06-28-700G)
3000
020722 - 021201€ 82,01 EC0628700J 2 021201 - € 84,49 » 28710 BUSH,DAMPER Part Number Qty. Specifications Price EC0128710 2 AN (EC01-28-710A)
- 021201EC0128710A 2 021201 - » 28774 RETAINER,REAR DAMPER Part Number Qty. Specifications Price EC0128774A 4 € 7,15 » 28775 BUSH,RUBBER Part Number Qty. Specifications Price EC0128775A 2 € 2,18 » 28776B BUSH,REAR DAMPER-LOWER Part Number Qty. Specifications Price EC0128776B 2 € 5,58 » 28800A MEMBER,CROSS Part Number Qty. Specifications Price EC0128800G 1 AN (EC01-28-800H)
4WD
- 040901€ 434,03 EC0128800H 1 4WD
040901 -€ 272,16 EC0328800G 1 AN (EC03-28-800H)
2WD
- 040901EC0328800H 1 2WD
040901 -» 28999 WASHER Part Number Qty. Specifications Price EC0128999A 1 (4WD>2000)
- 020501€ 7,49 » 28B10 ARM(R),TRAILING Part Number Qty. Specifications Price E10028B10F 1 AN (E100-28-B10G)
- 030301€ 490,65 E10028B10G 1 AN (E100-28-B10H)
030301 - 040601E10028B10H 1 040601 - » 28B20 ARM(L),TRAILING Part Number Qty. Specifications Price E10028B20G 1 AN (E100-28-B20H)
- 030301€ 490,65 E10028B20H 1 AN (E100-28-B20J)
030301 - 040601€ 500,46 E10028B20J 1 040601 - € 510,47 » 90780 BOLT Part Number Qty. Specifications Price 9XF00043X1 1 € 11,19 » 90780 BOLT Part Number Qty. Specifications Price 9XF00540X1 1 € 4,83 » 90780 BOLT Part Number Qty. Specifications Price 9XF00749X1 1 € 1,73 » 90780 BOLT Part Number Qty. Specifications Price 9XF00769X1 1 € 3,87 » 90780 BOLT Part Number Qty. Specifications Price 9XF02274X1 1 € 6,83 » 90780 BOLT Part Number Qty. Specifications Price 9XF20504X9 1 € 1,97 » 90780 BOLT Part Number Qty. Specifications Price 9XG06400X1 1 € 1,93 » 90780 BOLT Part Number Qty. Specifications Price 9XG06874X1 1 € 10,24 » 90780 BOLT Part Number Qty. Specifications Price 9XG06910X1 1 € 17,30 » 90780 BOLT Part Number Qty. Specifications Price 9XG07483X1 1 » 90780 BOLT Part Number Qty. Specifications Price 9XG07646X1 1 € 1,85 » 90901 NUT Part Number Qty. Specifications Price 9XF20516X1 1 € 7,78 » 90901 NUT Part Number Qty. Specifications Price 9XF20517X1 1 € 0,21 » 90901 NUT Part Number Qty. Specifications Price 9XG00212X9 1 € 1,43 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 9XG076290M 1 € 0,15 » 99201 WASHER Part Number Qty. Specifications Price 9XG06627X9 1 € 0,89
