Mazda RX-8 SE 2003-04 Mazda Floor Attachments 01/02 02/02

Mazda parts catalog

Parts > Mazda RX-8 > 2003-04 > Body Exterior Trim > Floor Attachments

Search by part number:

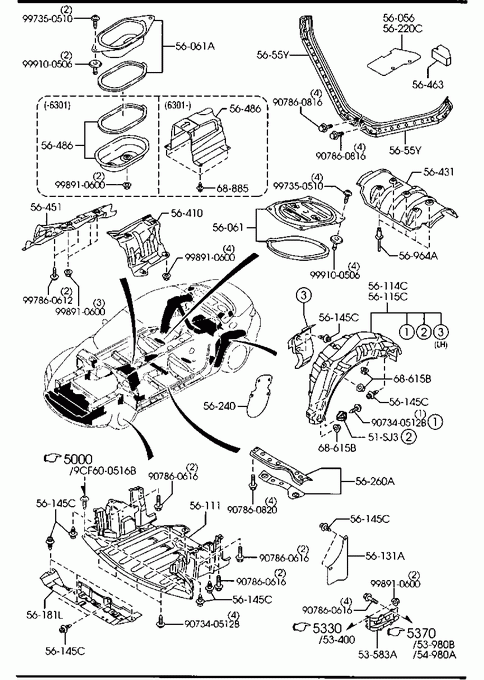

Floor Attachments

01/02
02/02

CLIP

Part Number	Qty.	Specifications	Price
C10051SJ3A	2		€ 2,36

» 53583A

GUSSET,NO.1

Part Number	Qty.	Specifications	Price
F15156521	2		€ 15,33

» 56056

COVER,HOLE

Part Number	Qty.	Specifications	Price
F15156078B	1	AN (F151-56-078C) - 030601 SE17 -100087**
F15156078C	1	AN (F151-56-078D) 030601 - 040501 SE17100087-120312**
F15156078D	1	AN (F151-56-078E) 040501 - 040901 SE17120312-125705**
F15156078E	1	040901 - SE17125705-**

» 56061

COVER,SERVICE HOLE

Part Number	Qty.	Specifications	Price
F15156070B	2	AN (F151-56-070C) - 071012 SE17 -149521**
F15156070C	2	071012 - SE17149521-**

» 56061A

COVER,HOLE

Part Number	Qty.	Specifications	Price
F1515606XA	1	- 060301 SE17 -141564**
F1515606XC	1	060301 - SE17141564-**

» 56111

COVER,UNDER

Part Number	Qty.	Specifications	Price
F15156110C	1	A (F151-56-110D) - 060401 SE17 -142091**	€ 101,04
F15156110D	1	060401 - SE17142091-**	€ 103,06

» 56114C

GUARD(R),MUD-REAR

Part Number	Qty.	Specifications	Price
F157561H0C	1	AN (F157-56-1H0D) - 040601 SE17 -121342**	€ 80,96
F157561H0D	1	AN (F157-56-1H0E) 040601 - 040701 SE17121342-122888**	€ 80,96
F157561H0E	1	AN (F157-56-1H0F) 040701 - 040825 SE17122888-125323**	€ 80,96
F157561H0F	1	AN (F157-56-1H0G) 040825 - 060822 SE17125323-143556**	€ 80,96
F157561H0G	1	060822 - SE17143556-**	€ 82,58

» 56115C

GUARD(L),MUD-REAR

Part Number	Qty.	Specifications	Price
F157561J0C	1	AN (F157-56-1J0D) - 040601 SE17 -121342**	€ 80,96
F157561J0D	1	AN (F157-56-1J0E) 040601 - 040701 SE17121342-122888**
F157561J0E	1	AN (F157-56-1J0F) 040701 - 040825 SE17122888-125323**	€ 80,96
F157561J0F	1	AN (F157-56-1J0G) 040825 - 060822 SE17125323-143556**	€ 80,96
F157561J0G	1	060822 - SE17143556-**	€ 82,58

» 56131A

SHIELD,SPLASH

Part Number	Qty.	Specifications	Price
F15156321C	2	AN (F151-56-321D) - 030901 SE17 -101157**
F15156321D	2	AN (F151-56-321E) 030901 - 040301 SE17101157-116340**	€ 7,84
F15156321E	2	040301 - SE17116340-**	€ 8,16

» 56145C

CLIP,MUD GUARD

Part Number	Qty.	Specifications	Price
BC1D56145	21	041001 - SE17126932-**	€ 0,64

» 56181L

PLATE,SEAL-RAD. SHROUD

Part Number	Qty.	Specifications	Price
F151561Y1B	1	AN (F151-56-1Y1C) - 030901 SE17 -101157**	€ 16,33
F151561Y1C	1	AN (F151-56-1Y1D) 030901 - 040401 SE17101157-119008**	€ 16,33
F151561Y1D	1	040401 - SE17119008-**	€ 16,33

» 56220C

COVER,HOLE

Part Number	Qty.	Specifications	Price
F15156079B	1	AN (F151-56-079C) - 030601 SE17 -100087**	€ 5,50
F15156079C	1	AN (F151-56-079D) 030601 - 040501 SE17100087-120312**
F15156079D	1	AN (F151-56-079E) 040501 - 040901 SE17120312-125705**
F15156079E	1	040901 - SE17125705-**

» 56240

COVER

Part Number	Qty.	Specifications	Price
F15156065A	2	AN (F151-56-065B) - 040501 SE17 -120312**	€ 6,29
F15156065B	2	AN (F151-56-065C) 040501 - 040901 SE17120312-125705**
F15156065C	2	040901 - SE17125705-**

» 56260A

BRACKET

Part Number	Qty.	Specifications	Price
F15156H20B	1		€ 25,31

» 56410

INSULATOR,HEAT-FRONT

Part Number	Qty.	Specifications	Price
F15256440	1	AN (F152-56-440A) - 040601 SE17 -121342**	€ 133,59
F15256440B	1	A (F152-56-440C) 040601 - 041001 SE17121342-126932**
F15256440C	1	AN (F152-56-440D) 041001 - 050601 SE17126932-131130**	€ 133,59
F15256440D	1	050601 - SE17131130-**	€ 138,89

» 56431

INSULATOR,HEAT

Part Number	Qty.	Specifications	Price
F15156451A	1		€ 42,32

» 56451

INSULATOR

Part Number	Qty.	Specifications	Price
F15256410	1	AN (F152-56-410A) - 040601 SE17 -121342**
F15256410B	1	AN (F152-56-410C) 040601 - 050620 SE17121342-132209**	€ 184,56
F15256410C	1	050620 - SE17132209-**	€ 188,25

» 56463

INSULATOR,REAR

Part Number	Qty.	Specifications	Price
F15156463	2

» 56486

INSULATOR

Part Number	Qty.	Specifications	Price
F1515645YA	1	AN (F151-56-45YB) - 030708 SE17 -100089**	€ 13,55
F1515645YB	1	CG (F152-56-454) 030708 - 060301 SE17100089-141564**
F15256454	1	AN (F152-56-454A) 060301 - 060401 SE17141564-142091**
F15256454A	1	060401 - SE17142091-**

» 5655Y

BRACE-DIAGONAL

Part Number	Qty.	Specifications	Price
F1515655YB	2	AN (F151-56-55YC) - 040401 SE17 -119008**	€ 32,86
F1515655YC	2	040401 - SE17119008-**	€ 34,19

» 56964A

RIVET,SEAL PLATE-SHROUD

Part Number	Qty.	Specifications	Price
B25D56398	5		€ 0,57

» 68615B

NUT,FLANGE-CAP

Part Number	Qty.	Specifications	Price
B10068615	6	- 050712 SE17 -133362**	€ 0,93
UH7168615	6	050712 - SE17133362-**	€ 0,61

» 68885

FASTENER

Part Number	Qty.	Specifications	Price
NE5156146	4	060301 - SE17141564-**

» 90720

SCREW

Part Number	Qty.	Specifications	Price
907340512B	1		€ 0,86

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816	1		€ 2,06

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860820	1		€ 2,68

» 90901

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997350510	1		€ 0,62

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100506	1		€ 2,12
