Parts > Mazda RX-8 > 2003-04 > Rotary-engine Supplement > Cooling System

Search by part number:

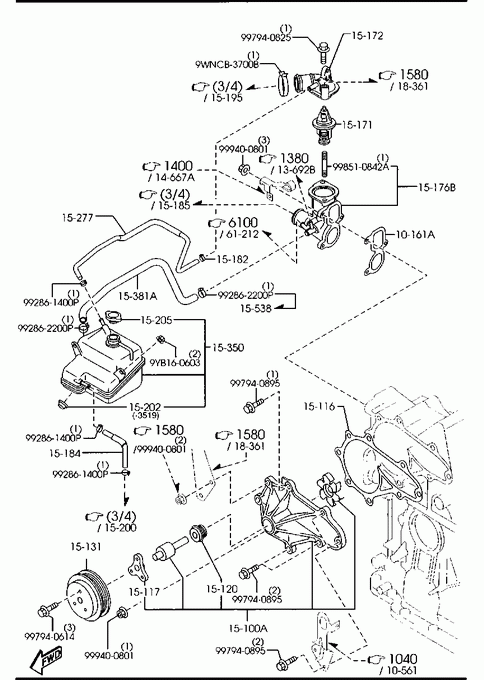

Cooling System

GASKET

Part Number	Qty.	Specifications	Price
N3H110153	1		€ 5,51

» 15100A

HOUSING,WATER PUMP

Part Number	Qty.	Specifications	Price
N3H115100A	1	AN (N3H1-15-100B) - 040401 SE17 -119008**	€ 141,18
N3H115100B	1	040401 - SE17119008-**	€ 146,88

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
N3H115116	1		€ 7,07

» 15117

BOSS,W.PUMP PULLEY

Part Number	Qty.	Specifications	Price
E30115117	1		€ 16,43

» 15120

SEAL,WATER-PUMP

Part Number	Qty.	Specifications	Price
N3H115120	1	AN (N3H1-15-120A) - 040401 SE17 -119008**
N3H115120A	1	040401 - SE17119008-**

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
N3H115131	1		€ 12,39

» 15171

THERMOSTAT

Part Number	Qty.	Specifications	Price
N3H115171	1		€ 25,81

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
N3H115170B	1	A (N3H1-15-170C) - 071119	€ 57,28
N3H115170C	1	071119 -

» 15176B

CASE,THERMOSTAT

Part Number	Qty.	Specifications	Price
N3H1151H0A	1	AN (N3H1-15-1H0B) - 040201 SE17 -115023**
N3H1151H0B	1	040201 - 041201 SE17115023-129710**
N3H1151H0C	1	A (N3H1-15-1H0D) 041201 - 071119 SE17129710-**
N3H1151H0D	1	071119 -

» 15182

CLAMP,WATER HOSE

Part Number	Qty.	Specifications	Price
N3A115182A	1

» 15184

HOSE,WATER

Part Number	Qty.	Specifications	Price
N3H115184B	1	AN (N3H1-15-184C) - 030523 SE17 -100087**	€ 20,40
N3H115184D	1	030523 - SE17100087-**	€ 20,40

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
JE4815202	3	AN (LFG1-15-202) - 030519 SE17 -100087**	€ 4,36

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
D31615205	1	CALSONIC - 050513 SE17 -131130**	€ 14,93
N3H115205	1	050513 - SE17131130-**

» 15277

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
N3H115380A	1		€ 45,61

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
N3H115350E	1	AN (N3H1-15-350F) - 030519 SE17 -100087**
N3H115350F	1	AN (N3H1-15-350G) 030519 - 030918 SE17100087-102802**	€ 183,96
N3H115350G	1	A (N3H1-15-350H) 030918 - 050522 SE17102802-131130**	€ 183,43
N3H115350H	1	050522 - 050701 SE17131130-132989**	€ 187,10
N3H115350J	1	050701 - SE17132989-**	€ 187,64

» 15381A

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
N3H115381B	1	AN (N3H1-15-381C) - 040301 SE17 -116340**	€ 29,99
N3H115381C	1	040301 - 041201 SE17116340-129710**	€ 31,20
N3H115381D	1	041201 - SE17129710-**

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
N3H115538	1	050101 - SE17130232-**

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510842A	1		€ 1,58

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB160603	1		€ 3,02

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992861400P	1		€ 2,44

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862200P	1		€ 2,73

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3700B	1		€ 3,12

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940614	1		€ 1,13

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940825	1		€ 1,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940895	1		€ 2,59
