Mazda RX-7 FD 1994-07 Mazda Air Conditioner 01/02 (PIPE & CONDENSER) 02/02 (CLIP & BRACKET)

Mazda parts catalog

Parts > Mazda RX-7 > 1994-07 > Body Dashboard > Air Conditioner

Search by part number:

Air Conditioner

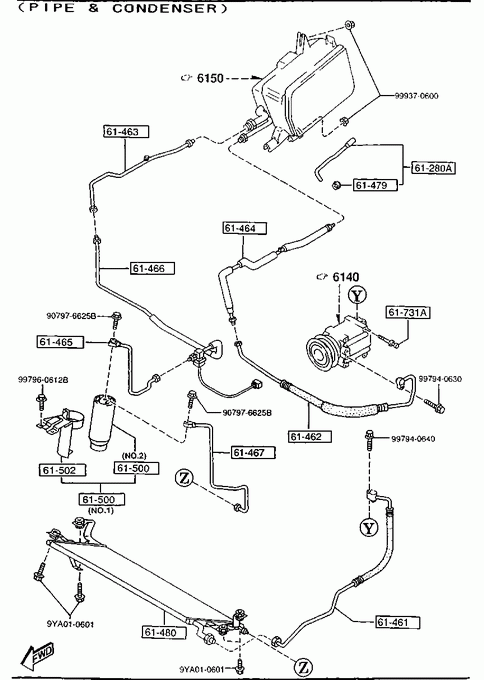

01/02 (PIPE & CONDENSER)
02/02 (CLIP & BRACKET)

» 61280A HOSE,DRAIN

Part Number Qty. Specifications Price
FD1561280 1

» 61461 HOSE,FLEXIBLE-HIGH

Part Number Qty. Specifications Price
FD1561461 1
€ 128,25

» 61462 HOSE,FLEXIBLE-LOW

Part Number Qty. Specifications Price
FD1561462 1

» 61463 PIPE NO.1,COOLER

Part Number Qty. Specifications Price
FD1561464 1

» 61464 PIPE NO.2,COOLER

Part Number Qty. Specifications Price
FD1561465A 1

» 61465 PIPE NO.3,COOLER

Part Number Qty. Specifications Price
FD1561466 1

» 61466 PIPE NO.4,COOLER

Part Number Qty. Specifications Price
FD1561467A 1
€ 144,23

» 61467 PIPE NO.5,COOLER

Part Number Qty. Specifications Price
FD1561468 1
€ 50,47

» 61479 GROMMET

Part Number Qty. Specifications Price
FB0161478A 1

» 61480 CONDENSER

Part Number Qty. Specifications Price
F11061480 1
€ 549,65

» 61500 TANK,LIQUID

Part Number Qty. Specifications Price
FD1561500 1 ILLUST. NO.1
€ 97,83
N02661501 1 ILLUST. NO.2

» 61502 BRACKET,TANK

Part Number Qty. Specifications Price
FD0461502 1
€ 33,75

» 61731A BOLT,AIR CON.

Part Number Qty. Specifications Price
FD0561731 4
€ 2,28

» 90780 BOLT

Part Number Qty. Specifications Price
997940640 1
€ 1,63

» 90780 BOLT

Part Number Qty. Specifications Price
9YA010601 1
€ 2,28

» 90901 NUT

Part Number Qty. Specifications Price
999370600 1
€ 3,66

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940630 1
€ 1,18

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612B 1
€ 0,37

Part Number	Qty.	Specifications	Price
FD1561500	1	ILLUST. NO.1	€ 97,83
N02661501	1	ILLUST. NO.2
