- Parts > Mazda RX-7 > 1993-08 > Body Exterior Trim > Front Door Mechanisms
- Search by part number:
-

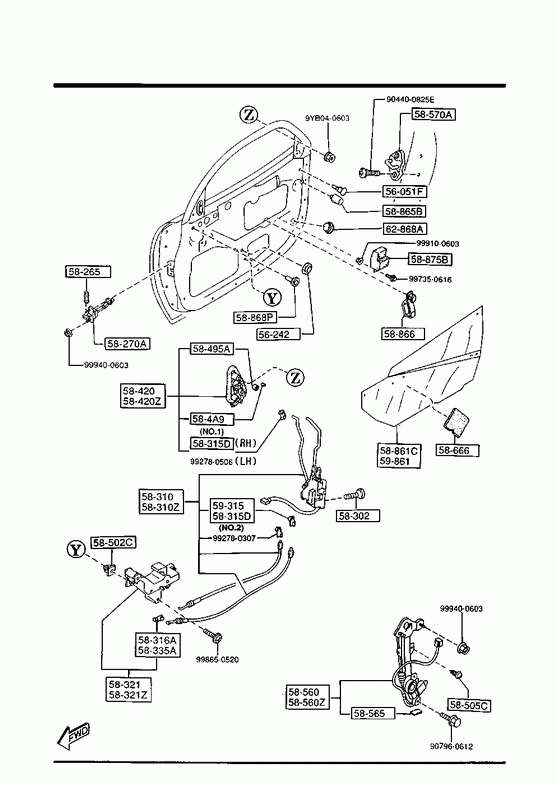

Front Door Mechanisms
-
» 56051F PLUG,DRAIN-WHL APRON UP. Part Number Qty. Specifications Price B45556051A 1 € 2,14 » 56242 PLUG,DRAIN Part Number Qty. Specifications Price 011856242B 2 € 0,42 » 58265 PIN,CHECKER Part Number Qty. Specifications Price BC1D58265 2 € 3,39 » 58270A CHECKER,DOOR Part Number Qty. Specifications Price FD0158270B 2 A (FD01-58-270C) € 26,73 » 58302 SCREW,TAPPING-DOOR LOCK Part Number Qty. Specifications Price GA5R58302A 6 AN (GA5R-58-302B) € 0,81 » 58310 LOCK(R),DOOR Part Number Qty. Specifications Price FD2658310 1 A (FD26-58-310A) » 58310Z LOCK(L),DOOR Part Number Qty. Specifications Price FD1559310 1 AN (FD15-59-310B) € 189,17 » 58315D CLIP (R) Part Number Qty. Specifications Price FD0158315 1 ILLUST. NO.1
FOR RIGHT SIDEG03058315 1 ILLUST. NO.2
FOR LEFT SIDE€ 1,84 » 58316A CLIP Part Number Qty. Specifications Price B00159335 2 FOR RIGHT SIDE € 2,08 » 58321 HANDLE(R),INNER Part Number Qty. Specifications Price FD0158330C 1 » 58321Z HANDLE(L),INNER Part Number Qty. Specifications Price FD0159330C 1 » 58335A CLIP Part Number Qty. Specifications Price FB0158335 2 FOR LEFT SIDE € 2,58 » 58420 HANDLE(R),OUTER Part Number Qty. Specifications Price FD1458410A 1 A (FD14-58-410B)
- 940110
FD13B2 -200008€ 80,58 FD1458410B 1 A (FD14-58-410C)
940110 -
FD13B2200008-» 58420Z HANDLE(L),OUTER Part Number Qty. Specifications Price FD2659410B 1 A (FD26-59-410C)
- 940110
FD13B2 -200008FD2659410C 1 A (FD26-59-410D)
940110 -
FD13B2200008-€ 115,84 » 58495A RETAINER,LOCK CYL. Part Number Qty. Specifications Price J00158495 2 € 1,76 » 584A9 PLUG,OUTER HANDLE Part Number Qty. Specifications Price HG30584A9 1 € 1,40 » 58502C GROMMET,SCREW Part Number Qty. Specifications Price FD0158332 10 € 1,42 » 58505C SCREW,WINDOW REGULATOR Part Number Qty. Specifications Price B09258505 4 € 1,35 » 58560 REGULATOR(R),WINDOW Part Number Qty. Specifications Price FD1558560B 1 AN (FD15-58-560C) » 58560Z REGULATOR(L),WINDOW Part Number Qty. Specifications Price FD1559560B 1 AN (FD15-59-560C) » 58565 RUBBER,STOPPER Part Number Qty. Specifications Price GA7C58565 2 € 10,47 » 58570A STRIKER Part Number Qty. Specifications Price FD0158361 2 € 9,34 » 58666 SHEET Part Number Qty. Specifications Price B09258862 5 € 5,26 » 58861C SCREEN(R),FRONT DOOR Part Number Qty. Specifications Price FD1558861 1 AN (FD15-58-861A) » 58865B CUSHION,RUBBER Part Number Qty. Specifications Price G06758873 2 € 2,49 » 58866 CLIP Part Number Qty. Specifications Price B03858866 3 € 1,77 » 58868P COVER,HOLE-DOOR BODY Part Number Qty. Specifications Price FD0158868 4 € 1,70 » 58875B PAD Part Number Qty. Specifications Price FD1558875B 2 A (FD15-58-875C)
- 931102
FD13B2 -200007€ 3,08 FD1558875D 2 A (FD15-58-875E)
931102 - 940107
FD13B2200007-200007€ 3,08 FD1558875E 2 940107 -
FD13B2200007-€ 3,08 » 59315 CLIP Part Number Qty. Specifications Price G03059315 1 FOR RIGHT SIDE € 1,84 » 59861 SCREEN(L),FRONT DOOR Part Number Qty. Specifications Price FD1559861 1 AN (FD15-59-861A) » 62868A COVER,HOLE-LIFT GATE Part Number Qty. Specifications Price B49962868 2 € 1,35 » 90720 SCREW Part Number Qty. Specifications Price 904400825E 1 € 0,51 » 90780 BOLT Part Number Qty. Specifications Price 907960612 1 € 2,61 » 90901 NUT Part Number Qty. Specifications Price 9YB040603 1 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400603 1 € 2,05 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350616 1 € 0,60 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998650520 1 € 0,57 » 99274 CLIP Part Number Qty. Specifications Price 992780307 1 € 2,18 » 99274 CLIP Part Number Qty. Specifications Price 992780506 1 € 2,26 » 99910 GROMMET,SCREW Part Number Qty. Specifications Price 999100603 1 € 1,69
