Air Conditioner 01/02 (PIPE & CONDENSER) 02/02 (CLIP & BRACKET)

Air Conditioner |

Mazda parts catalog

Parts > Mazda RX-7 > 1992-01 > Body Dashboard > Air Conditioner

Search by part number:

Air Conditioner
01/02 (PIPE & CONDENSER)

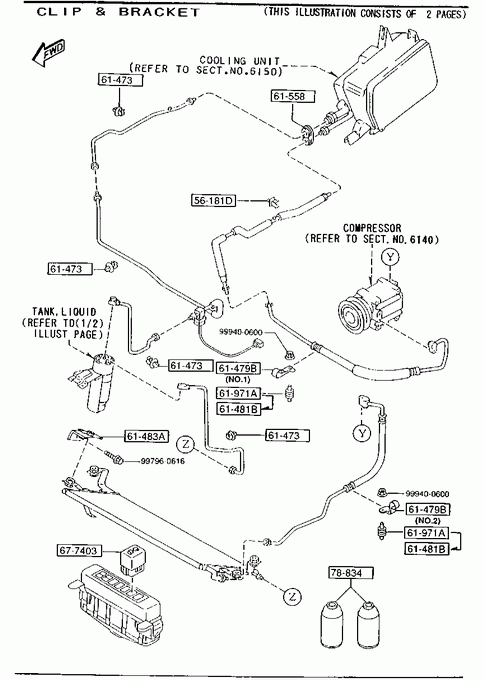

02/02 (CLIP & BRACKET)

» 56181D CLIP

Part Number Qty. Specifications Price
S08356181 1

» 61473 CLIP,PIPE

Part Number Qty. Specifications Price
FD0161473 4

» 61479B CLIP

Part Number Qty. Specifications Price
FD0461479A 1 ILLUST. NO.1

FD0561479 1 ILLUST. NO.2

» 61481B RUBBER,INSULATOR

Part Number Qty. Specifications Price
FD0461481 2 930201 -
FD13B2100819- € 7,53

» 61483A BRACKET,CONDENSER

Part Number Qty. Specifications Price
FD0461483A 1
€ 13,70

» 61558 GROMMET,UNIT-COOLING

Part Number Qty. Specifications Price
LA0161558A 1

» 61971A RUBBER,INSULATOR

Part Number Qty. Specifications Price
FB0161731 2 - 930201
FD13B2 -100819 € 8,09

» 677403 RELAY,N.O.

Part Number Qty. Specifications Price
H27067740 1 30A
€ 19,76

» 78834 REFRIGERANT DRUM

Part Number Qty. Specifications Price
H03061834 2 300G
€ 13,56

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400600 1
€ 1,24

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81
