Mazda RX-7 FD 1992-01 Mazda Console

Mazda parts catalog

Parts > Mazda RX-7 > 1992-01 > Body Dashboard > Console

Search by part number:

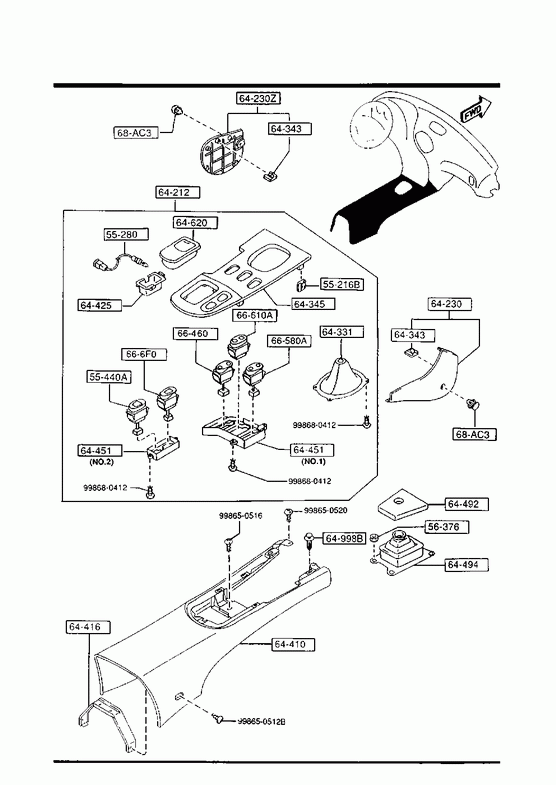

Console
» 55216B SPRING,CENTER PANEL

Part Number Qty. Specifications Price
B09255257 5
€ 1,02

» 55280 BULB & SOCKET

Part Number Qty. Specifications Price
FD0155280 1
€ 16,21

» 55440A WARNING,HEAT

Part Number Qty. Specifications Price
FD13675H0B 1 AN (FD13-67-5H0C)
€ 43,95

» 56376 NUT,SELF LOCK

Part Number Qty. Specifications Price
B00156376 4
€ 1,58

» 64212 PANEL,CONSOLE

Part Number Qty. Specifications Price
FD1464470D 1 - 920301
FD13B2 -100041
FD1464470E 1 920301 - 920303
FD13B2100041-100047
FD1464470F 1 920303 -
FD13B2100047-

» 64230 WALL(R),SIDE

Part Number Qty. Specifications Price
FD0164220A 1

» 64230Z WALL(L),SIDE

Part Number Qty. Specifications Price
FD0164240A 1

» 64331 BOOT,CHANGE

Part Number Qty. Specifications Price
FD0164330C 1

» 64343 SPRING

Part Number Qty. Specifications Price
H26064343 4
€ 2,17

» 64345 PANEL,SWITCH

Part Number Qty. Specifications Price
FD0164471B 1 - 920301
FD13B2 -100041
FD0164471C 1 920301 - 920303
FD13B2100041-100047
FD0164471D 1 920303 -
FD13B2100047-

» 64410 CONSOLE,REAR

Part Number Qty. Specifications Price
FD0164420E 1

» 64416 BRACKET,CONSOLE-NO.3

Part Number Qty. Specifications Price
FD0164416 1

» 64425 CASE,LAMP

Part Number Qty. Specifications Price
FD0164414A 1
€ 3,61

» 64451 PANEL,SWITCH

Part Number Qty. Specifications Price
FD0166468 1 ILLUST. NO.1

FD0266468 1 ILLUST. NO.2

» 64492 INSULATOR,BOOT

Part Number Qty. Specifications Price
FD0164490 1 A (FD01-64-490A)
€ 40,31

» 64494 PAD,CHANGE BOOT

Part Number Qty. Specifications Price
FB0164495 1
€ 1,64

» 64620 TRAY,ASH

Part Number Qty. Specifications Price
FD0164610A 1

» 64998B CLIP

Part Number Qty. Specifications Price
FD0164998 1
€ 1,20

» 66460 SWITCH,RR.DEF.

Part Number Qty. Specifications Price
FD0166460A 1
€ 51,44

» 66580A SWITCH,RR.FOG

Part Number Qty. Specifications Price
FD1466480A 1
€ 57,84

» 66610A SWITCH,HEAD LAMP CLEANER

Part Number Qty. Specifications Price
FD0166610A 1
€ 71,49

» 666F0 SWITCH,LEVEL-HEAD LAMP

Part Number Qty. Specifications Price
FD14666F0A 1
€ 54,80

» 68AC3 FASTENER

Part Number Qty. Specifications Price
B46768AC3 2

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998650512B 1
€ 0,66

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998650516 1
€ 0,51

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998650520 1
€ 0,57

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998680412 1
€ 0,48

Part Number	Qty.	Specifications	Price
FD13675H0B	1	AN (FD13-67-5H0C)	€ 43,95

Part Number	Qty.	Specifications	Price
FD1464470D	1	- 920301 FD13B2 -100041
FD1464470E	1	920301 - 920303 FD13B2100041-100047
FD1464470F	1	920303 - FD13B2100047-

Part Number	Qty.	Specifications	Price
FD0164471B	1	- 920301 FD13B2 -100041
FD0164471C	1	920301 - 920303 FD13B2100041-100047
FD0164471D	1	920303 - FD13B2100047-

Part Number	Qty.	Specifications	Price
FD0166468	1	ILLUST. NO.1
FD0266468	1	ILLUST. NO.2
