Mazda RX-7 FD 1992-01 Mazda Lift Gate Mechanisms

Mazda parts catalog

Parts > Mazda RX-7 > 1992-01 > Body Exterior Trim > Lift Gate Mechanisms

Search by part number:

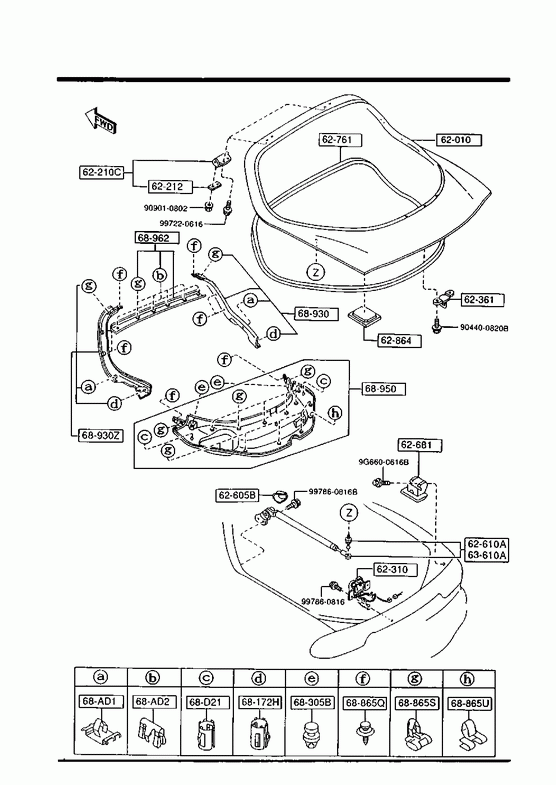

Lift Gate Mechanisms

» 62010

BODY,LIFT GATE

Part Number	Qty.	Specifications	Price
F10462020D	1	AN (F104-62-020E)	€ 518,20

» 62210C

HINGE,GLASS HATCH

Part Number	Qty.	Specifications	Price
FD0162210A	2	A (FD01-62-210B) - 921120 FD13B2 -100756
FD0162210B	2	AN (FD01-62-210C) 921120 - 930106 FD13B2100756-100786
FD0162210C	2	930106 - FD13B2100786-	€ 31,52

» 62212

GASKET,HINGE-LIFT GATE

Part Number	Qty.	Specifications	Price
B00162212	2		€ 1,54

» 62310

LOCK,LIFT GATE

Part Number	Qty.	Specifications	Price
FD0162310	1		€ 71,66

» 62361

STRIKER,LOCK

Part Number	Qty.	Specifications	Price
KA0162361	1		€ 15,32

» 62605B

COVER,DAMPER STAY

Part Number	Qty.	Specifications	Price
FB0162615	2		€ 4,47

» 62610A

STAY(R),DAMPER

Part Number	Qty.	Specifications	Price
8BF862620	1		€ 101,81

» 62681

WEDGE,LIFTGATE

Part Number	Qty.	Specifications	Price
FD0162681A	2	AN (FD01-62-681B) - 921217 FD13B2 -100776	€ 15,29
FD0162681B	2	AN (FD01-62-681C) 921217 - FD13B2100776-

» 62761

WEATHERSTRIP,LIFT GATE

Part Number	Qty.	Specifications	Price
FD0162761	1		€ 119,40

» 62864

TAPE,PROTECTOR-STOPPER

Part Number	Qty.	Specifications	Price
B46762864	2	AN (B467-62-864A)	€ 1,96

» 63610A

STAY(L),DAMPER

Part Number	Qty.	Specifications	Price
8BF463620	1		€ 99,14

» 68172H

FASTENER,CTR.P/UPP.

Part Number	Qty.	Specifications	Price
B10068215A	2		€ 1,20

» 68305B

STRAP,HANGER

Part Number	Qty.	Specifications	Price
FD0168301	2

» 68865Q

FASTENER

Part Number	Qty.	Specifications	Price
GJ2168885B	8

» 68865S

CLIP,TRIM

Part Number	Qty.	Specifications	Price
GJ1268865	19		€ 1,88

» 68865U

CLIP,TRIM

Part Number	Qty.	Specifications	Price
GJ2168865	1		€ 1,21

» 68930

TRIM(R),LIFT GATE-SIDE

Part Number	Qty.	Specifications	Price
FD0168940B	1

» 68930Z

TRIM(L),LIFT GATE-SIDE

Part Number	Qty.	Specifications	Price
FD0168950B	1

» 68950

TRIM,LIFTGATE-LOWER

Part Number	Qty.	Specifications	Price
FD0168960B	1	- 921102 FD13B2 -100754
FD0168960C	1	921102 - FD13B2100754-

» 68962

TRIM,LIFTGATE-UPPER

Part Number	Qty.	Specifications	Price
FD0168930A	1

» 68AD1

CLIP,SLIDE

Part Number	Qty.	Specifications	Price
B49968AD1A	2		€ 1,98

» 68AD2

CLIP

Part Number	Qty.	Specifications	Price
B45568AD2	2		€ 2,05

» 68D21

CLIP,TRIM

Part Number	Qty.	Specifications	Price
LA1068D21	2		€ 2,64

» 90720

SCREW

Part Number	Qty.	Specifications	Price
904400820B	1		€ 0,40

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997220616	1		€ 1,76

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909010802	1		€ 2,18

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860816	1		€ 1,73

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860816B	1		€ 1,61

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9G6600616B	1		€ 0,64
