Mazda RX-7 FD 1992-01 Mazda Floor Attachments

Mazda parts catalog

Parts > Mazda RX-7 > 1992-01 > Body Exterior Trim > Floor Attachments

Search by part number:

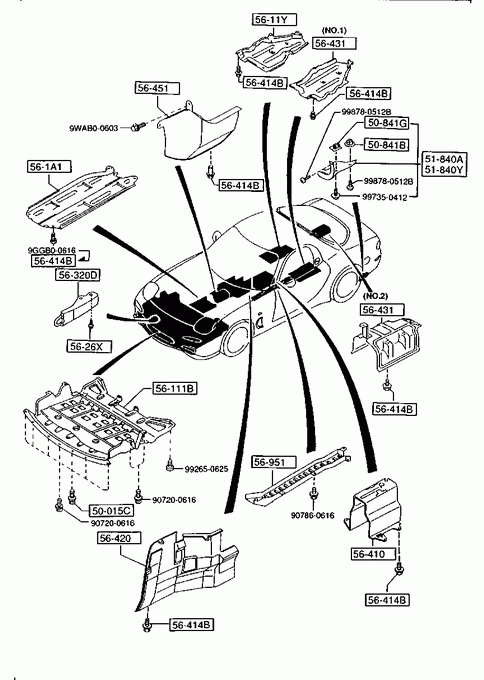

Floor Attachments
» 50015C BOLT

Part Number Qty. Specifications Price
BR70500Z2 6
€ 2,20

» 50841B GROMMET,SCREW

Part Number Qty. Specifications Price
FB0150841 2
€ 1,19

» 50841G GROMMET,SCREW

Part Number Qty. Specifications Price
F04451912 2 - 920218
FD13B2 -100023 € 2,39
FD1351912 2 920218 -
FD13B2100023- € 3,62

» 51840A FLAP(R),REAR

Part Number Qty. Specifications Price
FD1351870 1 A (FD13-51-870A)
- 920218
FD13B2 -100023 € 76,16
FD1351870A 1 920218 -
FD13B2100023- € 77,68

» 51840Y FLAP(L),REAR

Part Number Qty. Specifications Price
FD1351880 1 A (FD13-51-880A)
- 920218
FD13B2 -100023 € 76,16
FD1351880A 1 920218 -
FD13B2100023- € 79,23

» 56111B COVER,UNDER-FRONT

Part Number Qty. Specifications Price
FD01561B0B 1 AN (FD01-56-1B0C)
€ 157,18

» 5611Y COVER,UNDER-REAR

Part Number Qty. Specifications Price
FD0156113A 1
€ 122,11

» 561A1 COVER,T/MISSION

Part Number Qty. Specifications Price
FD01561A1 1 AN (FD01-56-1A1B)
- 920402
FD13B2 -100169
FD01561A1C 1 920402 -
FD13B2100169- € 165,15

» 5626X BOLT,REAR HOOK

Part Number Qty. Specifications Price
J0015626XA 2
€ 3,34

» 56320D HOOK,TOWING

Part Number Qty. Specifications Price
FD145629X 1
€ 111,13

» 56410 INSULATOR,HEAT-FRONT

Part Number Qty. Specifications Price
FD0156430C 1
€ 309,51

» 56414B BOLT,INSULATOR,FRT HEAT

Part Number Qty. Specifications Price
FB0156414 29 930301 -
FD13B2100819- € 1,66

» 56420 INSULATOR,FRONT

Part Number Qty. Specifications Price
FD0156420C 1
€ 247,46

» 56431 INSULATOR,HEAT

Part Number Qty. Specifications Price
FD0156114A 1 ILLUST. NO.1
€ 55,37
FD0156450 1 ILLUST. NO.2
€ 217,98

» 56451 INSULATOR

Part Number Qty. Specifications Price
FD0156411 1
€ 50,67

» 56951 PROTECTOR

Part Number Qty. Specifications Price
FD0156181 1
€ 26,34

» 90730 SCREW & WASHER

Part Number Qty. Specifications Price
907200616 1
€ 1,13

» 90780 BOLT

Part Number Qty. Specifications Price
9GGB00616 1

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860616 1
€ 2,41

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
9WAB00603 1
€ 1,29

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997350412 1
€ 0,40

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998780512B 1
€ 1,24

» 99263 RIVET

Part Number Qty. Specifications Price
992650625 1
€ 2,58

Part Number	Qty.	Specifications	Price
F04451912	2	- 920218 FD13B2 -100023	€ 2,39
FD1351912	2	920218 - FD13B2100023-	€ 3,62

Part Number	Qty.	Specifications	Price
FD01561A1	1	AN (FD01-56-1A1B) - 920402 FD13B2 -100169
FD01561A1C	1	920402 - FD13B2100169-	€ 165,15

Part Number	Qty.	Specifications	Price
FD0156114A	1	ILLUST. NO.1	€ 55,37
FD0156450	1	ILLUST. NO.2	€ 217,98
