Mazda RX-7 FD 1992-01 Mazda Manual Transmission Case 01/02 02/02

Mazda parts catalog

Parts > Mazda RX-7 > 1992-01 > Rotary-engine & Transmission > Manual Transmission Case

Search by part number:

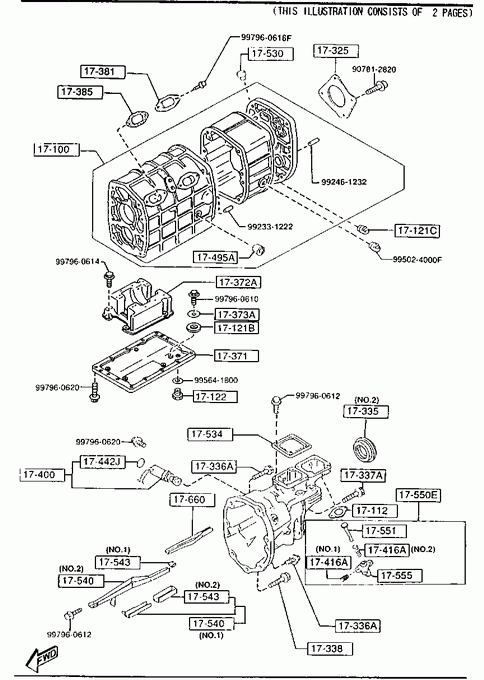

Manual Transmission Case
01/02
02/02

» 17100 CASE,T/MISSION

Part Number Qty. Specifications Price
R5011720XA 1 AN (R501-17-20XB)
€ 685,91

» 17112 GASKET

Part Number Qty. Specifications Price
S52417112 1
€ 5,95

» 17121B MAGNET

Part Number Qty. Specifications Price
R50117121 1 G (P501-17-125A)
€ 6,98

» 17121C PLUG,MAGNET

Part Number Qty. Specifications Price
010717121 1
€ 4,02

» 17122 PLUG,MAGNET

Part Number Qty. Specifications Price
081017121 1
€ 4,40

» 17325 COVER,BEARING

Part Number Qty. Specifications Price
088417325B 1 A (0884-17-325C)
€ 13,84

» 17335 SEAL,OIL

Part Number Qty. Specifications Price
G5A017335 1 ILLUST. NO.1
€ 3,90
R50117335A 1 ILLUST. NO.2
€ 17,86

» 17336A BOLT

Part Number Qty. Specifications Price
R50517337 5
€ 4,70

» 17337A BOLT

Part Number Qty. Specifications Price
R50417337 1
€ 4,66

» 17338 BOLT

Part Number Qty. Specifications Price
R50217338 1
€ 3,07

» 17371 COVER,UNDER

Part Number Qty. Specifications Price
R50217371 1 AN (R502-17-371A)
€ 71,70

» 17372A BAFFLE,OIL

Part Number Qty. Specifications Price
R50117372 1
€ 28,39

» 17373A PLATE,DRAIN PLUG-UNDER C.

Part Number Qty. Specifications Price
R50117373 1
€ 0,54

» 17381 COVER,BLIND

Part Number Qty. Specifications Price
081017381A 2
€ 5,06

» 17385 GASKET,BLIND COVER

Part Number Qty. Specifications Price
R50117385A 2 NON ASBESTOS
€ 2,35

» 17400 GEAR SET,DRIVEN-SPEED

Part Number Qty. Specifications Price
R50517400A 1 A (R505-17-400B)
- 920407
FD13B2 -100174
R50517400B 1 920407 -
FD13B2100174- € 201,02

» 17416A SPRING

Part Number Qty. Specifications Price
R50417416 1 ILLUST. NO.1
€ 2,28
R50517416 1 ILLUST. NO.2
€ 2,24
R50617416 1 ILLUST. NO.3
€ 2,28

» 17442J RING,'O'

Part Number Qty. Specifications Price
101117443 1
€ 3,00

» 17495A PLUG

Part Number Qty. Specifications Price
R50217495 1
€ 3,03

» 17530 BREATHER,AIR

Part Number Qty. Specifications Price
M50117530A 1
€ 8,56

» 17534 COVER,BLIND-EXTENSION HOUSING

Part Number Qty. Specifications Price
R50117523 1
€ 9,56

» 17540 PASS,OIL

Part Number Qty. Specifications Price
R50517540 1 HIROSHIMA SEIKEN
ILLUST. NO.1
€ 4,39
R50717540 1 ILLUST. NO.2
€ 7,43

» 17543 RUBBER,SEAL

Part Number Qty. Specifications Price
M50117543A 1 SUMINO INDUSTRY
ILLUST. NO.1
€ 2,13
R50517543 1 HIROSHIMA SEIKEN
ILLUST. NO.2
€ 4,18

» 17550E SPINDLE,SELECT

Part Number Qty. Specifications Price
R50317550 1
€ 49,36

» 17551 SPINDLE,SELECT LOCK

Part Number Qty. Specifications Price
R50217551 1
€ 10,88

» 17555 HOLDER,SPINDLE

Part Number Qty. Specifications Price
R50117555 1
€ 33,62

» 17660 PASS,OIL

Part Number Qty. Specifications Price
086217660C 1
€ 3,14

» 90781 BOLT & WASHER

Part Number Qty. Specifications Price
907812820 1
€ 1,41

» 99201 WASHER

Part Number Qty. Specifications Price
995641800 1
€ 1,18

» 99220 PIN

Part Number Qty. Specifications Price
992331222 1
€ 1,95

» 99246 PIN,DOWEL

Part Number Qty. Specifications Price
992461232 1
€ 1,20

» 99502 PLUG,SQUARE HEAD

Part Number Qty. Specifications Price
995024000F 1
€ 1,16

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960610 1
€ 0,69

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612 1
€ 0,69

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960614 1
€ 0,48

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616F 1
€ 0,73

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960620 1
€ 1,18

Part Number	Qty.	Specifications	Price
R5011720XA	1	AN (R501-17-20XB)	€ 685,91

Part Number	Qty.	Specifications	Price
G5A017335	1	ILLUST. NO.1	€ 3,90
R50117335A	1	ILLUST. NO.2	€ 17,86

Part Number	Qty.	Specifications	Price
R50517400A	1	A (R505-17-400B) - 920407 FD13B2 -100174
R50517400B	1	920407 - FD13B2100174-	€ 201,02

Part Number	Qty.	Specifications	Price
R50417416	1	ILLUST. NO.1	€ 2,28
R50517416	1	ILLUST. NO.2	€ 2,24
R50617416	1	ILLUST. NO.3	€ 2,28
