- Parts > Mazda RX-7 > 1992-01 > Rotary-engine & Transmission > Rotor Housing
- Search by part number:
-

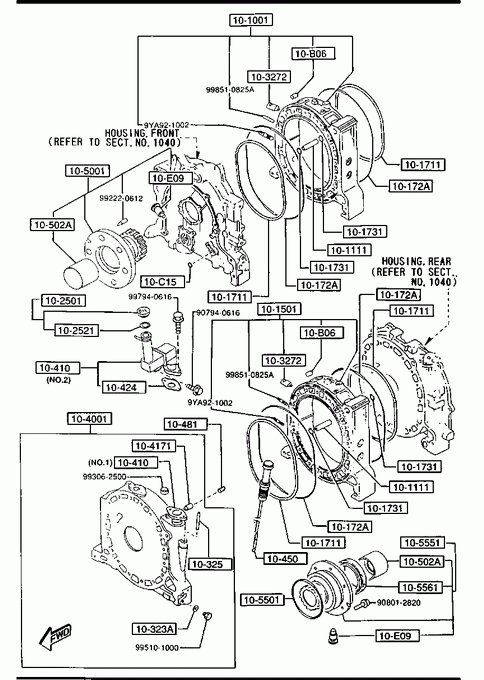

Rotor Housing
-
» 101001 HOUSING,ROTOR-FRONT Part Number Qty. Specifications Price N3A110B10 1 A (N3F1-10-S70) € 1004,49 » 101111 DOWEL,TUBULAR Part Number Qty. Specifications Price 175710111 4 € 11,28 » 101501 HOUSING,ROTOR-REAR Part Number Qty. Specifications Price N3A110B50 1 A (N3F1-10-S80) € 989,53 » 101711 RING,SQUARE-INNNER Part Number Qty. Specifications Price N32610B71A 4 € 23,63 » 10172A RING,SQUARE-OUTER Part Number Qty. Specifications Price N32610B72 4 € 6,92 » 101731 RING,'O' Part Number Qty. Specifications Price N3A110B73 4 € 5,56 » 102501 CAP,OIL FILLER Part Number Qty. Specifications Price 887110250A 1 AN (0453-10-250A) € 10,11 » 102521 GASKET,OIL CAP Part Number Qty. Specifications Price 887110252 1 € 3,03 » 10323A GASKET,WATER DRAIN-INTER. Part Number Qty. Specifications Price N32610323 1 AN (99564-1000) € 1,19 » 10325 PIPE,OIL LEVEL GAUGE Part Number Qty. Specifications Price N31810441 1 € 12,06 » 103272 PLUG,JET Part Number Qty. Specifications Price N32614633 2 € 8,61 » 104001 HOUSING,INTERMEDIATE Part Number Qty. Specifications Price N3A110D00 1 AN (N3A1-10-D00A) € 458,69 » 10410 PIPE,OIL FILLER Part Number Qty. Specifications Price N3A110420B 1 ILLUST. NO.2 € 117,94 N3A110D10 1 AN (NF01-10-D10)
ILLUST. NO.1€ 56,54 » 104171 JOINT,PIPE Part Number Qty. Specifications Price 856210417 1 - 920401
FD13B2 -100162€ 3,30 » 10424 GASKET,OIL FILLER PIPE Part Number Qty. Specifications Price N3A110424 1 € 4,27 » 10450 GAUGE,OIL LEVEL Part Number Qty. Specifications Price N3A110450A 1 A (N3A1-10-450B) € 14,92 » 10481 CAP Part Number Qty. Specifications Price 230610481 1 - 920401
FD13B2 -100162€ 1,99 » 105001 GEAR,STATIONARY-FRT. Part Number Qty. Specifications Price N3YA10E00 1 A (N3YA-10-E00A) € 289,06 » 10502A METAL,STATIONARY GEAR Part Number Qty. Specifications Price NF0110E04 2 T=1.980MM YELLOW NF0110E05 2 T=1.983MM GREEN € 47,36 NF0110E06 2 T=1.986MM BROWN € 46,43 NF0110E07 2 T=1.989MM BLACK € 44,84 NF0110E08 2 T=1.992MM BLUE NF0110E22 2 T=1.988MM YELLOW NF0110E23 2 T=1.991MM GREEN € 47,36 NF0110E24 2 T=1.994MM BROWN € 47,36 NF0110E25 2 T=1.997MM BLACK € 44,84 NF0110E26 2 T=2.000MM BLUE » 105501 GEAR,STATIONARY-RR. Part Number Qty. Specifications Price N3YA10E10 1 AN (N3YA-10-E10A)
- 920301
FD13B2 -100041€ 293,53 N3YA10E10A 1 A (N3YA-10-E10B)
920301 -
FD13B2100041-€ 293,53 » 105551 RING,'O' Part Number Qty. Specifications Price 081310555A 1 € 4,21 » 105561 SEAL,OIL Part Number Qty. Specifications Price 166810556A 1 € 15,11 » 10B06 PIN,SPRING Part Number Qty. Specifications Price N32610B06 4 € 1,99 » 10C15 RING,BACKUP Part Number Qty. Specifications Price N32610C15 1 € 2,68 » 10E09 PIN,STOPPER Part Number Qty. Specifications Price NF0110E09 2 € 5,32 » 90781 BOLT & WASHER Part Number Qty. Specifications Price 908012820 1 € 1,53 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907940616 1 € 1,73 » 90857 STUD Part Number Qty. Specifications Price 998510825A 1 € 1,46 » 90857 STUD Part Number Qty. Specifications Price 9YA921002 1 € 3,21 » 99222 PIN,SPRING Part Number Qty. Specifications Price 992220612 1 € 1,31 » 99305 PLUG Part Number Qty. Specifications Price 995101000 1 € 1,17 » 99306 CAP,SEALING Part Number Qty. Specifications Price 993062500 1 € 2,58 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616 1 € 1,28
