Mazda RX-7 FC 1989-03 Mazda Brake Pipings 01/02 (W/O A.LOCK BRAKE) 02/02 (A.LOCK BRAKE)

Mazda parts catalog

Parts > Mazda RX-7 > 1989-03 > Chassis Piping & Fuel Tank > Brake Pipings

Search by part number:

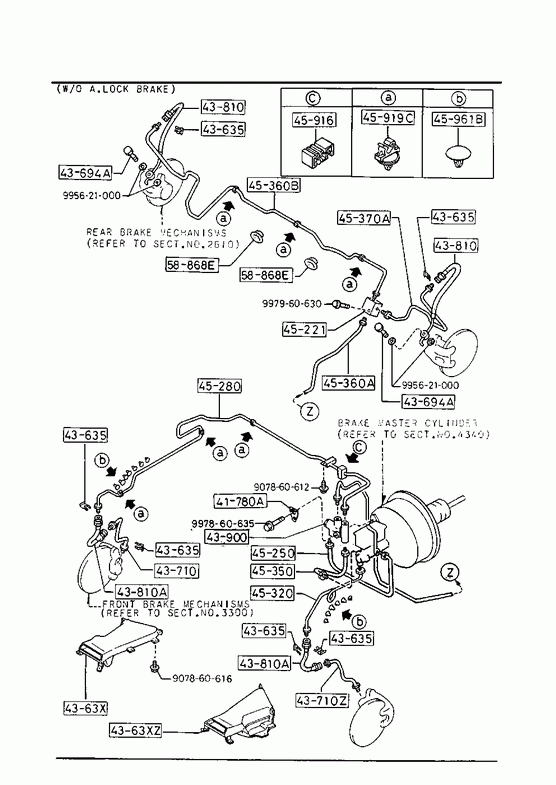

Brake Pipings

01/02 (W/O A.LOCK BRAKE)
02/02 (A.LOCK BRAKE)

BRACKET,P.B.VALVE

Part Number	Qty.	Specifications	Price
FB4441780A	1

» 43635

CLIP,FLEXIBLE HOSE

Part Number	Qty.	Specifications	Price
W02343635	6	A (W023-43-635A)	€ 1,95

» 4363X

DUCT(R),AIR-BRAKE PIPE

Part Number	Qty.	Specifications	Price
FC014363XA	1		€ 56,46

» 4363XZ

DUCT(L),AIR-BRAKE PIPE

Part Number	Qty.	Specifications	Price
FC014364XA	1		€ 56,46

» 43694A

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
B00143694A	2	A (G030-43-694)	€ 2,97

» 43710

PIPE(R),BRAKE-FRONT

Part Number	Qty.	Specifications	Price
FB0543710B	1		€ 6,24

» 43710Z

PIPE(L),BRAKE-FRONT

Part Number	Qty.	Specifications	Price
FB0543720B	1		€ 6,24

» 43810

HOSE,FLEXIBLE

Part Number	Qty.	Specifications	Price
FB0143810B	2		€ 28,94

» 43810A

HOSE NO.1,FLEXIBLE

Part Number	Qty.	Specifications	Price
FB0543810	2		€ 18,73

» 43900

VALVE,DUAL PROPORTIONING

Part Number	Qty.	Specifications	Price
FB0543900	1	A (FB10-43-900)	€ 182,64

» 45221

JOINT,PIPE

Part Number	Qty.	Specifications	Price
FB0145291A	1		€ 13,69

» 45250

PIPE,BRAKE-FRT

Part Number	Qty.	Specifications	Price
FC0643360B	1

» 45280

PIPE(R),BRAKE-FRONT

Part Number	Qty.	Specifications	Price
FB5545280F	1	A.LOCK BRAKE	€ 8,02
FC5645280	1	W/O A.LOCK BRAKE

» 45320

PIPE(L),BRAKE-FRONT

Part Number	Qty.	Specifications	Price
FB5545320G	1	A (FB55-45-320H) A.LOCK BRAKE - 890703 *FC132 -200637**	€ 22,85
FB5545320H	1	A.LOCK BRAKE 890703 - *FC132200637-**	€ 22,85
FC5645320	1	W/O A.LOCK BRAKE

» 45350

PIPE,BRAKE-REAR

Part Number	Qty.	Specifications	Price
FC0643370	1

» 45360A

PIPE,BRAKE-REAR

Part Number	Qty.	Specifications	Price
FB5545360C	1	A.LOCK BRAKE	€ 31,65
FC5645360	1	W/O A.LOCK BRAKE

» 45360B

PIPE(R),REAR BRAKE

Part Number	Qty.	Specifications	Price
FB0145380D	1	A (FB01-45-380E) - 890415 *FC132 -200174**
FB0145380E	1	890415 - *FC132200174-**	€ 18,65

» 45370A

PIPE(L),REAR BRAKE

Part Number	Qty.	Specifications	Price
FB0145370D	1		€ 18,34

» 45916

HOLDER,PIPE

Part Number	Qty.	Specifications	Price
FB5545961B	2	A.LOCK BRAKE

» 45919C

CLIP,PIPE

Part Number	Qty.	Specifications	Price
G03045919	7	A (G030-45-919A) A.LOCK BRAKE	€ 2,23

» 45961B

CAP

Part Number	Qty.	Specifications	Price
H00245961	13	W/O A.LOCK BRAKE	€ 1,54

» 58868E

PLUG,SERVICE COVER

Part Number	Qty.	Specifications	Price
055958868	2	W/O A.LOCK BRAKE	€ 2,30

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860635	1		€ 1,17

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621000	1		€ 2,06

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960630	1		€ 1,39
