Mazda RX-7 FC 1989-03 Mazda Rear Differentials

Mazda parts catalog

Parts > Mazda RX-7 > 1989-03 > Chassis Axle Suspension & Steering & Brake > Rear Differentials

Search by part number:

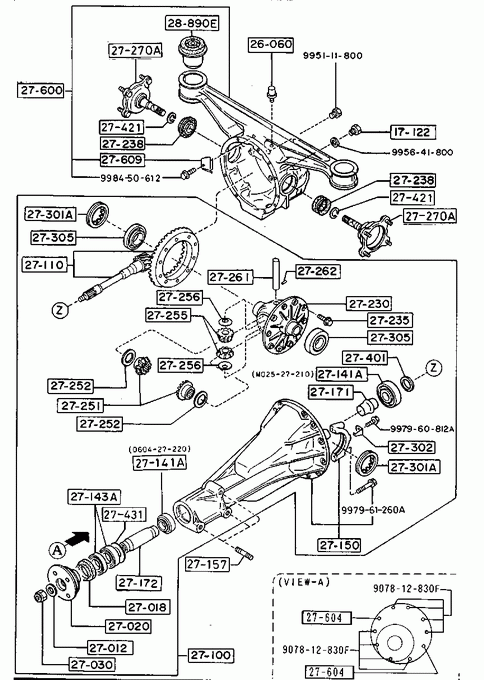

Rear Differentials

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
P04327165	1		€ 16,67

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
P01627120F	1	A (P016-27-120G) - 900901 *FC132 -202137**	€ 78,76
P01627120G	1	900901 - *FC132202137-**	€ 78,76

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
P04327100A	1	A (P043-27-100B) - 890801 *FC132 -200774**
P04327100B	1	A (P043-27-100C) 890801 - 900901 *FC132200774-202137**	€ 1712,54
P04327100C	1	900901 - *FC132202137-**	€ 1868,23

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
P01227110A	1

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
060427220	1		€ 34,45
M02527210	1		€ 40,74

» 27143A

BEARING,BALL-DRIVE PINION

Part Number	Qty.	Specifications	Price
P01627143	2		€ 38,59

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
P01627150A	1

» 27157

STUD,DIFF. CARRIER

Part Number	Qty.	Specifications	Price
P09027157	3

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
030527171	1		€ 8,24

» 27172

COLLAR,LONG-DRIVING&DIFF.

Part Number	Qty.	Specifications	Price
P01627172A	1	C (P016-27-172B) - 890801 *FC132 -200774**	€ 26,18
P01627172B	1	890801 - *FC132200774-**	€ 27,23

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
P01927231A	1

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
P04327238	2	AN (P043-27-238A)	€ 5,74

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
P01927251B	2		€ 43,68

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
057827252	2	T=2.0MM	€ 5,24
057827253	2	T=2.1MM	€ 5,62
057827254	2	T=2.2MM	€ 5,49
P01627252	2	T=2.05MM	€ 4,76
P01627253	2	T=2.15MM	€ 4,94

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
P00527255A	2	AN (P005-27-255B)	€ 33,51

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
P01627256	2		€ 4,30

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
P00527261A	1		€ 11,74

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27270A

SHAFT,OUTPUT

Part Number	Qty.	Specifications	Price
P01927270	2	A (P019-27-270A) - 900501 *FC132 -201619**	€ 77,73
P01927270A	2	A (P019-27-270B) 900501 - 901101 *FC132201619-202235**	€ 77,73
P01927270B	2	901101 - *FC132202235-**	€ 77,73

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
011027301	2		€ 5,24

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
057827302	2		€ 1,79

» 27305

BEARING

Part Number	Qty.	Specifications	Price
011827350	2	A (0118-27-350A) - 891201 *FC132 -201125**	€ 49,70
011827350A	2	891201 - *FC132201125-**	€ 51,70

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM	€ 6,29
022327402A	1	T=3.11MM	€ 5,13
022327403A	1	T=3.14MM	€ 6,29
022327404A	1	T=3.17MM	€ 6,92
022327405A	1	T=3.2MM	€ 6,09
022327406A	1	T=3.23MM	€ 6,92
022327407A	1	T=3.26MM	€ 5,60
022327408A	1	T=3.29MM	€ 6,78
022327409A	1	T=3.32MM	€ 5,60
022327411A	1	T=3.35MM	€ 6,92
022327412A	1	T=3.38MM	€ 5,60
022327413A	1	T=3.41MM	€ 6,78
022327414A	1	T=3.44MM	€ 5,60
022327415A	1	T=3.47MM	€ 5,69

» 27421

CLIP

Part Number	Qty.	Specifications	Price
P01627421	2	- 901101 *FC132 -202235**	€ 1,54
P01727421A	2	901101 - *FC132202235-**	€ 1,67

» 27431

SPACER

Part Number	Qty.	Specifications	Price
P04427431A	1	AN (PA01-27-431) 890801 - 920401 *FC132200774-202686**	€ 6,77
PA0127431	1	920401 - *FC132202686-**	€ 7,05

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
P01627600B	1		€ 817,39

» 27604

BOLT

Part Number	Qty.	Specifications	Price
M05327605	2		€ 3,04

» 27609

PLATE,BAFFLE-DIFF CASING

Part Number	Qty.	Specifications	Price
M05527609	1

» 28890E

RUBBER,MOUNT.-DIFF.CASING

Part Number	Qty.	Specifications	Price
FB0128890C	2		€ 59,47

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450612	1		€ 2,32

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830F	1

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812A	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961260A	1		€ 2,80
