Mazda RX-7 FC 1985-11 Mazda Air Conditioner

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Body Dashboard > Air Conditioner

Search by part number:

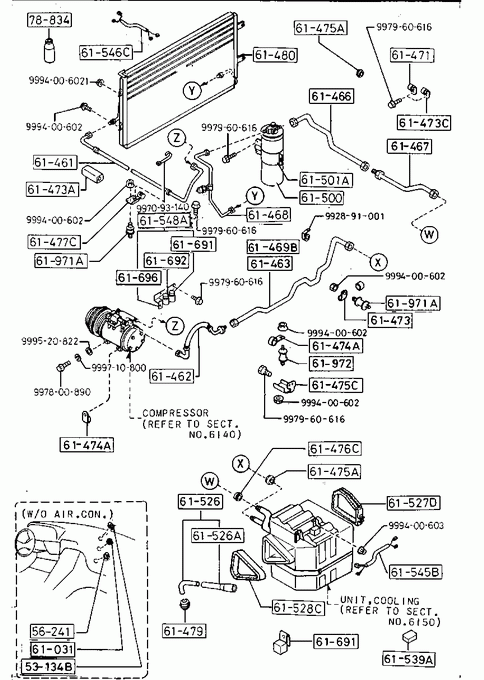

Air Conditioner

RUBBER,DUST SEAL

Part Number	Qty.	Specifications	Price
018753134	1	W/O AIR.CON.	€ 1,42

» 56241

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
011856241	1	W/O AIR.CON.	€ 1,37

» 61031

PLUG,HOLE

Part Number	Qty.	Specifications	Price
170861031	1	W/O AIR.CON.	€ 3,59

» 61461

HOSE,FLEXIBLE-HIGH

Part Number	Qty.	Specifications	Price
FB0161461	1		€ 86,84

» 61462

HOSE,FLEXIBLE-LOW

Part Number	Qty.	Specifications	Price
FB0161467A	1		€ 79,23

» 61463

PIPE NO.1,COOLER

Part Number	Qty.	Specifications	Price
FB0161468A	1	W/O TURBO	€ 84,75

» 61466

PIPE NO.4,COOLER

Part Number	Qty.	Specifications	Price
FB0161465	1	- 860211 FC1322 -101462
FB0161465A	1	860211 - FC1322101462-	€ 33,78

» 61467

PIPE NO.5,COOLER

Part Number	Qty.	Specifications	Price
FB0161466A	1	- 860211 FC1322 -101462
FB0161466B	1	AN (FB01-61-466C) 860211 - 860625 FC1322101462-102641
FB0161466C	1	860625 - FC1322102641-	€ 36,81

» 61468

PIPE NO.6,COOLER

Part Number	Qty.	Specifications	Price
F04461464	1	AN (FB01-61-464B) 860625 - 871201 FC1322102641-103714 FC1332 -103699
FB0161464A	1	AN (FB01-61-464B) - 860625 FC1322 -102641
FB0161464B	1	871201 - FC1322103714- FC1332103699-	€ 66,63

» 61469B

PIPE NO.7,COOLER

Part Number	Qty.	Specifications	Price
FB4461467C	1	TURBO

» 61471

CLIP,PIPE

Part Number	Qty.	Specifications	Price
FB0161471	1

» 61473

CLIP,PIPE

Part Number	Qty.	Specifications	Price
FB0161473A	1

» 61473A

PROTECTOR

Part Number	Qty.	Specifications	Price
FB0261472	2	- 861101 FC1322 -102801

» 61473C

CLIP

Part Number	Qty.	Specifications	Price
FB0261473	1

» 61474A

CLIP

Part Number	Qty.	Specifications	Price
FB0161474	2

» 61475A

GROMMET

Part Number	Qty.	Specifications	Price
856261475	2		€ 2,46

» 61475C

BRACKET

Part Number	Qty.	Specifications	Price
FB0161475A	1

» 61476C

GROMMET

Part Number	Qty.	Specifications	Price
856261476	1		€ 2,96

» 61477C

CLIP

Part Number	Qty.	Specifications	Price
FB0161477	1

» 61479

GROMMET

Part Number	Qty.	Specifications	Price
FB0161478	1	A (FB01-61-478A) - 860625 FC1322 -102641
FB0161478A	1	860625 - FC1322102641-

» 61480

CONDENSER

Part Number	Qty.	Specifications	Price
FB0161480A	1		€ 489,86

» 61500

TANK,LIQUID

Part Number	Qty.	Specifications	Price
857261510	1		€ 61,82

» 61501A

BRACKET,LIQUID TANK

Part Number	Qty.	Specifications	Price
FB0161501	1

» 61526

HOSE,DRAIN

Part Number	Qty.	Specifications	Price
FB016152X	1		€ 10,07

» 61526A

HOSE,DRAIN

Part Number	Qty.	Specifications	Price
FB0161526	1	A (FB01-61-52X) - 860625 FC1322 -102641
FB0161526A	1	860625 - FC1322102641-

» 61527D

RING,SEAL

Part Number	Qty.	Specifications	Price
FB0161527A	1

» 61528C

PLATE,SEAL

Part Number	Qty.	Specifications	Price
FB0161528	1

» 61539A

GASKET

Part Number	Qty.	Specifications	Price
FB4461548	1	TURBO

» 61545B

HARNESS,WIRE

Part Number	Qty.	Specifications	Price
F04461545A	1		€ 10,43

» 61546C

HARNESS,WIRE

Part Number	Qty.	Specifications	Price
FB0361546A	1	OPTION TURBO
FB3161546A	1	W/O TURBO

» 61548A

RELAY

Part Number	Qty.	Specifications	Price
FB0161690	1	TURBO
FB3161548	1	AN (FB31-61-690) W/O TURBO - 860201 FC1322 -101153
FB3161690	1	W/O TURBO 860201 - FC1322101153-	€ 18,79

» 61691

RELAY

Part Number	Qty.	Specifications	Price
FB0161691	2		€ 25,13

» 61692

RELAY,AIR CONDITIONER

Part Number	Qty.	Specifications	Price
FB0161692	1	TURBO

» 61696

BRACKET,RELAY-AIR CON.

Part Number	Qty.	Specifications	Price
FB0161695	1

» 61971A

RUBBER,INSULATOR

Part Number	Qty.	Specifications	Price
FB0161731	2		€ 8,09

» 61972

RUBBER,INSULATOR

Part Number	Qty.	Specifications	Price
FA5461973	1

» 78834

REFRIGERANT DRUM

Part Number	Qty.	Specifications	Price
020878834A	2	400G

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400602	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520822	1		€ 0,51

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992891001	1		€ 2,08

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093140	1		€ 3,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800890	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710800	1		€ 1,18
