Mazda RX-7 FC 1985-11 Mazda Fuel Tank

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Chassis Piping & Fuel Tank > Fuel Tank(w/o Turbo)

Search by part number:

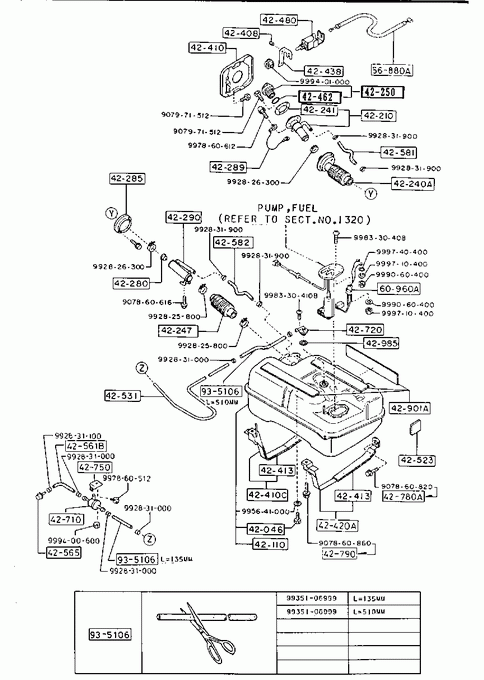

Fuel Tank(w/o Turbo)

» 42046

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
BC8842045	1		€ 2,25

» 42110

TANK,FUEL

Part Number	Qty.	Specifications	Price
FB0142110C	1	AN (FB01-42-110D) - 860901 FC1322 -102724	€ 406,95
FB7142110	1	AN (FB71-42-110A) 860901 - 880101 FC1322102724-103865
FB7142110A	1	A (FB71-42-110B) 880101 - 890113 FC1322103865-104898
FB7142110B	1	890113 - FC1322104898-	€ 406,95

» 42210

PIPE,FILLER

Part Number	Qty.	Specifications	Price
F04442210A	1	C (F044-42-210B) - 860501 FC1322 -102338
F04442210B	1	860501 - FC1322102338-	€ 43,81

» 42240A

HOSE,JOINT

Part Number	Qty.	Specifications	Price
FB0142240C	1	A (FB01-42-240D) - 860501 FC1322 -102338
FB0142240D	1	A (FB01-42-240E) 860501 - 870801 FC1322102338-103592
FB0142240E	1	AN (FB01-42-240F) 870801 - FC1322103592-

» 42241

GASKET,FILLER PIPE

Part Number	Qty.	Specifications	Price
086642366B	1		€ 2,91

» 42247

HOSE,JOINT-FUEL TANK SIDE

Part Number	Qty.	Specifications	Price
FB0142247A	1		€ 45,24

» 42250

CAP,FILLER

Part Number	Qty.	Specifications	Price
F04442250	1	A (F044-42-250A)	€ 21,03

» 42280

VALVE,NON RETURN

Part Number	Qty.	Specifications	Price
GB5342270	1		€ 7,92

» 42285

REINF.,JOINT HOSE-FUEL

Part Number	Qty.	Specifications	Price
FB0142285	1

» 42289

WIRE,EARTH-FILLER PIPE

Part Number	Qty.	Specifications	Price
FB0142289	1

» 42290

PIPE,FILLER NO.2

Part Number	Qty.	Specifications	Price
FB0142290	1

» 42408

STOPPER,FILLER LID

Part Number	Qty.	Specifications	Price
887170491	1		€ 0,90

» 42410

LID,FUEL FILLER

Part Number	Qty.	Specifications	Price
FB0142410B	1		€ 30,04

» 42410C

BAND(R),TANK FIX.

Part Number	Qty.	Specifications	Price
FB0142710	1	- 860901 FC1322 -102724	€ 16,75
FB7142710	1	860901 - FC1322102724-	€ 16,75

» 42413

SHEET,

Part Number	Qty.	Specifications	Price
FB0142715	2	- 860901 FC1322 -102724
FB7142715	2	860901 - FC1322102724-

» 42420A

BAND(L),TANK FIX.

Part Number	Qty.	Specifications	Price
FB0142720	1	- 860901 FC1322 -102724	€ 16,75
FB7142720	1	860901 - FC1322102724-

» 42438

SPRING,LIFT

Part Number	Qty.	Specifications	Price
FB0142451	1	- 870112 FC1322 -103061	€ 4,22
FB0142451A	1	AN (FB01-42-451B) 870112 - 870901 FC1322103061-103626
FB0142451B	1	AN (FB01-42-451C) 870901 - 871101 FC1322103626-103692	€ 4,22
FB0142451C	1	871101 - FC1322103692-	€ 4,30

» 42462

GASKET,CAP

Part Number	Qty.	Specifications	Price
BF6742252	1		€ 3,01

» 42480

OPENER,FILLER LID

Part Number	Qty.	Specifications	Price
FB0156890	1	AN (FB01-56-890A) 860101 - FC1322100787-	€ 17,49
G03056890B	1	A (FB01-56-890) - 860101 FC1322 -100787	€ 16,69

» 42523

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
853142762A	1		€ 1,36

» 42531

PIPE,EVAPORATION

Part Number	Qty.	Specifications	Price
FB0142531A	1	A (FB01-42-531B) - 881001 FC1322 -104691
FB0142531B	1	881001 - FC1322104691-

» 42561B

HOSE,EVAPORATION

Part Number	Qty.	Specifications	Price
FB3742561	1		€ 13,94

» 42565

PLUG,DRAIN-VENT. HOSE

Part Number	Qty.	Specifications	Price
FB0142565	1		€ 3,16

» 42581

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
FB0142245	1	- 860501 FC1322 -102338
FB0142245A	1	860501 - FC1322102338-	€ 13,61

» 42582

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
FB0142248	1		€ 13,61

» 42710

VALVE,CHECK

Part Number	Qty.	Specifications	Price
F04442910	1		€ 49,25

» 42720

VALVE,FUEL VAPOR.

Part Number	Qty.	Specifications	Price
FB0142980	1		€ 23,88

» 42750

BRACKET,CHECK VALVE

Part Number	Qty.	Specifications	Price
F04442920	1

» 42780A

SCREW'A',FIXING BAND

Part Number	Qty.	Specifications	Price
H26042780	2	860901 - FC1322102724-

» 42790

SCREW'B',FIXING BAND

Part Number	Qty.	Specifications	Price
H26042790	2	860901 - FC1322102724-	€ 4,74

» 42901A

INSULATOR

Part Number	Qty.	Specifications	Price
FB0142761	3		€ 7,69

» 42985

GASKET,VAPOR VALVE

Part Number	Qty.	Specifications	Price
FB0142985	1		€ 3,06

» 56880A

CABLE,F/LID OPENER

Part Number	Qty.	Specifications	Price
FB0156870B	1		€ 25,39

» 60960A

GAUGE,FUEL TANK

Part Number	Qty.	Specifications	Price
FB3160960B	1	- 860901 FC1322 -102724	€ 78,00
FB7160960	1	860901 - 890101 FC1322102724-104843	€ 77,66
FB7160960A	1	890101 - FC1322104843-	€ 77,66

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330408	1		€ 0,55

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330410B	1		€ 0,38

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907971512	1		€ 0,70

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860820	1		€ 2,68

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860860	1

» 90901

NUT

Part Number	Qty.	Specifications	Price
999060400	1		€ 0,40

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401000	1		€ 0,88

» 935106

HOSE

Part Number	Qty.	Specifications	Price
9935106999	2	L=1M CUT IT TO USE	€ 14,42

» 935106

HOSE

Part Number	Qty.	Specifications	Price
9935106999	2	L=1M CUT IT TO USE	€ 14,42

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860512	1		€ 0,79

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99211

WASHER,TOOTHED

Part Number	Qty.	Specifications	Price
999740400	1		€ 0,50

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992825800	1		€ 2,49

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992826300	1		€ 2,28

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831100	1		€ 0,80

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831900	1		€ 1,88

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641000	1		€ 2,00

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710400	1		€ 0,39

Fuel Tank(w/o Turbo)
