Front Axle 01/02 (-7A27) 02/02 (7A27-)

Front Axle |

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Chassis Axle Suspension & Steering & Brake > Front Axle

Search by part number:

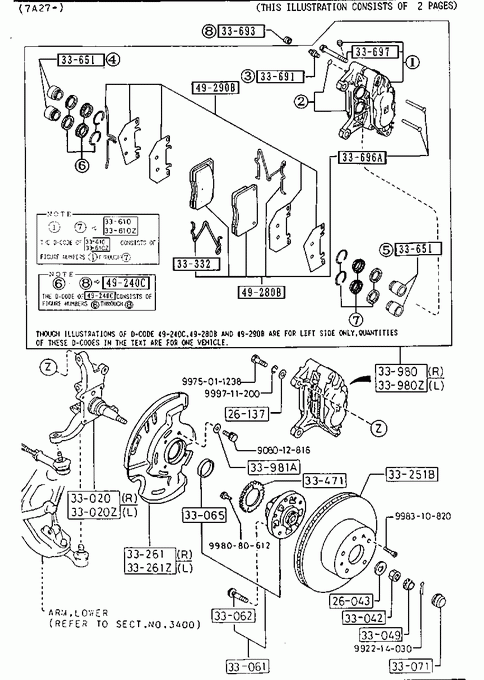

Front Axle(w/antilock Brake System>turbo)

01/02 (-7A27)
02/02 (7A27-)

WASHER,CLAW

Part Number	Qty.	Specifications	Price
101133043	2		€ 1,84

» 26137

WASHER,PLAIN-LOWER ARM

Part Number	Qty.	Specifications	Price
FB0126137	4	AN (FB05-26-137)	€ 0,99

» 33020

KNUCKLE(R),STEERING

Part Number	Qty.	Specifications	Price
F05133021B	1		€ 289,50

» 33020Z

KNUCKLE(L),STEERING

Part Number	Qty.	Specifications	Price
F05133031B	1		€ 457,75

» 33042

NUT

Part Number	Qty.	Specifications	Price
066233042	2		€ 2,55

» 33049

COVER,SET

Part Number	Qty.	Specifications	Price
066233049	2		€ 2,21

» 33061

HUB,WHEEL

Part Number	Qty.	Specifications	Price
FB0549060D	2	A (FB05-49-060E) - 890201 FC1332 -104890	€ 343,18
FB0549060E	2	5 HUB BOLT 890201 - FC1332104890-	€ 357,04

» 33062

BOLT,HUB

Part Number	Qty.	Specifications	Price
FB0526113A	10		€ 4,35

» 33065

SEAL,OIL-AXLE

Part Number	Qty.	Specifications	Price
FB0133065A	2		€ 11,90

» 33071

CAP,HUB

Part Number	Qty.	Specifications	Price
FB0133071A	2		€ 2,89

» 33251B

PLATE,HUB/DISK

Part Number	Qty.	Specifications	Price
FB0533251	2	AN (FB05-33-251A)	€ 66,47

» 33261

COVER(R),DUST

Part Number	Qty.	Specifications	Price
FB0533260B	1	A (FB05-33-260C)	€ 65,11

» 33261Z

COVER(L),DUST

Part Number	Qty.	Specifications	Price
FB0533270B	1	A (FB05-33-270C)	€ 65,11

» 33332

SPRING,PAD-FRT BRAKE

Part Number	Qty.	Specifications	Price
FB0533332	8	871104 - FC1332103693-	€ 4,45

» 33471

ROTOR,SENSOR-FRT A.B.S.

Part Number	Qty.	Specifications	Price
F04833471	2		€ 37,95

» 33610

BODY & PISTON(R),CALIPER

Part Number	Qty.	Specifications	Price
FB0533610	1	- 870702 FC1332 -103552
FB0533610A	1	870702 - 880301 FC1332103552-104039
FB0533610B	1	880301 - FC1332104039-	€ 226,03

» 33610Z

BODY & PISTON(L),CALIPER

Part Number	Qty.	Specifications	Price
FB0533710	1	- 870702 FC1332 -103552
FB0533710A	1	870702 - 880301 FC1332103552-104039
FB0533710B	1	880301 - FC1332104039-	€ 226,03

» 33651

PISTON,CALIPER-FRT

Part Number	Qty.	Specifications	Price
FB0533651	8	A (FB05-33-651A) - 880301 FC1332 -104039	€ 19,93
FB0533651A	8	880301 - FC1332104039-	€ 20,74

» 33691

SCREW,BLEEDER

Part Number	Qty.	Specifications	Price
FB0533691	2	AN (FB05-33-691A) - 870702 FC1332 -103552
FB0533691A	2	870702 - FC1332103552-

» 33693

CAP,RUBBER

Part Number	Qty.	Specifications	Price
FB0533693	2		€ 2,00

» 33696A

PIN,PAD-FRONT BRAKE

Part Number	Qty.	Specifications	Price
FB0533696	4	AN (FB05-33-696A) - 870702 FC1332 -103552
FB0533696A	4	A (FB05-33-696B) 870702 - 871027 FC1332103552-103684	€ 2,04
FB0533696B	4	871027 - FC1332103684-	€ 2,12

» 33697

BOLT,BRIDGE-FRT BRAKE

Part Number	Qty.	Specifications	Price
FB0533697	8

» 33980

CALIPER(R),FRT BRAKE

Part Number	Qty.	Specifications	Price
FB0533980	1	ASBESTOS - 870320 FC1332 -103385	€ 367,16
FB3433980	1	ASBESTOS 870320 - 870701 FC1332103385-103552	€ 267,24
FB7133980	1	NON ASBESTOS 870701 - 870702 FC1332103552-103552	€ 269,90
FB7133980A	1	NON ASBESTOS 870702 - 871027 FC1332103552-103684	€ 269,90
FB7133980B	1	NON ASBESTOS 871027 - 871104 FC1332103684-103693	€ 269,90
FB7133980C	1	NON ASBESTOS 871104 - 880301 FC1332103693-104039
FB7133980D	1	NON ASBESTOS 880301 - FC1332104039-	€ 269,90

» 33980Z

CALIPER(L),FRT BRAKE

Part Number	Qty.	Specifications	Price
FB0533990	1	ASBESTOS - 870320 FC1332 -103385	€ 367,16
FB3433990	1	ASBESTOS 870320 - 870701 FC1332103385-103552	€ 267,24
FB7133990	1	NON ASBESTOS 870701 - 870702 FC1332103552-103552	€ 269,90
FB7133990A	1	NON ASBESTOS 870702 - 871027 FC1332103552-103684	€ 269,90
FB7133990B	1	NON ASBESTOS 871027 - 871104 FC1332103684-103693	€ 269,90
FB7133990C	1	NON ASBESTOS 871104 - 880301 FC1332103693-104039
FB7133990D	1	NON ASBESTOS 880301 - FC1332104039-	€ 269,90

» 33981A

WASHER,PLAIN-DUST COVER

Part Number	Qty.	Specifications	Price
FB0133981	8

» 49240C

SEAL KIT,CALIPER-FRT

Part Number	Qty.	Specifications	Price
FB0549240	1		€ 35,93

» 49280B

PAD SUB SET,FRT CALIPER

Part Number	Qty.	Specifications	Price
FB0549280A	1	ASBESTOS - 870320 FC1332 -103385
FB3449280A	1	ASBESTOS 870320 - 870701 FC1332103385-103552
FB713328Z	1	NON ASBESTOS 870701 - 870702 FC1332103552-103552	€ 99,00
FB713328ZA	1	NON ASBESTOS 870702 - 871027 FC1332103552-103684	€ 99,00
FB713328ZB	1	NON ASBESTOS 871027 - 871104 FC1332103684-103693
FB713328ZC	1	NON ASBESTOS 871104 - FC1332103693-	€ 99,00

» 49290B

ATTACHMENT,PAD-FRONT

Part Number	Qty.	Specifications	Price
FB0549290	1	A (FB05-49-290A) - 870712 FC1332 -103589	€ 31,77
FB0549290A	1	A (FB05-49-290B) 870712 - 871027 FC1332103589-103684	€ 31,77
FB0549290B	1	871027 - FC1332103684-	€ 32,73

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998310820	1		€ 0,41

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9975011238	1		€ 2,67

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
908012816	1		€ 0,89

» 99221

PIN,SPLIT

Part Number	Qty.	Specifications	Price
992214030	1		€ 0,41

» 99808

BOLT,SOCKET

Part Number	Qty.	Specifications	Price
998080612	1		€ 2,04

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711200	1		€ 0,51

Front Axle(w/antilock Brake System>turbo)
