Mazda RX-7 FC 1985-11 Mazda Rear Differentials

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Chassis Axle Suspension & Steering & Brake > Rear Differentials(w/o Turbo)

Search by part number:

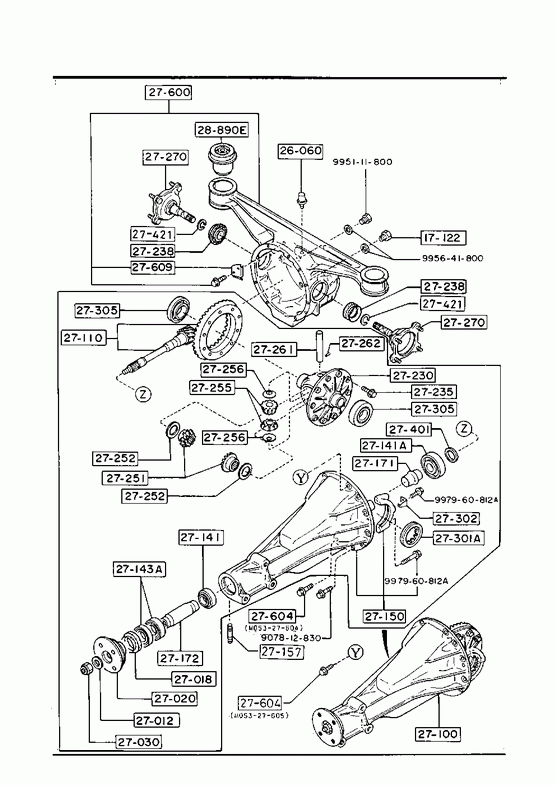

Rear Differentials(w/o Turbo)

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
M05527165	1		€ 9,09

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
M05527120B	1	- 860401 FC1322 -102137	€ 58,88
M05527120C	1	A (M055-27-120D) 860401 - 860801 FC1322102137-102696
M05527120D	1	A (M055-27-120E) 860801 - 870501 FC1322102696-103490
M05527120E	1	870501 - FC1322103490-

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
M06627100D	1	A (M066-27-100E)

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
M06627110	1	A (M066-27-110A) - 860401 FC1322 -102137
M06627110A	1	860401 - FC1322102137-	€ 416,02

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
075527210	1		€ 42,29

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
M02527210	1		€ 40,74

» 27143A

BEARING,BALL-DRIVE PINION

Part Number	Qty.	Specifications	Price
M05527143	2		€ 44,41

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M05527150B	1

» 27157

STUD,DIFF. CARRIER

Part Number	Qty.	Specifications	Price
P09027157	3

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
M03527171	1		€ 10,94

» 27172

COLLAR,LONG-DRIVING&DIFF.

Part Number	Qty.	Specifications	Price
M05527172A	1	C (M055-27-172B)

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
M02527231B	1	- 871201 FC1322 -103714	€ 141,74
M06927231	1	871201 - FC1322103714-	€ 127,38

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
F00327238	2	A (F003-27-238A) - 880601 FC1322 -104367	€ 6,33
M0A227238	2	880601 - FC1322104367-	€ 5,04

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
M02527251	2	- 871201 FC1322 -103714	€ 33,43
M06927251	2	AN (M069-27-251A) 871201 - FC1322103714-	€ 29,19

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
029027252	2	T=2MM	€ 3,29
029027253	2	T=2.1MM	€ 3,64
029027254	2	T=2.2MM	€ 3,33
029027256	2	T=2.05MM	€ 4,66
029027259	2	T=2.15MM	€ 3,33

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M02527255A	2	A (M025-27-255B)	€ 27,87

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M02527256	2	T=2.0MM	€ 3,36

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
M02527261A	1		€ 11,74

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27270

YOKE,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M05527270	2	- 890101 FC1322 -104843	€ 54,72
M05527270A	2	A (M055-27-270B) 890101 - FC1322104843-	€ 54,72

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
029027301	2		€ 4,85

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
029027302	2		€ 1,83

» 27305

BEARING

Part Number	Qty.	Specifications	Price
022127350	2		€ 40,08

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM	€ 6,29
022327402A	1	T=3.11MM	€ 5,13
022327403A	1	T=3.14MM	€ 6,29
022327404A	1	T=3.17MM	€ 6,92
022327405A	1	T=3.2MM	€ 6,09
022327406A	1	T=3.23MM	€ 6,92
022327407A	1	T=3.26MM	€ 5,60
022327408A	1	T=3.29MM	€ 6,78
022327409A	1	T=3.32MM	€ 5,60
022327411A	1	T=3.35MM	€ 6,92
022327412A	1	T=3.38MM	€ 5,60
022327413A	1	T=3.41MM	€ 6,78
022327414A	1	T=3.44MM	€ 5,60
022327415A	1	T=3.47MM	€ 5,69

» 27421

CLIP

Part Number	Qty.	Specifications	Price
M00527421	2		€ 1,52

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M05527600B	1	A (M055-27-600C) - 860401 FC1322 -102137
M05527600C	1	AN (M0A1-27-600) 860401 - FC1322102137-

» 27604

BOLT

Part Number	Qty.	Specifications	Price
M05327604	1		€ 4,14
M05327605	1		€ 3,04

» 27609

PLATE,BAFFLE-DIFF CASING

Part Number	Qty.	Specifications	Price
M05527609	1

» 28890E

RUBBER,MOUNT.-DIFF.CASING

Part Number	Qty.	Specifications	Price
FB0128890B	2	AN (FB01-28-890C) - 870821 FC1322 -103617	€ 58,30
FB0128890C	2	870821 - FC1322103617-	€ 59,47

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830	1		€ 2,06

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812A	1		€ 1,24

Rear Differentials(w/o Turbo)
