Mazda RX-7 FC 1985-11 Mazda Engine Electrical System

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Rotary-engine Supplement > Engine Electrical System(turbo)

Search by part number:

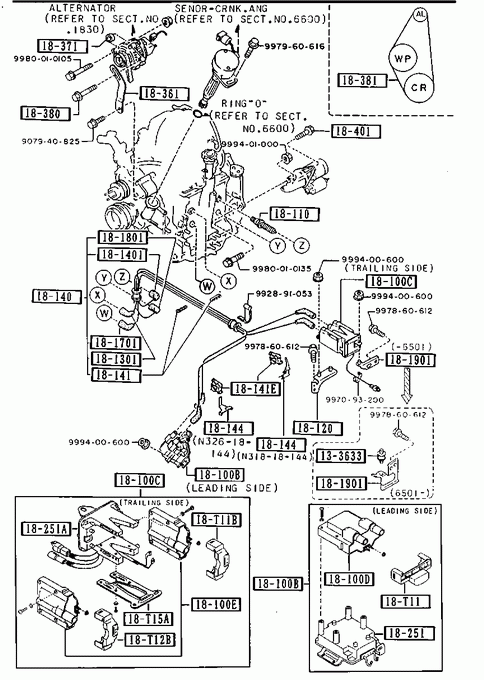

Engine Electrical System(turbo)

RUBBER,MOUNTING-IG.COIL

Part Number	Qty.	Specifications	Price
N32713363	1

» 18100B

COIL & IGNITER,LEADING

Part Number	Qty.	Specifications	Price
N32718100	1	DENSO	€ 569,01

» 18100C

COIL & IGNITER,TRAILING

Part Number	Qty.	Specifications	Price
N32618100B	1	DENSO	€ 984,50

» 18100D

COIL,IGNITION-LEADING

Part Number	Qty.	Specifications	Price
N33918100	1	DENSO	€ 250,39

» 18100E

COIL,IGNITION-TRAILING

Part Number	Qty.	Specifications	Price
N33818100	2	DENSO	€ 159,14

» 18110

PLUG,SPARK

Part Number	Qty.	Specifications	Price
N31818110	4	SD11A NGK - 861218 FC1332 -102999
N33318110	4	SD11A NGK PINK 861218 - 871015 FC1332102999-103673	€ 15,17
N33818110	4	SD11A-T NGK 871015 - FC1332103673-	€ 15,63

» 18120

BRACKET,IG.COIL

Part Number	Qty.	Specifications	Price
N32618105	1

» 181301

CORD,HIGH TENSION (T-1)

Part Number	Qty.	Specifications	Price
N31818160B	1		€ 24,76

» 18140

CORD SET,HI.TENSION

Part Number	Qty.	Specifications	Price
N31818140C	1		€ 71,63

» 181401

CORD,HIGH TENSION (T-2)

Part Number	Qty.	Specifications	Price
N31818190B	1		€ 21,35

» 18141

SUPPORTER

Part Number	Qty.	Specifications	Price
N31818141	3

» 18141E

SUPPORTER,CORD

Part Number	Qty.	Specifications	Price
N32618141	2	- 881205 FC1332 -104771
N32618141A	2	881205 - FC1332104771-

» 18144

BRACKET,SUPPORT-H.T. CORD

Part Number	Qty.	Specifications	Price
N31818144	1
N32618144	1

» 181701

CORD,HIGH TENSION (L-1)

Part Number	Qty.	Specifications	Price
N31818170B	1		€ 19,76

» 181801

CORD,HIGH TENSION (L-2)

Part Number	Qty.	Specifications	Price
N31818180B	1		€ 20,16

» 181901

BRKT,IGNITION COIL

Part Number	Qty.	Specifications	Price
N32618115A	1

» 18251

IGNITER,IG.COIL-LEADING

Part Number	Qty.	Specifications	Price
N32718251	1		€ 321,17

» 18251A

IGNITER,IG.COIL-TRALING

Part Number	Qty.	Specifications	Price
N32618251A	1		€ 765,15

» 18361

STRAP,ALTERNATOR

Part Number	Qty.	Specifications	Price
N32618361	1	A (N326-18-361A)

» 18371

BRACKET,ALTERNATOR

Part Number	Qty.	Specifications	Price
N24518311B	1		€ 3,54

» 18380

BOLT,ALTERNATOR

Part Number	Qty.	Specifications	Price
N32618397	1		€ 2,05

» 18381

BELT'V'

Part Number	Qty.	Specifications	Price
887118381	1	L=800MM	€ 8,95

» 18401

BOLT,STARTER

Part Number	Qty.	Specifications	Price
N32718401	1		€ 2,46

» 18T11

COVER,IG.COIL-LEADING

Part Number	Qty.	Specifications	Price
N32718T11	1

» 18T11B

COVER,IG.COIL-T-1

Part Number	Qty.	Specifications	Price
N32618T11	1		€ 11,52

» 18T12B

COVER,IG.COIL-T-2

Part Number	Qty.	Specifications	Price
N32618T12	1

» 18T15A

BRACKET,IG.COIL-TRAILING

Part Number	Qty.	Specifications	Price
N32618T15	1

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907940825	1		€ 1,53

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401000	1		€ 0,88

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992891053	1		€ 2,18

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093200	1		€ 2,33

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
9980010105	1		€ 2,78

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
9980010135	1		€ 3,93

Engine Electrical System(turbo)
