Mazda RX-7 FC 1985-11 Mazda Engine Electrical System

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Rotary-engine Supplement > Engine Electrical System(w/o Turbo)

Search by part number:

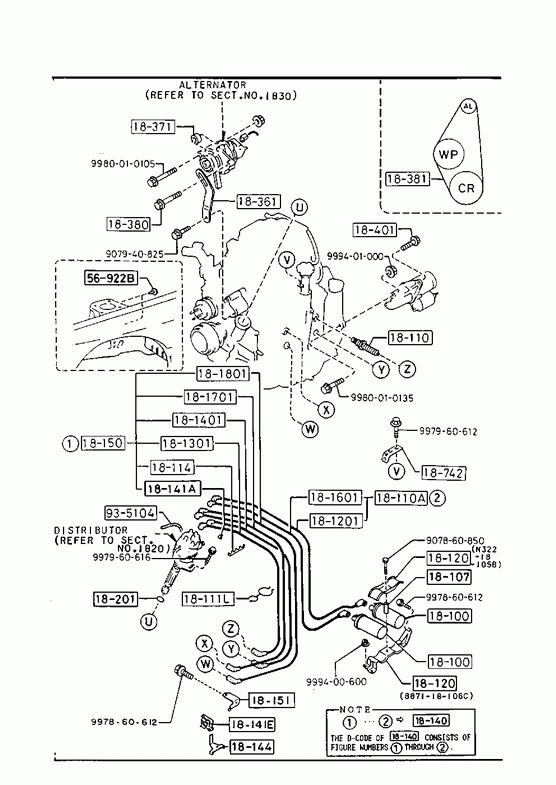

Engine Electrical System(w/o Turbo)
» 18100 COIL,IGNITION

Part Number Qty. Specifications Price
N22518100 2
€ 73,03

» 18107 PIPE

Part Number Qty. Specifications Price
824518107 1

» 18110 PLUG,SPARK

Part Number Qty. Specifications Price
834418600 4 BR9ET NGK
€ 8,51
834518600 4 DENSO
€ 8,26
N32218110 4 BR10ET NGK
€ 8,51
N32318110 4 W29EBR ND

» 18110A CORD,HIGH TENSION

Part Number Qty. Specifications Price
N32218150 1 - 860101
FC1322 -100787 € 24,78
N32218150A 1 860101 -
FC1322100787- € 25,53

» 18111L CLIP

Part Number Qty. Specifications Price
N24918111 1 - 860101
FC1322 -100787

» 18114 SUPPORTER

Part Number Qty. Specifications Price
082018114 2

» 18120 BRACKET,IG.COIL

Part Number Qty. Specifications Price
887118106C 1

N32218105A 1 A (N322-18-105B)
- 860301
FC1322 -101928
N32218105B 1 860301 -
FC1322101928- € 10,48

» 181201 CORD,HIGH TENSION-T. SIDE

Part Number Qty. Specifications Price
N32218120 1
€ 14,78

» 181301 CORD,HIGH TENSION (T-1)

Part Number Qty. Specifications Price
N22518130A 1
€ 10,24

» 18140 CORD SET,HI.TENSION

Part Number Qty. Specifications Price
N3221815X 1
€ 108,27

» 181401 CORD,HIGH TENSION (T-2)

Part Number Qty. Specifications Price
N24118140 1
€ 9,24

» 18141A SUPPORTER

Part Number Qty. Specifications Price
E33118141 4
€ 1,57

» 18141E SUPPORTER,CORD

Part Number Qty. Specifications Price
N32618141 1 - 881205
FC1322 -104793
N32618141A 1 881205 -
FC1322104793-

» 18144 BRACKET,SUPPORT-H.T. CORD

Part Number Qty. Specifications Price
N32618144 1

» 18150 CORD,HIGH TENSION

Part Number Qty. Specifications Price
N24118150 1
€ 40,04

» 18151 BRACKET,HT.CORD SUPPORTER

Part Number Qty. Specifications Price
N32618151 1

» 181601 CORD,HIGH TENSION-L. SIDE

Part Number Qty. Specifications Price
N32218130 1
€ 15,08

» 181701 CORD,HIGH TENSION (L-1)

Part Number Qty. Specifications Price
N22518170A 1
€ 9,24

» 181801 CORD,HIGH TENSION (L-2)

Part Number Qty. Specifications Price
N24118180 1
€ 9,14

» 18201 RING,'O'

Part Number Qty. Specifications Price
9954103501 1
€ 2,53

» 18361 STRAP,ALTERNATOR

Part Number Qty. Specifications Price
N32618361 1 A (N326-18-361A)

» 18371 BRACKET,ALTERNATOR

Part Number Qty. Specifications Price
N24518311B 1
€ 3,54

» 18380 BOLT,ALTERNATOR

Part Number Qty. Specifications Price
N32618397 1
€ 2,05

» 18381 BELT'V'

Part Number Qty. Specifications Price
887118381 1 L=800MM
€ 8,95

» 18401 BOLT,STARTER

Part Number Qty. Specifications Price
N32718401 1
€ 2,46

» 18742 BRACKET

Part Number Qty. Specifications Price
N32718141 1

» 56922B CLIP

Part Number Qty. Specifications Price
H04356951 2
€ 1,32

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860850 1
€ 2,30

» 90794 BOLT & WASHER,FLANGE

Part Number Qty. Specifications Price
907940825 1
€ 1,53

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400600 1
€ 1,24

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999401000 1
€ 0,88

» 935104 HOSE

Part Number Qty. Specifications Price
9935104130 1 L=13CM

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860612 1
€ 1,58

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612 1
€ 0,69

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
9980010105 1
€ 2,78

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
9980010135 1
€ 3,93

Part Number	Qty.	Specifications	Price
834418600	4	BR9ET NGK	€ 8,51
834518600	4	DENSO	€ 8,26
N32218110	4	BR10ET NGK	€ 8,51
N32318110	4	W29EBR ND

Part Number	Qty.	Specifications	Price
N32218150	1	- 860101 FC1322 -100787	€ 24,78
N32218150A	1	860101 - FC1322100787-	€ 25,53

Part Number	Qty.	Specifications	Price
887118106C	1
N32218105A	1	A (N322-18-105B) - 860301 FC1322 -101928
N32218105B	1	860301 - FC1322101928-	€ 10,48

Part Number	Qty.	Specifications	Price
N32618141	1	- 881205 FC1322 -104793
N32618141A	1	881205 - FC1322104793-

Engine Electrical System(w/o Turbo)
